MTL4514 MTL Safety Barriers Eaton Isolator

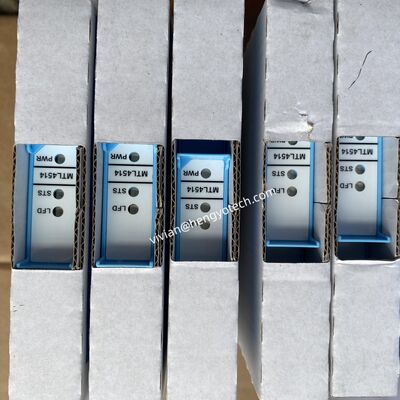

Large Image : MTL4514 MTL Safety Barriers Eaton Isolator

Product Details:

Place of Origin:	England
Brand Name:	EATON
Model Number:	MTL4514

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In Stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL4514 MTL Safety Barriers Eaton Isolator

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Eaton MTL safety barrier

MTL4514 isolator barrier

intrinsic safety barrier isolator

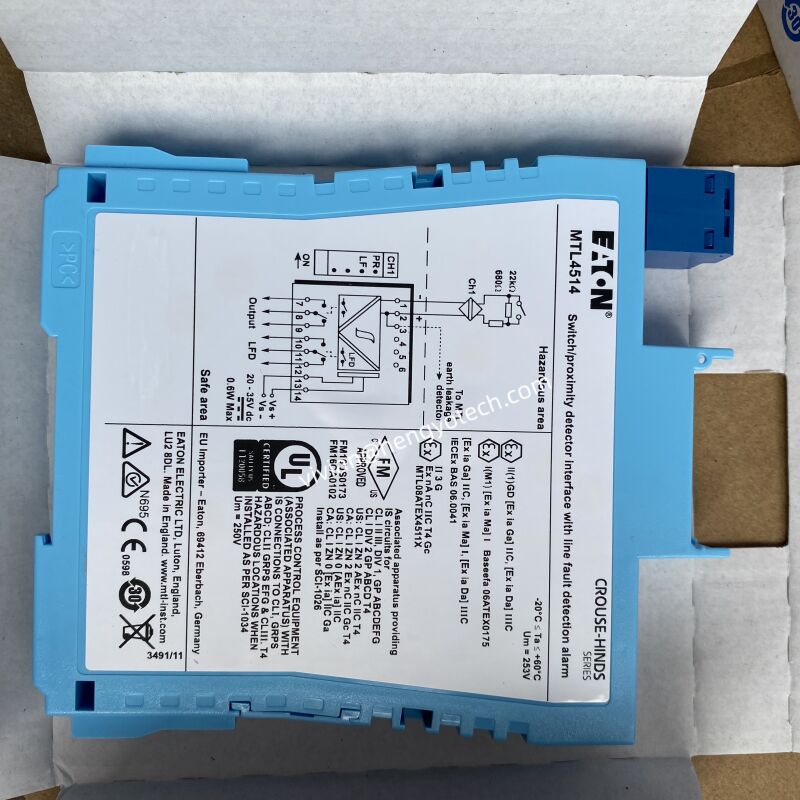

Eaton Crouse-Hinds series MTL4500 isolator, 1 channel, Digital input, 20-35 Vdc, 0.6W, 25mA, Relay: Contact (Zone 2): 10W, 0.5A, 35 Vdc, Phase reversal, LED: Green=power, Yellow=status, Red=LFD, Single-pole relay w/ changeover contacts

Product Name	Eaton Crouse-Hinds series MTL4500 isolator
Catalog Number	MTL4514 - FSM ASSESSED
EAN	3066227675920
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Isolator

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IEC IECEx/ATEX
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2 and SIL3

Product specifications

Signal Type	Digital input
Number of Channels	1
Mounting Method	MTL4500 range of backplanes
Power Dissipation	0.6W at 24V
Electrical Specifications	Relay characteristics: Contact rating (Zone 2): 10W, 0.5A, 35 Vdc
Hysteresis	200µA (650Ω) nominal
Response Time	10ms maximum
Line Fault Detection	User-selectable via switches on the side of the unit
Phase Reversal	Yes
Galvanic Isolation	50V between safe-area circuits and power supply
Special features	Channel: single-pole relay with changeover contacts
Type	Switch/proximity detector interface
