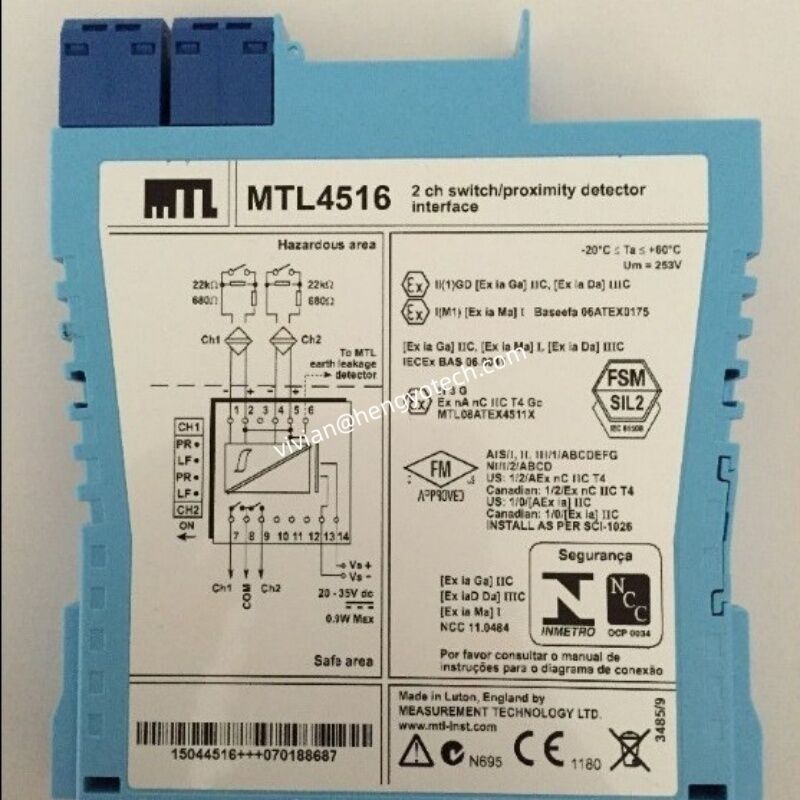

Eaton Safety Barriers Isolators MTL4516

Large Image : Eaton Safety Barriers Isolators MTL4516

Product Details:

Place of Origin:	England
Brand Name:	Eaton
Model Number:	MTL4516

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Eaton Safety Barriers Isolators MTL4516

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Eaton intrinsic safety barrier

MTL4516 safety isolator

Eaton MTL4516 safety barrier

Eaton Crouse-Hinds series MTL4500 isolator, 2 channel, Digital input, 20-35 Vdc power supply, 0.84W, 35mA, 7-9 Vdc sensor, LED indication: Green = power, Yellow = status, Red = LFD, Two single-pole relays with changeover contacts

Product Name	Eaton Crouse-Hinds series MTL4500 isolator
Catalog Number	MTL4516
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Isolator

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX IEC
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2 and SIL3

Product specifications

Signal Type	Digital input
Number of Channels	2
Mounting Method	MTL4500 range of backplanes
Power Dissipation	0.84W at 24V
Hysteresis	200µA (650Ω) nominal
Response Time	10ms maximum
Line Fault Detection	User-selectable via switches on the side of the unit
Galvanic Isolation	50V between safe-area circuits and power supply
Special features	Two single-pole relays with changeover contacts
Type	Switch/proximity detector interface
