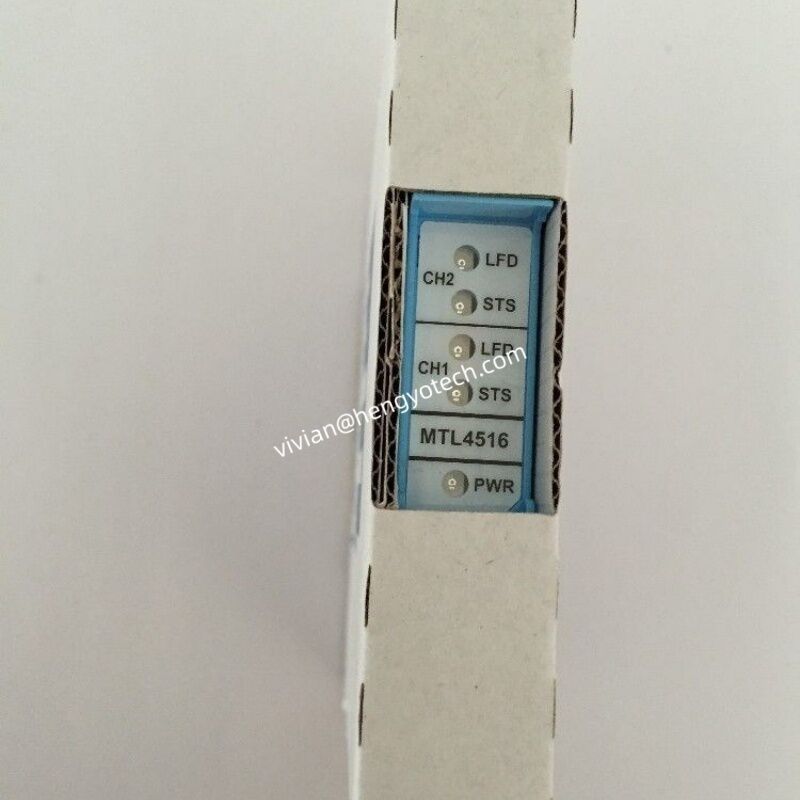

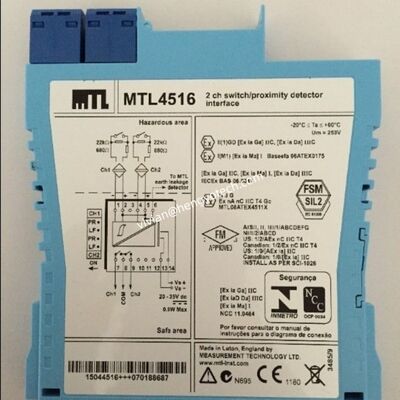

MTL Safety Barriers Isolators MTL4516C

Large Image : MTL Safety Barriers Isolators MTL4516C

Product Details:

Place of Origin:	England
Brand Name:	EATON
Model Number:	MTL4516C

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL Safety Barriers Isolators MTL4516C

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

MTL4516C intrinsic safety barrier

MTL safety barrier isolator

intrinsic safety barrier with warranty

Eaton Crouse-Hinds series MTL4500 isolator, 2 channel, Digital input, 20-35 Vdc, 0.84W, 35mA, Relay: Contact (Zone 2): 10W, 0.5A, 35 Vdc, LED: Green = power, Yellow = status, Red = LFD, Two single-pole relays with changeover contacts

Product Name	Eaton Crouse-Hinds series MTL4500 isolator
Catalog Number	MTL4516C - FSM ASSESSED
EAN	3066227675918
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Isolator

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX IEC
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2 and SIL3

Product specifications

Signal Type	Digital input
Number of Channels	2
Mounting Method	MTL4500 range of backplanes
Power Dissipation	0.84W at 24V
Electrical Specifications	Relay characteristics: Contact rating (Zone 2): 10W, 0.5A, 35 Vdc
Hysteresis	200µA (650Ω) nominal
Response Time	10ms maximum
Line Fault Detection	User-selectable via switches on the side of the unit
Galvanic Isolation	50V between safe-area circuits and power supply
Special features	Two single-pole relays with changeover contacts
Type	Switch/proximity detector interface
