MTL4521 Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver 1 channel Digital output 20-35 Vdc 1.4W at 24V dissipation 90mA at 24V current consumption LED indication

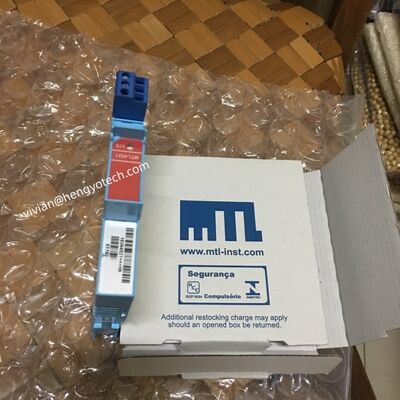

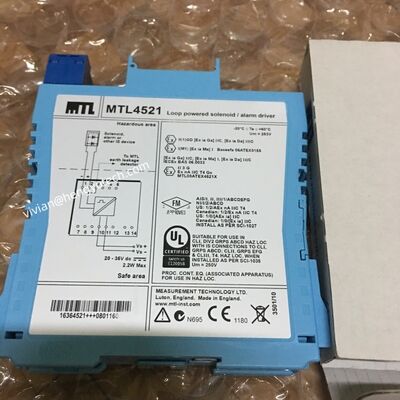

Large Image : MTL4521 Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver 1 channel Digital output 20-35 Vdc 1.4W at 24V dissipation 90mA at 24V current consumption LED indication

Product Details:

Place of Origin:	England
Brand Name:	Eaton
Model Number:	MTL4521

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL4521 Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver 1 channel Digital output 20-35 Vdc 1.4W at 24V dissipation 90mA at 24V current consumption LED indication

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Eaton MTL4500 solenoid driver

MTL4521 alarm driver 24V

intrinsic safety barrier digital output

Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver, 1 channel, Digital output, 20-35 Vdc, 1.4W at 24V dissipation, 90mA at 24V current consumption, LED indication: Yellow = status, Loop-powered, IIC, 13.6V at 48mA min. output voltage

Product Name	Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver
Catalog Number	MTL4521 - FSM ASSESSED
EAN	3066227675916
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Solenoid/alarm driver

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IEC IECEx/ATEX
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL1 and SIL3

Product specifications

Signal Type	Digital output
Number of Channels	1
Mounting Method	MTL4500 range of backplanes
Power Dissipation	1.4W at 24V
Response Time	Output within 10% of final value within 100ms
Ripple	<0.5% of maximum output, peak-to-peak
Galvanic Isolation	50V between safe-area circuits and power supply
Type	Loop-powered, IIC
