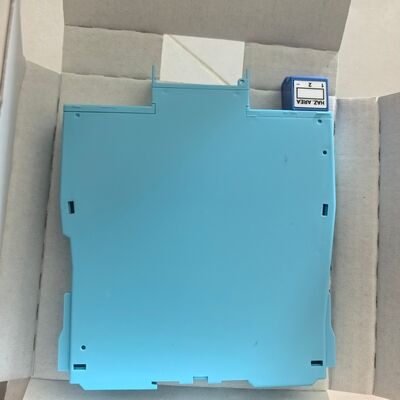

MTL4523 Eaton Safety Barriers

Large Image : MTL4523 Eaton Safety Barriers

Product Details:

Place of Origin:	England
Brand Name:	Eaton
Model Number:	MTL4523

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL4523 Eaton Safety Barriers

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Eaton intrinsic safety barrier

MTL4523 safety barrier

industrial safety barrier with warranty

Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver, 1 channel, Digital output, 50mA, 20-35 Vdc, 1.2W dissipation, 100mA at 24 Vdc current consumption, LED indication: Green = power, Yellow = status, Red = LFD, IIC

Product Name	Eaton Crouse-Hinds series MTL4500 solenoid/alarm driver
Catalog Number	MTL4523 - FSM ASSESSED
EAN	3066227675915
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Solenoid/alarm driver

Certifications and compliances

Area classification	Hazardous/Classified Locations
Standards type	IEC IECEx/ATEX
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2 and SIL3

Product specifications

Signal Type	Digital output
Number of Channels	1
Mounting Method	MTL4500 range of backplanes
Power Dissipation	1.2W with typical solenoid valve, output on 2.0W worst case
Response Time	Output within 10% of final value within 100ms
Line Fault Detection	Open or short circuit in field cabling de-energises solid state line fault signal
Ripple	<0.5% of maximum output, peak-to-peak
Galvanic Isolation	50V between safe-area circuits and power supply
Type	IIC
