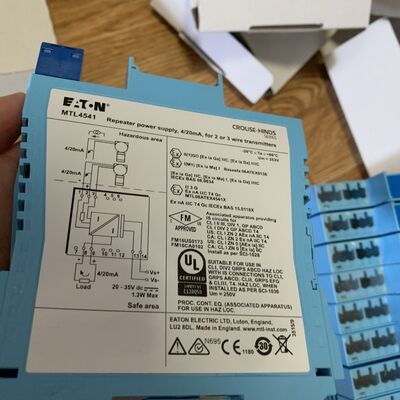

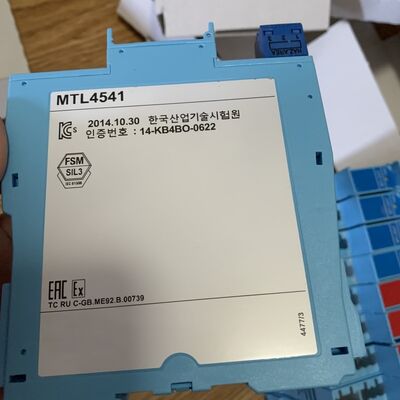

Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas

Large Image : Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas

Product Details:

Place of Origin:	England
Brand Name:	Eaton
Model Number:	MTL4541A

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Eaton MTL4541A Intrinsic Safety Barrier with HART Communication and 4-20mA Signal for Zone 0 Hazardous Areas

Description

Condition:

Eaton Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

HART Communication Intrinsic Safety Barrier

4-20mA Signal Current Repeater

Zone 0 Hazardous Area MTL4500 Barrier

MTL4541A Eaton Safety Barrier

The MTLx541A provides an input for separately powered 4/20mA transmitters and also allows bi-directional transmission of HART communication signals superimposed on the 4/20mA loop current. Alternatively, the MTLx541AS acts as a current sink for a safe-area connection rather than driving a current into the load.

Product Information

Product Name	Eaton Crouse-Hinds series MTL4500 current repeater
Catalog Number	MTL4541A
EAN	3066227675907
Product Length/Depth	104.8 mm
Product Height	121.8 mm
Product Width	15.8 mm
Product Weight	140 g
Product Type	Current repeater

Certifications and Compliances

Area classification	Hazardous/Classified Locations
Standards type	IEC
IECEx/ATEX hazardous rating	Zone 0
EMC	EN61326
Safety Integrity Level According to IEC61508	SIL2

Technical Specifications

Signal Type	Analogue input
Number of Channels	1
Mounting Method	MTL4500 range of backplanes
Power Dissipation	0.8W at 24 Vdc
Signal Range	4-20mA
Response Time	Settles within 200µA of final value after 20ms
Communication Supported	HART
Transfer Accuracy	Better than 20µA
Temperature Drift	<1µA/°C
Ripple	<50µA peak-to-peak up to 80 kHz
Galvanic Isolation	50V between safe-area circuits and power supply
Type	Passive i/p for HART transmitters

Key Features

Input for separately powered 4/20mA transmitters
Bi-directional HART communication signal transmission
Current sink capability for safe-area connections
High precision transfer accuracy better than 20µA
Certified for hazardous locations (Zone 0)
SIL2 safety integrity level compliance
