Pepperl Fuchs Solenoid Driver KFD2-SL2-EX1.B

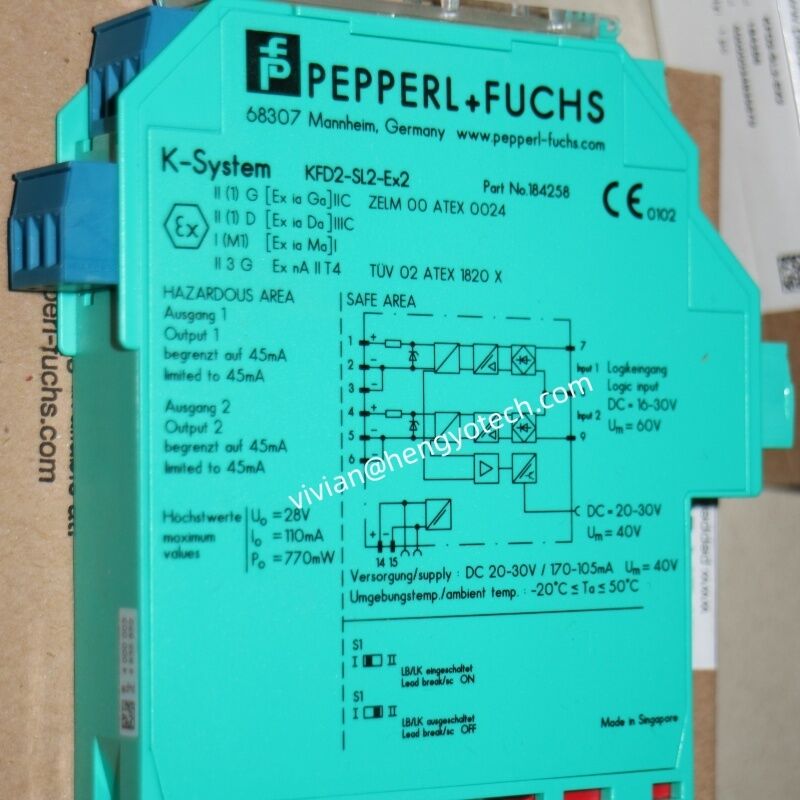

Solenoid Driver KFD2-SL2-Ex2

< 2-channel isolated barrier

< 24 V DC supply (Power Rail)

< Output 45 mA at 11.7 V DC

< Logic input, non-polarized

< Line fault detection (LFD)

< Up to SIL 2 acc. to IEC/EN 61508

Function

This isolated barrier is used for intrinsic safety applications.

The device supplies power to solenoids, LEDs and audible alarms located in a hazardous area.

It is controlled via logic signals. The inputs have two defined states: 1-Signal = 16 V DC ... 30 V DC, 0-Signal = 0 V DC ... 5 V DC. The current consumption of the input is about 3 mA.

At full load, 11.7 V at 45 mA is available for the hazardous area application.

If the field impedance is > 10 kΩ for lead breakage or < 50 Ω for short circuits a line fault is detected.

A fault is signalized by LEDs and a separate collective error message output.
