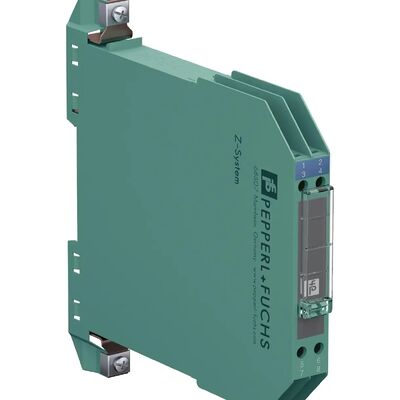

Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier

Large Image : Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier

Product Details:

Place of Origin:	Germany
Brand Name:	PEPPERL+FUCHS
Model Number:	Z966

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl Fuchs Z966 2-channel AC Version Zener Barrier DIN Rail Mountable Intrinsic Safety Barrier

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

2-channel Zener Barrier

DIN rail mountable Intrinsic Safety Barrier

AC version Pepperl Fuchs Z966

Pepperl Fuchs Zener Barrier Z966

Product Overview

The Zener Barrier Z966 is a 2-channel AC version safety barrier designed for industrial applications requiring intrinsic safety protection in hazardous areas.

Technical Specifications

Channels 2-channel

Version AC version

Working Voltage 10 V at 10 µA

Series Resistance max. 166 Ω

Fuse Rating 50 mA

Mounting DIN rail mountable

Function & Operation

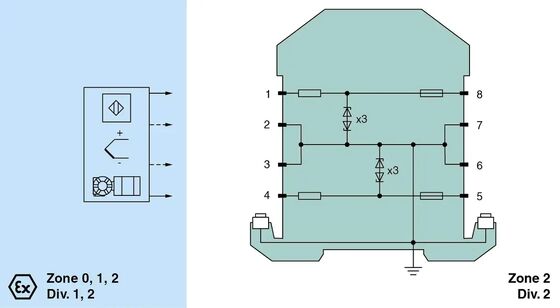

The Zener Barrier prevents the transfer of unacceptably high energy from safe areas into hazardous areas. Zener diodes in the barrier are connected in reverse direction, with the breakdown voltage not exceeded during normal operation. If voltage exceeds safe limits due to faults in the safe area, the diodes conduct and cause the fuse to blow, ensuring safety.

Key Features

Alternating polarities with interconnected zener diodes
One side grounded for enhanced safety
Compatible with both alternating voltage and direct voltage signals
Intrinsic safety parameters vary based on application requirements

Application Note: For detailed intrinsic safety parameters and application examples, refer to the Zener Barrier certificate and system description documentation.
