Pepperl Fuchs K-System SMART Current Driver KCD2-SCD-1.SP Intrinsic Safety Barrier with 24 V DC Supply HART I/P and SIL 2 Compliance

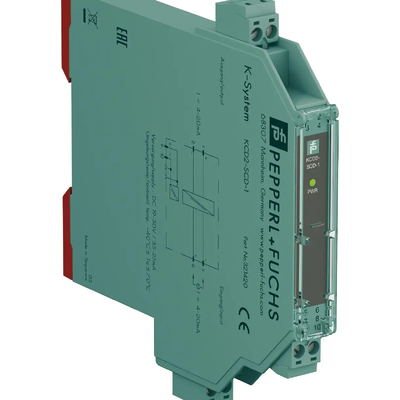

Large Image : Pepperl Fuchs K-System SMART Current Driver KCD2-SCD-1.SP Intrinsic Safety Barrier with 24 V DC Supply HART I/P and SIL 2 Compliance

Product Details:

Place of Origin:	Singapore
Brand Name:	Pepperl+Fuchs
Model Number:	KCD2-SCD-1.SP

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl Fuchs K-System SMART Current Driver KCD2-SCD-1.SP Intrinsic Safety Barrier with 24 V DC Supply HART I/P and SIL 2 Compliance

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

24 V DC supply Intrinsic Safety Barrier

HART I/P and valve positioner Isolated Barrier

SIL 2 acc. to IEC/EN 61508 SMART Current Driver

Pepperl Fuchs Isolated Barriers of the K-System SMART Current Driver KCD2-SCD-1.SP

Pepperl+Fuchs intrinsic safety barriers limit energy supplied to circuits and protect hazardous areas from excess energy. By limiting energy to safe levels, these circuits prevent ignition of potentially explosive atmospheres.

Beyond explosion protection, isolated barriers provide galvanic isolation to protect measurement and control circuits from signal distortion and dangerous surges. These interface modules also convert, standardize, and split measurement and control signals.

K-System Isolated Barriers

The Pepperl+Fuchs K-System delivers reliable and economical signal transmission between field devices and control systems. From single isolating modules to large-scale system integration, the K-System offers application-oriented solutions for diverse requirements.

Key System Features

Comprehensive Product Portfolio - Extensive range of intrinsic safety interface modules for various signals and applications
Power Rail Technology - DIN rail insert that simplifies mounting, reduces wiring costs, and enables easy system expansion
Power Feed Modules - Built-in fuse protection and collective error messaging via potential-free contacts
International Safety Standards - SIL ratings available at no extra cost
Easy Configuration - Simple setup and documentation using PACTware software tool

SMART Current Driver KCD2-SCD-1.SP Specifications

• 1-channel signal conditioner

• 24 V DC supply (Power Rail)

• Current output up to 900 Ω load

• HART I/P and valve positioner

• Lead breakage monitoring

• Housing width 12.5 mm

• Connection via spring terminals with push-in connection technology

• Up to SIL 2 acc. to IEC/EN 61508

Function

This signal conditioner provides galvanic isolation between field circuits and control circuits. The device repeats the input signal from a control system to drive SMART I/P converters, electrical valves, and positioners located on the field side.

Digital signals are superimposed on the analog values at the field side or control side and are transferred bi-directionally. The current is transferred via a DC/DC converter and repeated at the output terminals.

An open field circuit presents a high impedance to the control side to allow alarm conditions to be monitored by the control system. Test sockets for the connection of HART communicators are integrated into the terminals of the device.
