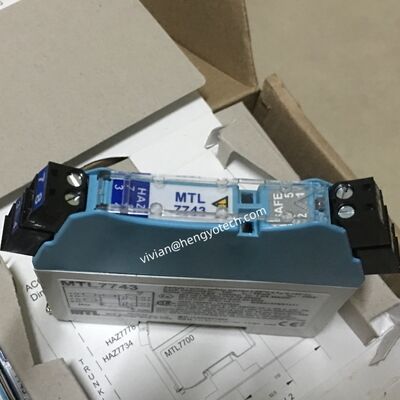

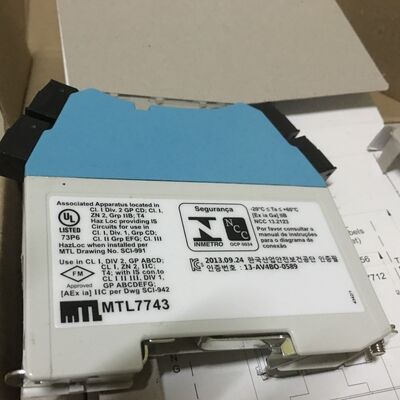

Eaton MTL MTL7743 Zener Barrier with Overvoltage Protection

The MTL7743 is a high-performance 2-channel shunt-diode safety barrier (Zener barrier) from Eaton's Crouse-Hinds series MTL7700 range, specifically engineered for switch and proximity sensor (NAMUR) inputs requiring intrinsic safety protection in hazardous areas.

This passive device limits the voltage and current that can reach a hazardous area under fault conditions, preventing ignition of flammable atmospheres. With a safety description of 10V, 19mA, the MTL7743 is the ideal solution for protecting NAMUR proximity sensors, mechanical switches, and dry contact inputs in Zone 0, 1, and 2 hazardous locations (gas groups IIC, IIB, IIA).

• 2-Channel Efficiency: Two independent intrinsically safe channels in a single compact housing
• NAMUR Input Compatibility: Designed for proximity detectors and mechanical switch inputs
• SPST Relay Outputs: Each channel provides relay contact for switching external loads
• 10V, 19mA Safety Description: Provides safe voltage and current limiting
• Fast Response Time: < 10ms suitable for most industrial switching applications
• Removable Terminals: Unique feature for easy cabling and maintenance
• Bussed Power Capability: Integrated power distribution reduces cabling requirements
• Dual-Stage Protection: Two stages of voltage limitation for maximum reliability
• Global Approvals: ATEX, IECEx, UL, CSA certifications for international installation

• Oil & Gas: Proximity sensor monitoring for valve position feedback
• Chemical Processing: Switch input isolation for emergency shutdown systems
• Pharmaceutical: Digital input protection for batch processing equipment
• Factory Automation: NAMUR proximity detector interfacing for conveyor systems
• Power Generation: Turbine monitoring systems with switch input isolation
• Marine & Offshore: Marine control systems requiring intrinsic safety certification
