Pepperl+Fuchs KFU8-USC-1.D Signal Converter 1-Channel 0-20mA / 0-10V Input 4-20mA + Relay Output Universal AC/DC In Stock

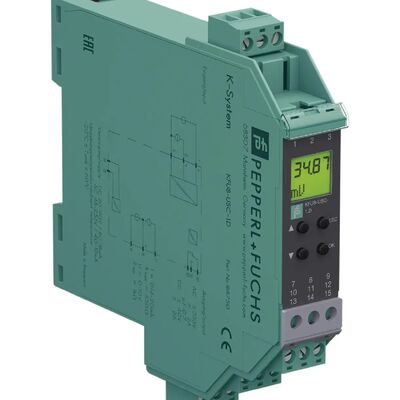

Large Image : Pepperl+Fuchs KFU8-USC-1.D Signal Converter 1-Channel 0-20mA / 0-10V Input 4-20mA + Relay Output Universal AC/DC In Stock

Product Details:

Place of Origin:	Singapore
Brand Name:	Pepperl+Fuchs
Certification:	CE
Model Number:	KFU8-USC-1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	P+F original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs KFU8-USC-1.D Signal Converter 1-Channel 0-20mA / 0-10V Input 4-20mA + Relay Output Universal AC/DC In Stock

Description

Condition:

PEPPERL+FUCHS Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Provides Isolation For Nonintrinsically Safe Applications

Highlight:

Pepperl Fuchs safety barrier signal converter

Intrinsic safety barrier with trip value

KFU8-USC-1.D signal converter

Product Overview

The Pepperl+Fuchs KFU8-USC-1.D is a 1-channel signal conditioner designed for connecting current and voltage signals, providing isolation for non-intrinsically safe applications. This versatile device converts scalable analog input signals into proportional output signals while functioning as a trip value monitor.

The device accepts inputs from 0-20 mA current, 0-10 V voltage, or 0-60 mV voltage sources, with selectable subranges from the full input ranges. It features two independent outputs (1 relay + 1 analog), providing flexibility for industrial automation, process control, and limit monitoring applications.

Universal Power Supply: Operates on either 20-90V DC or 48-253V AC (50-60 Hz), providing global compatibility with any control system without needing a separate power supply.

Technical Specifications

Parameter	Specification
Model	KFU8-USC-1.D
Brand	Pepperl+Fuchs
Product Type	Signal Converter with Trip Value / 1-channel Signal Conditioner
Input Current	0-20 mA (terminals 2+, 3-)
Input Voltage	0-10 V / 0-60 mV (terminals 1+, 3-)
Input Resistance	Voltage: 1 MΩ; Current: max. 100 Ω
Output I	Relay (Form C), 250V AC/2A, 40V DC/2A
Output II	Analog: 0/4-20 mA / 0/1-5 V / 0/2-10 V
Accuracy/Deviation	0.1% of full-scale value
Supply Voltage	20-90V DC / 48-253V AC (50-60 Hz)
Dimensions	20 x 119 x 115 mm (0.8 x 4.7 x 4.5 in)
Mounting	35mm DIN rail acc. to EN 60715
Certifications	CE, UKCA

Key Features

1-Channel Analog Signal Conditioner - Isolates and converts analog signals for industrial control systems
Universal Power Supply - Wide-range input: 20-90V DC OR 48-253V AC (50-60 Hz)
Flexible Input Options - Accepts 0-20 mA current, 0-10 V voltage, and 0-60 mV voltage signals
Flexible Output Options - Relay contact output + scalable analog output
Trip Value Function - Relay output serves as trip value contact for limit monitoring
High Accuracy - 0.1% of full-scale value deviation with 15-bit resolution
Easy Configuration - On-board keypad with display for local parameterization
Line Fault Detection - Monitors field circuit for wire breakage and short-circuit conditions

Wiring Connections

Terminal	Function
1+, 3-	Input: Voltage (mV, V)
2+, 3-	Input: Current (mA)
10, 11, 12	Output I: Relay (Form C changeover)
7-, 8+, 9-	Output II: Analog output (0/4-20 mA, 0/1-5 V, 0/2-10 V)
14, 15	Power supply: 20-90V DC or 48-253V AC

Applications

Industry	Application Examples
Process Automation	Level measurement, flow measurement, temperature measurement
Factory Automation	Pressure monitoring, position feedback
Machine Building	Signal isolation and conversion for PLC inputs
HVAC	Temperature and humidity signal conditioning
Water/Wastewater	Pressure and level monitoring
Energy Management	Current and voltage monitoring

Key Benefits

Versatile Input Capability

Accepts current (mA), voltage (V), and low-level voltage (mV) - one device for multiple sensor types

Global Compatibility

Universal AC/DC power supply works anywhere in the world

All-in-One Solution

Combines signal conditioning, isolation, and trip value alarm in one device

High Accuracy

0.1% full-scale accuracy ensures precise measurements

Space Saving

20mm wide B2 housing maximizes cabinet density

Enhanced Diagnostics

Line fault detection and LED status indicators enable predictive maintenance

Ordering Information

Item	Details
Manufacturer	Pepperl+Fuchs SE
Part Number	KFU8-USC-1.D
GTIN/EAN	4050143060627
Country of Origin	Germany
Product Status	Active / Available for Back Order
