Pepperl+Fuchs KFU8-UFC-Ex1.D Frequency Converter, 1-Channel Isolated Barrier 0.001-5000Hz Input, 4-20mA Output, SIL2 In Stock

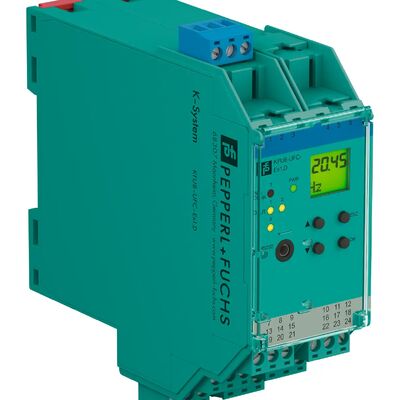

Large Image : Pepperl+Fuchs KFU8-UFC-Ex1.D Frequency Converter, 1-Channel Isolated Barrier 0.001-5000Hz Input, 4-20mA Output, SIL2 In Stock

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Certification:	CE
Model Number:	KFU8-UFC-Ex1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs KFU8-UFC-Ex1.D Frequency Converter, 1-Channel Isolated Barrier 0.001-5000Hz Input, 4-20mA Output, SIL2 In Stock

Description

Condition:

PEPPERL+FUCHS Original Brand New

Application:

Used For Intrinsic Safety Applications

Shipping Way:

DHL FedEx

Warranty:

One Year

Highlight:

Pepperl Fuchs safety barrier frequency converter

Intrinsic safety barrier with trip values

KFU8-UFC-Ex1.D frequency converter

Pepperl+Fuchs KFU8-UFC-Ex1.D Frequency Converter

1-Channel Isolated Barrier with 0.001-5000Hz Input, 4-20mA Output, SIL2 Certified

Product Overview

The Pepperl+Fuchs KFU8-UFC-Ex1.D is a 1-channel isolated barrier frequency converter from the K-System, designed for intrinsic safety applications in hazardous areas. This versatile device converts digital input frequency signals into proportional 0/4-20 mA analog output signals while functioning as both a switch amplifier and trip alarm.

Note: A successor product is available. Please verify stock availability before ordering.

Key Specifications

Parameter	Specification
Model	KFU8-UFC-Ex1.D
Brand	Pepperl+Fuchs
Product Type	Frequency Converter / Isolated Barrier (1-channel)
Input Types	NAMUR (EN 60947-5-6) or Dry Contact
Input Frequency	0.001 ... 5000 Hz (1 mHz - 5 kHz)
Output I, II	Relay (Form C), 250V AC/2A, 40V DC/2A
Output III	Electronic/Transistor output, passive, 40V DC/50mA
Output IV	Analog output, 0/4-20 mA, load ≤ 650 Ω
Supply Voltage	20-90V DC / 48-253V AC (50-60 Hz)
Safety Rating	SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
Accuracy	0.1% of measured value
Ambient Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	35mm DIN rail acc. to EN 60715
Dimensions (WxHxD)	40 x 119 x 115 mm (1.6 x 4.7 x 4.5 in)
Certifications	ATEX, IECEx, FM, SIL2, CE, UKCA

Key Features

Intrinsic Safety & Hazardous Area Protection

Ex ia input protection for Zone 0/1/2 hazardous areas
ATEX, IECEx, and FM approvals for global compliance
Reinforced galvanic isolation (300 Veff) for signal integrity

Universal Frequency Converter

Wide input frequency range from 0.001 Hz to 5 kHz
High accuracy of 0.1% of measured value
Fast response with measuring time < 100 ms

Four Versatile Outputs

2 relay outputs (Form C changeover) for trip alarm and switching
1 electronic transistor output for additional control
1 analog output (0/4-20 mA) for proportional signal transmission

Enhanced Diagnostics & Safety

Line Fault Detection for wire breakage and short-circuit monitoring
SIL 2 functional safety certification
LED status indicators according to NAMUR NE44

Applications

Industry	Application Examples
Oil & Gas	Flow monitoring from frequency-output sensors in hazardous areas
Chemical / Pharmaceutical	Tank level monitoring, reactor speed feedback
Process Automation	Frequency monitoring from flow meters, speed sensors
Factory Automation	Conveyor speed monitoring, RPM measurement
Safety Systems	SIL2-rated frequency monitoring for safety functions

Certifications & Compliance

Certification	Standard	Details
ATEX	2014/34/EU	TÜV 99 ATEX 1471 -- II (1)G [Ex ia Ga] IIC
IECEx	IEC 60079-0/11	IECEx TUN 04.0007 -- [Ex ia Ga] IIC
SIL 2	IEC/EN 61508 / IEC/EN 61511	Functional Safety
FM	Hazardous Locations	Control drawing 16-538FM-12
CE/UKCA	EMC & Low Voltage Directives	UK Conformity Assessed
