Pepperl+Fuchs KFU8-UFC-1.D.FA Frequency Converter, 1-Channel 0.001Hz-10kHz Input 4-20mA Output 2 Relay SIL2 In Stock

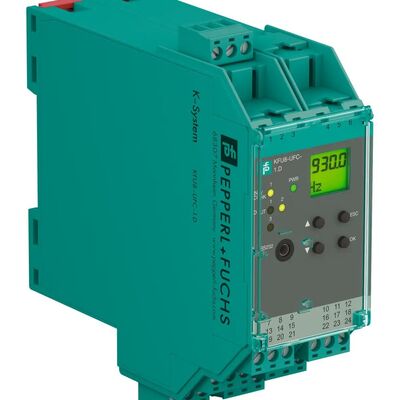

Large Image : Pepperl+Fuchs KFU8-UFC-1.D.FA Frequency Converter, 1-Channel 0.001Hz-10kHz Input 4-20mA Output 2 Relay SIL2 In Stock

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Certification:	CE
Model Number:	KFU8-UFC-1.D.FA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	P+F original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs KFU8-UFC-1.D.FA Frequency Converter, 1-Channel 0.001Hz-10kHz Input 4-20mA Output 2 Relay SIL2 In Stock

Description

Condition:

P+F Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Oil Gas Chemical Industry

Highlight:

Pepperl+Fuchs frequency converter

Intrinsic safety barrier converter

KFU8 frequency converter with trip values

Pepperl+Fuchs KFU8-UFC-1.D.FA Frequency Converter

In Stock

1-Channel Universal Frequency Converter with 0.001Hz-10kHz Input, 4-20mA Output, and 2 Relay Outputs - SIL2 Certified

Product Overview

The Pepperl+Fuchs KFU8-UFC-1.D.FA is a versatile 1-channel universal frequency converter and signal conditioner from the K-System. This advanced device converts digital input frequency signals into proportional analog output signals (0/4 mA ... 20 mA) while simultaneously functioning as a switch amplifier and trip alarm device.

Key Capabilities

Accepts inputs from NAMUR sensors, 2/3-wire sensors, or dry contacts
Wide frequency measurement range: 0.001 Hz to 10 kHz
Four independent outputs (2 relay + 1 transistor + 1 analog)
SIL 2 safety certification for critical applications

Technical Specifications

Parameter	Specification
Model	KFU8-UFC-1.D.FA
Input Types	NAMUR (EN 60947-5-6), 2/3-wire sensor, dry contact
Input Frequency	0.001 Hz ... 10 kHz (1 mHz - 10 kHz)
Output I, II	Relay (Form C), 250V AC/2A, 40V DC/2A
Output III	Electronic/Transistor output, passive, 40V DC/50mA
Output IV	Analog output, 0/4-20 mA, load ≤ 650 Ω
Supply Voltage	20-90V DC / 48-253V AC (50-60 Hz)
Safety Rating	SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
Accuracy	0.1% of measured value
Operating Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	35mm DIN rail acc. to EN 60715

Key Features

Universal Frequency Conversion

Wide input frequency range from 0.001 Hz to 10 kHz with 0.1% accuracy and fast response times

Multiple Output Options

2 relay outputs, 1 transistor output, and 1 analog output for maximum application flexibility

Flexible Input Compatibility

Accepts NAMUR sensors, 2/3-wire sensors, and dry contact mechanical switches

Line Fault Detection

Monitors for wire breakage and short-circuit conditions with predictive maintenance capabilities

Universal Power Supply

Wide-range input (20-90V DC or 48-253V AC) compatible with global power systems

SIL 2 Safety Certified

Certified for safety-related applications in process industries according to IEC/EN 61508/61511

Applications

Industry	Application Examples
Process Automation	Frequency monitoring from flow meters, speed sensors
Factory Automation	Conveyor speed monitoring, RPM measurement
Machine Building	Frequency-to-current conversion for PLC inputs
Pump & Motor Control	Speed feedback and trip alarm monitoring
Water/Wastewater	Flow rate monitoring from frequency-output sensors
Safety Systems	SIL2-rated frequency monitoring for safety functions

Certifications & Compliance

SIL 2: Functional Safety Assessment by exida (P+F 04/03-15 R016)
CE: EMC & Low Voltage Directives (2014/30/EU, 2014/35/EU)
UKCA: UK Conformity Assessed
RoHS: Environmentally compliant

Ordering Information

Manufacturer Part Number	KFU8-UFC-1.D.FA
Alternative Part Number	282274
GTIN/EAN	4050143048076
Product Status	Active - In Stock
Country of Origin	Germany
