Pepperl+Fuchs KFU8-UFC-1.D Frequency Converter, 0.001-10kHz NAMUR Input 4-20mA Analog Output 2 Relay SIL2 for Industrial Automation

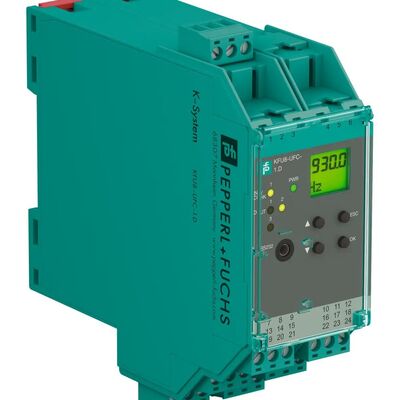

Large Image : Pepperl+Fuchs KFU8-UFC-1.D Frequency Converter, 0.001-10kHz NAMUR Input 4-20mA Analog Output 2 Relay SIL2 for Industrial Automation

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Certification:	CE SIL2
Model Number:	KFU8-UFC-1.D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Pepperl+Fuchs KFU8-UFC-1.D Frequency Converter, 0.001-10kHz NAMUR Input 4-20mA Analog Output 2 Relay SIL2 for Industrial Automation

Description

Condition:

P+F Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Provides The Isolation For Non-intrinsically Safe Applications

Highlight:

PEPPERL+FUCHS frequency converter

intrinsic safety barrier with trip values

KFU8-UFC-1.D frequency converter

Pepperl+Fuchs KFU8-UFC-1.D Frequency Converter

This 1-channel universal frequency converter and signal conditioner converts digital frequency input signals into proportional analog output signals (0/4-20 mA) while functioning as a switch amplifier and trip alarm device.

Product Overview

The Pepperl+Fuchs KFU8-UFC-1.D accepts inputs from NAMUR sensors (acc. to EN 60947-5-6), 2/3-wire sensors, or dry contacts, with frequency measurement from 0.001 Hz to 12 kHz. It features four independent outputs (2 relay + 1 transistor + 1 analog) for exceptional flexibility in industrial automation and process control applications.

Note: A successor product is available. Please verify stock availability before ordering.

Technical Specifications

Model	KFU8-UFC-1.D
Input Types	NAMUR (EN 60947-5-6), 2/3-wire sensor, dry contact
Input Frequency	0.001 Hz ... 12 kHz
Output I, II	Relay (Form C), 250V AC/2A, 40V DC/2A
Output III	Electronic/Transistor output, passive, 40V DC/50mA
Output IV	Analog output, 0/4-20 mA, load ≤ 650 Ω
Supply Voltage	20-90V DC / 48-253V AC (50-60 Hz)
Safety Rating	SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511
Accuracy	0.1% of measured value
Ambient Temperature	-20°C ~ 60°C (-4°F ~ 140°F)
Mounting	35mm DIN rail acc. to EN 60715

Key Features

Universal frequency converter with wide input range (0.001 Hz to 12 kHz)
High accuracy of 0.1% for precise frequency monitoring
Four versatile outputs: 2 relay, 1 transistor, and 1 analog
Flexible input options for NAMUR, 2/3-wire sensors, and dry contacts
Line fault detection for wire breakage and short-circuit monitoring
Start-up override function (1-1000 seconds) prevents false alarms
Universal power supply compatible with global systems
SIL 2 functional safety certification
Easy configuration via keypad display or PACTware software
Reinforced galvanic isolation for signal integrity and safety

Applications

Process Automation	Frequency monitoring from flow meters, speed sensors
Factory Automation	Conveyor speed monitoring, RPM measurement
Machine Building	Frequency-to-current conversion for PLC inputs
Pump & Motor Control	Speed feedback and trip alarm monitoring
Water/Wastewater	Flow rate monitoring from frequency-output sensors
Energy Management	Frequency monitoring from generators and turbines
Safety Systems	SIL2-rated frequency monitoring for safety functions

Certifications & Compliance

SIL 2	IEC/EN 61508 / IEC/EN 61511 Functional Safety Assessment by exida
CE	2014/30/EU, 2014/35/EU EMC & Low Voltage Directives
UKCA	UK Conformity Assessed
RoHS	Compliant - Environmentally friendly

Ordering Information

Manufacturer: Pepperl+Fuchs SE

Part Number: KFU8-UFC-1.D (Alternative: 231195)

Product Status: Active - Successor available

Country of Origin: Germany
