Textile Machinery Servo Drive ASD-B3-1521-E 1.5kW Delta

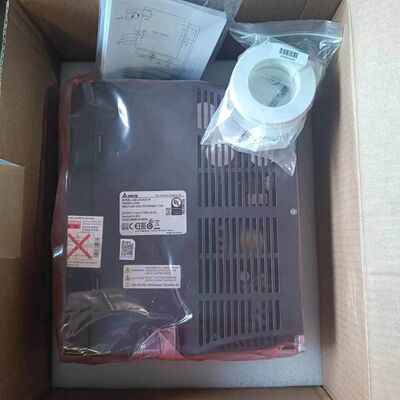

Large Image : Textile Machinery Servo Drive ASD-B3-1521-E 1.5kW Delta

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ASD-B3-1521-E

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Textile Machinery Servo Drive ASD-B3-1521-E 1.5kW Delta

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Winding Machine Etc.

Highlight:

Delta 1.5KW servo driver

AC servo driver amplifier

1.5KW servo driver with warranty

Delta ASD-B3-1521-E 1.5kW Servo Drive

The Delta ASD-B3-1521-E is a 1.5kW high-performance AC servo drive from the ASDA-B3 series, engineered for demanding industrial automation applications requiring precision motion control and high-speed communication. Featuring EtherCAT interface and supporting 24-bit high-resolution absolute encoders, this drive delivers exceptional positioning accuracy, fast response, and seamless integration into multi-axis systems. With a velocity response bandwidth of 3.1 kHz and settling time improved by 40% over previous generations, it is designed to enhance machine productivity and operational efficiency.

Technical Specifications

Parameter	Specification
Model	ASD-B3-1521-E
Series	ASDA-B3 Series
Rated Power	1.5 kW (1500W)
Input Voltage	200-240 VAC (±10%), 50/60 Hz
Input Phase	Single-phase or Three-phase
Continuous Output Current	8.3 A / 8.6 A / 9.0 A
Peak Output Current	18.0 A / 25.8 A
Control Modes	Position, Velocity, Torque
Communication Interface	EtherCAT
Encoder Support	24-bit absolute / incremental optical encoder (16,777,216 pulses/rev)
Velocity Response Bandwidth	3.1 kHz
Settling Time Improvement	40% faster than B2 series
Protection Features	Overcurrent, Overvoltage, Undervoltage, Thermal Overload, Short Circuit
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 85°C
Protection Class	IP20
Mounting Type	Chassis Mount

Advanced Features

Feature	Description
EtherCAT Communication	High-speed real-time bus interface enables multi-axis synchronization with microsecond-level cycle times; supports distributed clock for precise coordination
24-bit High-Resolution Encoder Support	Compatible with 24-bit absolute and incremental optical encoders (16,777,216 pulses/rev), delivering sub-micron positioning accuracy and stable low-speed operation
High Response Bandwidth	3.1 kHz velocity response bandwidth ensures rapid command tracking and minimized settling time, reducing cycle times for high-throughput applications
Advanced Auto-Tuning	Built-in auto-gain tuning function with system analysis interface simplifies commissioning; one-click optimization for load-specific performance
Vibration Suppression	Integrated vibration suppression filters (up to 5000 Hz) with auto-scanning capability minimize mechanical resonance and improve surface finish quality
Multiple Control Modes	Supports position, velocity, and torque control modes for flexible application integration
Energy Regeneration	Built-in regenerative energy management recycles braking energy back to the power supply, reducing operating costs
Single-Phase Compatibility	Operates on single-phase or three-phase input, simplifying installation in facilities without three-phase power

Industrial Applications

Industry	Specific Applications
CNC Machinery	Milling machines, lathes, machining centers, engraving machines
Robotics	SCARA robots, robotic arms, pick-and-place systems, delta robots
Electronics Manufacturing	SMT machines, PCB drilling, semiconductor handling equipment
Packaging Machinery	High-speed packaging machines, filling machines, labeling equipment
Material Handling	Conveyor systems, AGV, automated storage and retrieval
Printing Equipment	Screen printers, label printers, paper feeding systems
Textile Machinery	Spinning machines, winding equipment, tension control systems
Woodworking	CNC routers, edge banding machines, carving equipment

System Integration

Compatible Motors

Designed for use with Delta ECM-B3 series servo motors featuring:

24-bit absolute optical encoder (ECM-B3M-E21310RS1 / EA1315RS1 / EA1315SS1)
24-bit incremental optical encoder

System Performance

When paired with ECM-B3 series motors, the system achieves:

3.1 kHz velocity response bandwidth - 40% faster settling time than previous generations
24-bit encoder resolution - 16,777,216 pulses/rev for sub-micron accuracy
350% torque overload capacity - Handles dynamic load changes reliably

Performance Advantages

Advantage	Description
High Precision Positioning	24-bit encoder support enables micron-level accuracy for demanding applications like semiconductor manufacturing and precision machining
Fast Dynamic Response	3.1 kHz bandwidth provides rapid command tracking, reducing cycle times and improving throughput
Real-Time Multi-Axis Sync	EtherCAT interface with distributed clock ensures precise coordination for complex motion profiles
Easy Commissioning	Auto-tuning and system analysis interface simplify setup; 40% faster commissioning than previous generations
Energy Efficiency	Regenerative energy management reduces power consumption and operating costs
Reliable Operation	Comprehensive protection features (overcurrent, overvoltage, thermal) safeguard against electrical faults
Flexible Installation	Single-phase input enables integration into facilities without three-phase power

Frequently Asked Questions

What is the main advantage of the ASD-B3-1521-E over previous B2 series drives?

The B3 series offers 3.1 kHz bandwidth (vs. 0.5 kHz), 40% faster settling time, 24-bit encoder support, and EtherCAT communication, delivering significantly higher precision and response speed.

What communication protocol does this drive support?

The ASD-B3-1521-E features EtherCAT interface for high-speed real-time control, ideal for multi-axis synchronization and Industry 4.0 applications.

Can this drive be powered by single-phase input?

Yes, the ASD-B3-1521-E accepts both single-phase and three-phase 200-240V AC input, simplifying installation in facilities without three-phase power.

What motors are compatible with this drive?

The drive is designed for Delta ECM-B3 series servo motors with 24-bit absolute or incremental optical encoders. Compatible models include ECM-B3M-E21310RS1 (1kW), ECM-B3M-EA1315RS1 (1.5kW), and ECM-B3M-EA1315SS1 (1.5kW with brake).

What is the output current rating?

Continuous output current is 8.3 A (DigiKey) to 9.0 A (some sources), with peak current up to 25.8 A.

Does this drive include a regenerative resistor?

Built-in regenerative energy management is included; for applications with frequent deceleration, an external regenerative resistor may be required depending on load conditions.

What is the typical application for this drive?

It is ideal for CNC machinery, robotics, packaging equipment, electronics manufacturing, and any multi-axis automation requiring high precision and real-time communication.

Ordering Information

Item	Details
Model	ASD-B3-1521-E
Power	1.5 kW (1500W)
Voltage	200-240 VAC, Single-phase / Three-phase
Communication	EtherCAT
Encoder Support	24-bit absolute / incremental
Compatible Motors	ECM-B3 Series (1.5kW / 1kW)
