Delta E3 Series ASD-E3-1021-L 1kW Servo Drive for Packaging Machine CNC Textile Machinery

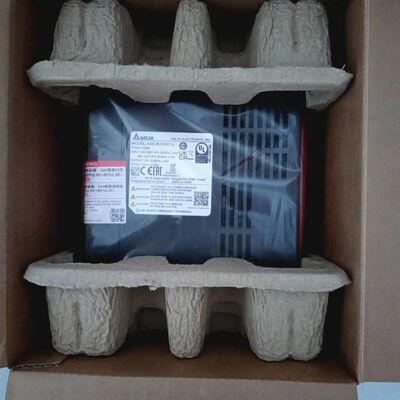

Large Image : Delta E3 Series ASD-E3-1021-L 1kW Servo Drive for Packaging Machine CNC Textile Machinery

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ASD-E3-1021-L

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Delta E3 Series ASD-E3-1021-L 1kW Servo Drive for Packaging Machine CNC Textile Machinery

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Winding Machine Etc.

Highlight:

1KW AC servo driver amplifier

Delta AC servo driver with warranty

ASD-E3-1021-L servo driver amplifier

The Delta ASD-E3-1021-L is a 1kW basic-type AC servo drive from the ASDA-E3 series, designed for industrial automation applications requiring precise motion control. Operating on 200-240V AC single-phase input, this drive delivers reliable performance with simplified wiring and an intuitive user interface. It is optimized for use with ECM-E3 series servo motors, making it suitable for transmission, conveying, positioning, and other basic industrial automation applications.

Key Specifications

Model	ASD-E3-1021-L
Series	ASDA-E3 Series
Rated Power	1.0 kW (1000W)
Input Voltage	200-240 V AC, Single Phase
Output Current	6 A (RMS)
Control Modes	Position, Velocity, Torque
Communication Interface	RS-485 (MODBUS RTU)
Encoder Support	22-bit Optical / 17-bit Magnetic
Dimensions (W × H × D)	130 × 150 × 153 mm
Protection	Overcurrent, Overvoltage, Overtemperature

Key Features

High Bandwidth Response	2.5 kHz velocity response bandwidth (improved from B2 series 0.5 kHz), enabling faster command tracking and improved system stability
High Resolution Encoders	Supports 22-bit optical encoder (4,194,304 ppr) or 17-bit magnetic encoder (131,072 ppr) for precise positioning
High Speed & Torque	Motor speed up to 6000 rpm with 3.5x torque overload capacity for enhanced productivity
Vibration Suppression	Five sets of high-frequency resonance suppression filters up to 5000 Hz with auto-scanning capability
Compact Design	Drive volume reduced by 20% compared to B2 series; motor size reduced by 25% for space-constrained applications
Multiple Control Modes	Supports position, speed, and torque control modes for flexible application integration

Applications

Textile Machinery	Spinning machines, winding equipment, tension control
Packaging Machinery	Filling machines, labeling equipment, cartoning systems
Material Handling	Conveyor systems, AGV, pick-and-place operations
Woodworking Machinery	CNC routers, edge banding machines, carving equipment
Metalworking	Machine tools, milling machines, lathes
Robotics	SCARA robots, robotic arms, automation arms

System Integration

Compatible Motors

Designed for use with Delta ECM-E3 series servo motors, including:

ECM-E3M-C20807RSE / SS (750W)
ECM-E3M-E21310RSE / SSE (1kW)
ECM-E3M-E21315RSE (1.5kW)

Performance Advantages

Faster Settling Time	2.5 kHz bandwidth reduces positioning settling time, improving cycle times
Enhanced Stability	Auto vibration suppression minimizes mechanical resonance for smooth operation
Simplified Wiring	Basic-type design with intuitive terminal layout reduces installation time
Energy Efficiency	Optimized control algorithms reduce power consumption and operating costs

Wiring & Installation Guidelines

Power Connection	Connect single-phase AC input to L and N terminals
Motor Connection	Connect U, V, W terminals to motor power leads; ensure proper grounding
Encoder Connection	Use shielded cables; separate from power cables to prevent EMI
Communication	RS-485 interface with MODBUS RTU protocol for PLC/HMI integration
Configuration	Use Delta Motion Studio software for parameter tuning, PID loop adjustment, and motion profile configuration

Safety & Operational Guidelines

Power Disconnection	Disconnect main power before wiring or maintenance
Overcurrent Protection	Install appropriate fuses or circuit breakers per user manual specifications
Emergency Stop	Implement external emergency stop circuits for safety
Temperature Monitoring	Monitor motor temperature during high-load continuous operation
Common Fault Codes	F01: Overcurrent; F03: Overvoltage - inspect cabling and load conditions

Ordering Information

Model	ASD-E3-1021-L
Power	1 kW (1000W)
Voltage	200-240 V AC, Single Phase
Control	Pulse train (PT mode)
Communication	RS-485 (MODBUS)
Compatible Motors	ECM-E3 Series

Frequently Asked Questions

What is the main advantage of the ASD-E3-1021-L over the previous B2 series?

The E3 series offers 2.5 kHz bandwidth (vs. 0.5 kHz), 20% smaller drive footprint, 25% smaller motor size, 6000 rpm maximum speed, and 3.5x torque overload capacity.

What communication protocols does this drive support?

The ASD-E3-1021-L supports RS-485 communication with MODBUS RTU protocol for integration with PLCs and HMIs.

Can this drive be used with absolute encoders?

Yes, the drive supports absolute encoders (17-bit magnetic) with optional modules for enhanced feedback capabilities.

What is the typical application for this drive?

It is well-suited for packaging machinery, textile equipment, material handling systems, woodworking machinery, and basic automation applications requiring precise motion control.
