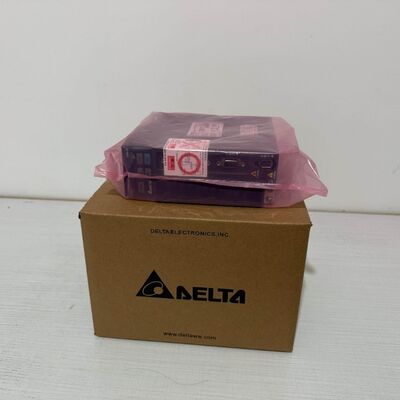

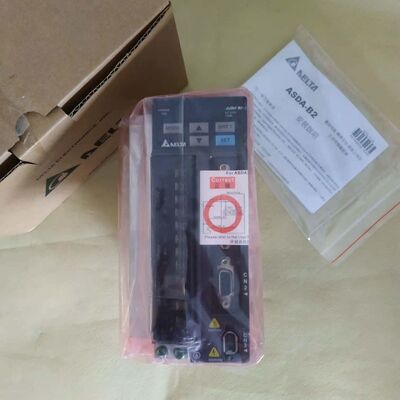

Delta ASD-B3-0721-E 750W 220V Single-Phase High Precision AC Servo Drive
The Delta ASD-B3-0721-E Servo Drive delivers precision motion control for industrial automation applications including CNC machining centers, packaging production lines, and semiconductor equipment manufacturing.
Product Overview
Delta's ASD-B3-0721-E servo drive addresses critical challenges in industrial motion control, providing reliable performance for high-precision and high-dynamic scenarios. This solution eliminates common issues like low positioning accuracy, poor dynamic response, and equipment instability caused by parameter mismatch.
Working Principle
The ASD-B3-0721-E achieves precise motion control through a closed-loop system combining a 24-bit high-resolution encoder with advanced control algorithms. Real-time feedback of position, speed, and torque signals enables intelligent calculation and adjustment for stable motor operation along set trajectories.
Unique features include auto-tuning functionality that automatically identifies load characteristics and adjusts control parameters in real-time, plus built-in vibration suppression algorithms that ensure system stability during high-speed operation.
Key Technical Parameters
| Parameter |
Specification |
Stability Benefit |
Reference |
| Rated Output Current |
5.1 Arms |
Ensures optimal torque output without overcurrent during heavy loads or high-speed operation |
Page 45, Parameter Manual P0-03 |
| Control Bandwidth |
3.1kHz |
Enables rapid response to instruction changes while maintaining stable operation |
Page 68, Product Specification Sheet B3-02 |
| Encoder Resolution |
24-bit |
Minimizes position feedback error for micron-level positioning accuracy |
Page 52, Encoder Connection Manual |
| Rated Input Voltage |
220VAC, 1/3 Phase |
Wide voltage adaptation range maintains stable output despite power fluctuations |
Page 38, Power Connection Guide |
Installation and Debugging Procedure
Step 1: Mechanical Inspection (Before Power-On)
- Verify mechanical connections between motor and load, ensuring couplings are secure and transmission mechanisms operate smoothly
- Confirm proper encoder wiring with shielded cable grounding to prevent signal interference
Step 2: Basic Parameter Setting (Power-On Initialization)
- Input motor parameters: rated current (5.1 Arms) and rated power (750W) for initial drive-motor matching
- Select appropriate control mode (position, speed, or torque) based on application requirements
Step 3: Auto-Tuning & Vibration Suppression
- Enable auto-tuning function to automatically identify load characteristics and adjust control parameters
- Adjust vibration suppression parameters if mechanical vibration occurs during operation
Step 4: Load Testing & Parameter Optimization
- Conduct progressive testing under light, half, and rated load conditions
- Monitor motor operation, position accuracy, and current changes for fine-tuning
Application Benefits
The Delta ASD-B3-0721-E servo drive effectively resolves industrial motion control challenges including low positioning accuracy, poor dynamic response, and operational instability. Through standardized installation and debugging procedures, this drive delivers reliable performance across diverse applications from CNC machining and packaging machinery to semiconductor equipment.
Suitable for both single-axis control systems and multi-axis synchronous operations, the ASD-B3-0721-E ensures equipment stability while improving production efficiency and product quality, making it an ideal choice for industrial automation upgrades and new project implementations.
