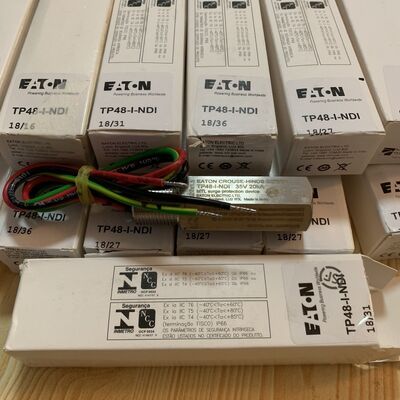

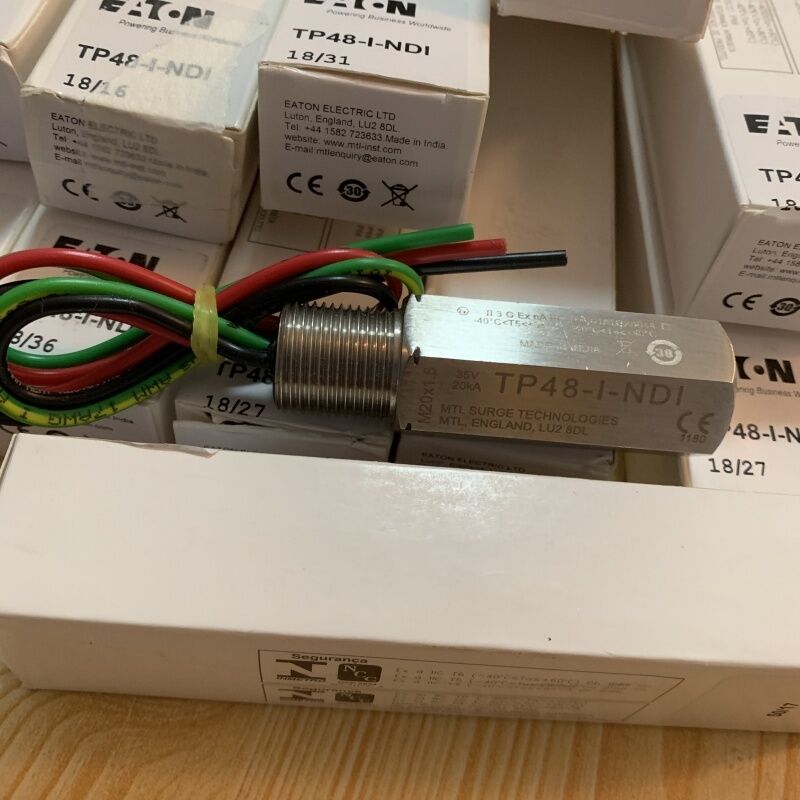

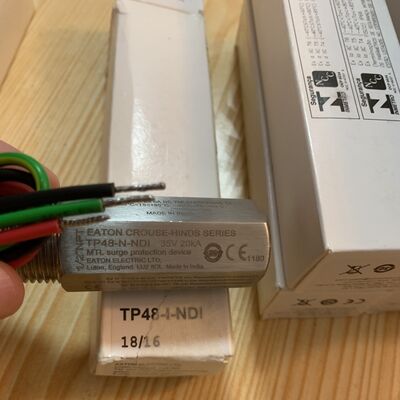

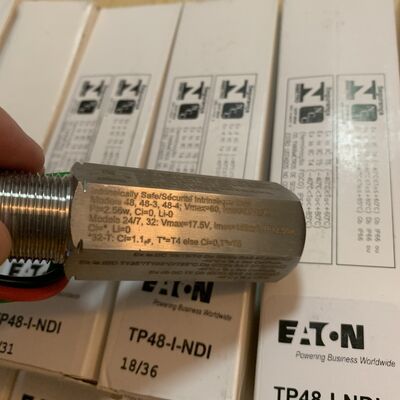

Eaton Crouse-Hinds series MTL TP48 surge protector, 35V, 10kA surge current, 316 stainless steel, <76V protection level, 3 flying leads (line 1, line 2 and earth), 18 AWG, 20mm ISO, Certified
| Product Name |
Eaton Crouse-Hinds series MTL TP48 surge protector
|
| Product Name |
Eaton Crouse-Hinds series MTL TP48 surge protector
|
| Catalog Number |
TP48-I-NDI
|
| Product Length/Depth |
75 mm
|
| Product Height |
27 mm
|
| Product Width |
23 mm
|
| Product Weight |
175 g
|
| Global Catalog |
TP48-I-NDI
|
| Product Type |
Surge protector
|
| Area classification |
Hazardous/Classified Locations
|
| Standards type |
IEC
IECEx/ATEX
NEC/CEC
|
| IECEx/ATEX hazardous rating |
Zone 2
|
| Ingress protection (IP) ratings |
IP66
|
| Material |
316 stainless steel
|
| Type |
Certified
|
| Frequency |
1 MHz
|
| Thread Size |
20mm ISO
|
| Category Tested Acc. IEC 61643-21 |
A2, B2, C1, C2, C3, D1
|
| Connection Details |
3 flying leads (line 1, line 2 and earth)
|
| Conductor Cross-section AWG |
18 AWG
|
| Minimum Ambient Operating Temperature |
-40 °C
|
| Maximum Ambient Operating Temperature |
60 °C
|
| Minimum Ambient Storage Temperature |
-40 °C
|
| Maximum Ambient Storage Temperature |
85 °C
|
| Humidity |
5-95% RH (non-condensing)
|
| Modes of Protection |
Safeguards electronic process transmitters against induced surges and transients from field cabling
|
| Nominal Voltage DC |
35V
|
| Nominal Discharge Surge Current (8/20) |
10 kA
|
| Lightning Impulse Current (10/350 µs) |
2.5 kA
|
| Voltage Protection Level at In |
90V
|
| Voltage Protection Level at 1kV/µS |
<76V
|
| Max. Leakage Current |
<1μA
|
| Max. Continuous Voltage DC |
58V
|
| IEC |
IEC 61508
IEC 61511
|
The Crouse-Hinds series MTL SD range is a series of surge protection devices combining unparalleled packing densities, application versatility, proven reliable hybrid circuitry, simple installation and optional ‘loop disconnect’ facilities – features which make the range the ultimate surge protection solution for process equipment, I/O systems and communications networks.
The exceptionally high packing densities are the consequence of an ultra-slim footprint for individual modules which can thus "double-up" as feedback terminals. Each module provides full hybrid surge protection for 2 and 3 wire loop protection.
SDX models
Available in 7V, 16V, 32V and 55V versions (SD07X, SD16X, SD32X and SD55X respectively) are suitable for a wide range of applications including THCs, 4-20mA loops, shut-down systems and fire and gas detectors.
SD models
In addition to the many beneficial features offered by SDX devices, the SD variants fuse/disconnect package provides both fused protection against fault currents and a convenient method of isolating field circuitry from protected circuitry without needing additional disconnect terminals. Also provided is a third connection on the field and safe side of the protector in order to terminate screens safely to earth.
SDR models
Specially designed to meet the requirements for high speed data links with an extremely high bandwidth. SDR units are available in a range of voltage variants enabling a wide range of communication systems to be protected e.g. RS232, RS422, RS485, Bus powered systems etc. These devices are classed as simple apparatus and can therefore be used in hazardous areas without affecting the certification of the circuit.
SD32T3, SDRTD, SDR3 models
This range of SD surge protectors offer excellent levels of protection over all three wires in conjunction with minimal footprint requirements. This is the most compact 3-wire surge protector on the market.
MTL SD Surge Protector for Data & Signal Applications
SD07
SD16
SD32
SD55
SD07R
SD16R
SD32R
SD55R
SD07X
SD16X
SD32X
SD55X
SD32T3
SD07R3
SD16R3
SD32R3
SD55R3
SDRTD
SDPSTN
SD150X
SD275X
