Eaton Crouse-Hinds MTL Zone Barrier Network Surge Protector with 50MHz Frequency 10kA Surge Current and RS485 Interface

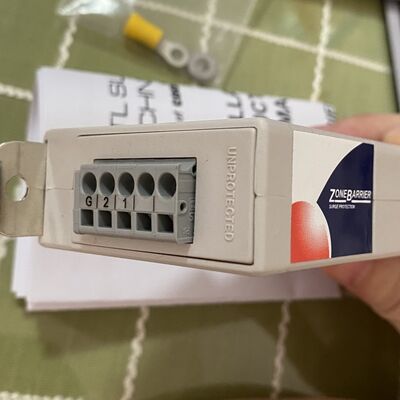

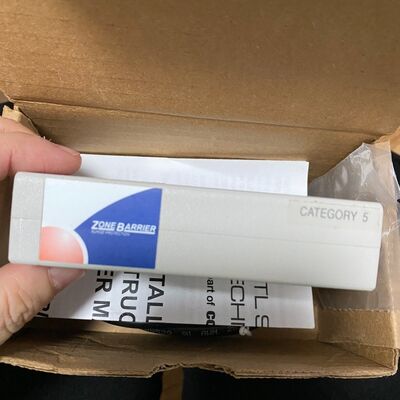

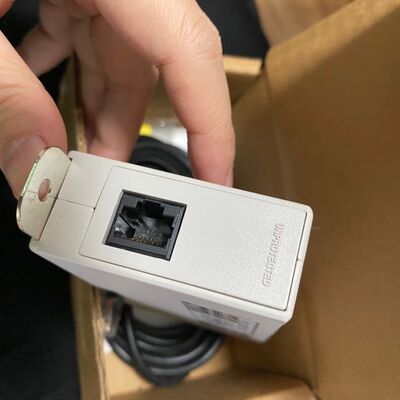

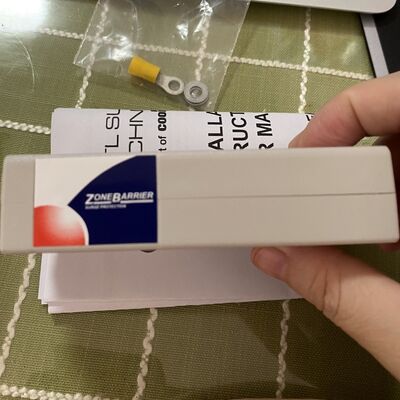

Large Image : Eaton Crouse-Hinds MTL Zone Barrier Network Surge Protector with 50MHz Frequency 10kA Surge Current and RS485 Interface

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	ZB24518

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Eaton Crouse-Hinds MTL Zone Barrier Network Surge Protector with 50MHz Frequency 10kA Surge Current and RS485 Interface

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	ZB24518 Surge Protection Device , Surge Protection Device 50MHz , MTL Network Surge Protector

ZB24518 MTL Surge Protection Device

Eaton Crouse-Hinds series MTL ZoneBarrier Network surge protector, 5V, 10kA surge current, 0.5A load current. Molded plastic construction with wall, DIN rail, or rack mounting options. Features 2-wire terminal strip connection and RS485 compatibility.

Product Specifications

Catalog Number	ZB24518
Product Type	Surge protector
Dimensions	128 mm (L) × 57 mm (H) × 25 mm (W)
Weight	0.08 kg
Area Classification	Ordinary/Non-Hazardous Locations
Standards	IEC, NEC/CEC
Mounting Methods	DIN rail, Rack, Wall
Material	Molded plastic
Connection Type	Terminal strip (2 wires)
Interface Type	RS485
Frequency	50 MHz
Operating Temperature	-40 °C to 85 °C
Humidity	95% RH (non-condensing)
Nominal Voltage DC	5V
Surge Current (8/20)	10 kA
Load Current	0.5A
IEC Standard	IEC 61000-4-5

MTL TP48 Surge Protection for 2, 3 & 4 Wire Transmitters

The Crouse-Hinds series MTL TP48 surge protection device provides comprehensive protection for field-mounted process transmitters. Installed directly at the unit by screwing into an unused conduit entry, it delivers high-level surge and transient protection without affecting normal operation.

Key Features

Automatic reset after each operation
Available with screw threads for different transmitters
Explosion-proof and intrinsically safe options for hazardous areas
Maximum working voltage: 48V DC
Impulse ratings: 10kA peak current, 10kV peak voltage
Approvals for intrinsically safe, flameproof, explosion-proof and non-incendive operation
Compatible with all gas groups and temperature classifications up to T6
Functional Safety compliant with IEC 61508 and IEC 61511 standards

Available Models

TP48-N-NDI
TP48-I-NDI
TP48-G-NDI
TP48-3-N-NDI
TP48-3-I-NDI
TP48-3-G-NDI
TP48-4-N-NDI
TP48-4-I-NDI
TP48-4-G-NDI
