Eaton Crouse-Hinds MTL ZoneBarrier Network Surge Protector with 5V 1kA Surge Current and RJ45 Connection

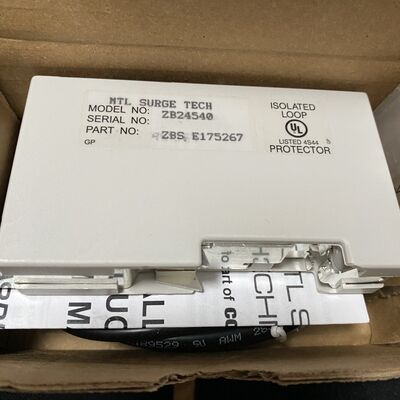

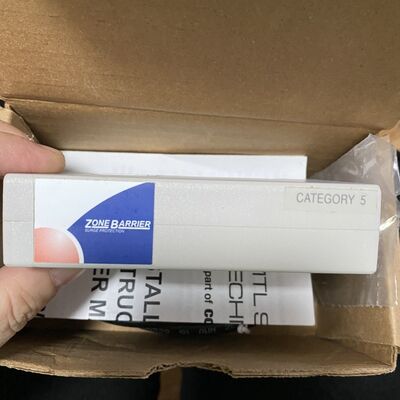

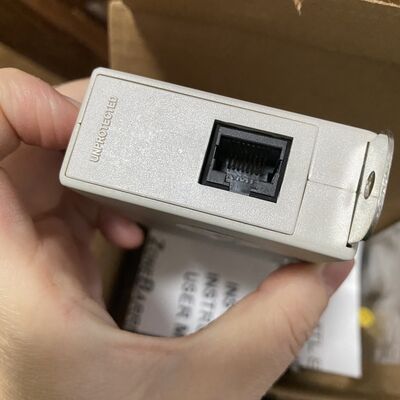

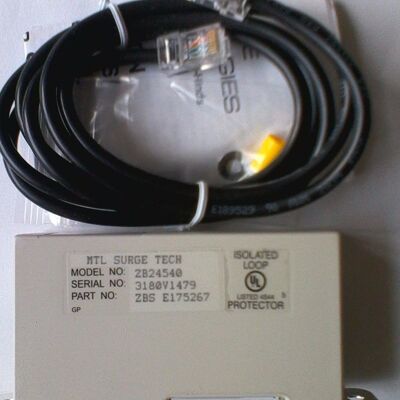

Large Image : Eaton Crouse-Hinds MTL ZoneBarrier Network Surge Protector with 5V 1kA Surge Current and RJ45 Connection

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	ZB24540

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original pacakge
Delivery Time:	ship out immediately after payment received
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Eaton Crouse-Hinds MTL ZoneBarrier Network Surge Protector with 5V 1kA Surge Current and RJ45 Connection

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	MTL Zone Barrier , ZB24540 , Network Surge Protector 5V

ZB24540 MTL Zone Barrier Network Surge Protector

Eaton Crouse-Hinds series MTL ZoneBarrier Network surge protector, 5V, 1kA surge current, 0.5A load current. Molded plastic construction with wall, DIN rail, or rack mounting options. Features 8 wires and RJ45 connection for 100Base-T* networks.

Product Specifications

Catalog Number	ZB24540
Product Dimensions	128 mm (L) × 57 mm (H) × 25 mm (W)
Product Weight	0.08 kg
Certifications	UL497B
Area Classification	Ordinary/Non-Hazardous Locations
Standards	IEC, NEC/CEC
Mounting Methods	Rack, DIN rail, Wall
Material	Molded plastic
Connection Type	RJ45 (8 wires)
Network Type	100Base-T*
Frequency	155 MHz
Operating Temperature	-40 °C to 85 °C
Humidity	95% RH (non-condensing)
Nominal Voltage DC	5V
Nominal Discharge Surge Current (8/20)	1 kA
Nominal Load Current	0.5A
IEC Standard	IEC 61000-4-5

MTL TP48 Surge Protection for 2, 3 & 4 Wire Transmitters

The Crouse-Hinds series MTL TP48 surge protection device provides critical protection for field-mounted process transmitters at the point of installation. Designed for simple installation by screwing into an unused conduit entry without additional modifications, it delivers high-level surge and transient protection while maintaining normal operation.

Automatic reset after each operation cycle
Available with screw threads for different transmitter types
Explosion-proof and intrinsically safe options for hazardous areas
Maximum working voltage: 48V DC
Impulse ratings: 10kA peak current and 10kV peak voltage
Approvals for intrinsically safe, flameproof, explosion-proof and non-incendive operation
Compatible with all gas groups and temperature classifications up to T6
Functional Safety compliant with IEC 61508 and IEC 61511 standards

Available Models

TP48-N-NDI
TP48-I-NDI
TP48-G-NDI
TP48-3-N-NDI
TP48-3-I-NDI
TP48-3-G-NDI
TP48-4-N-NDI
TP48-4-I-NDI
TP48-4-G-NDI
