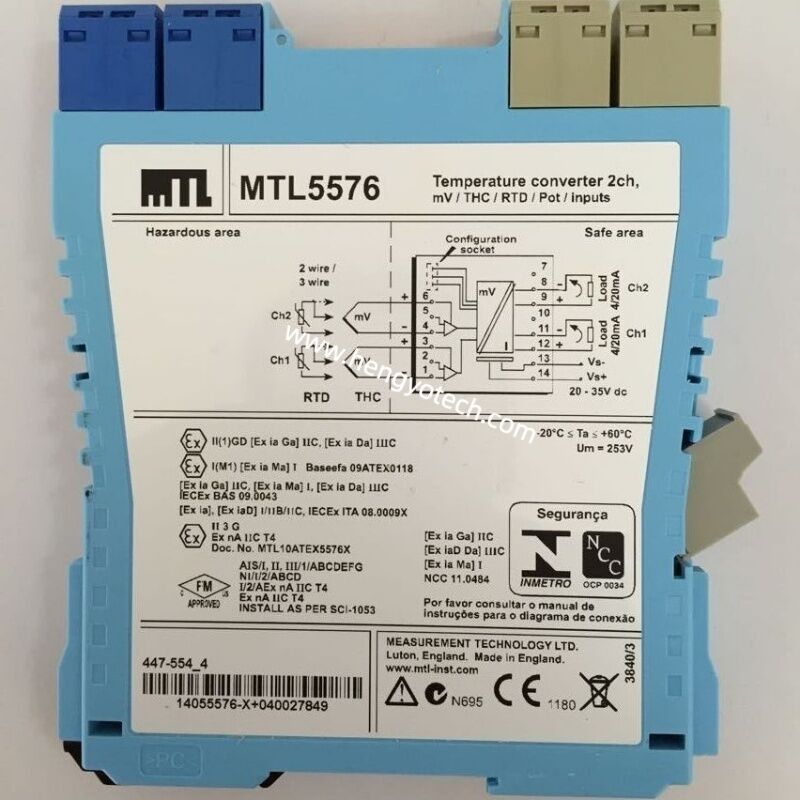

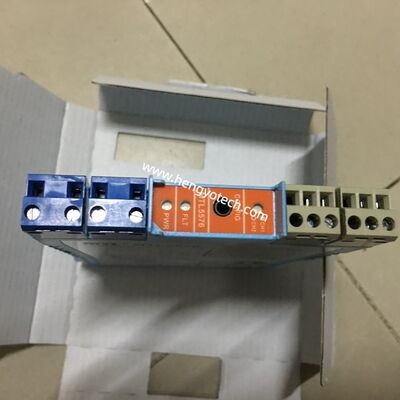

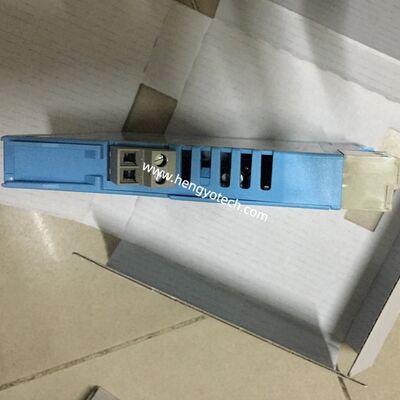

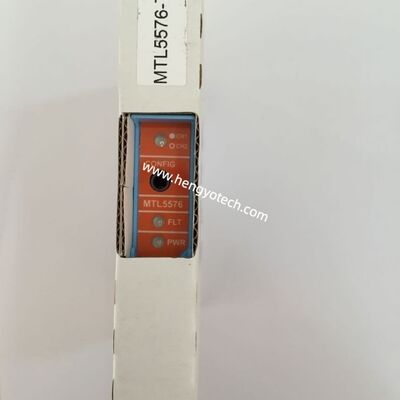

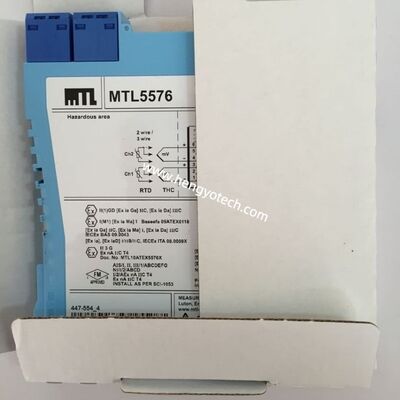

MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter

MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter
MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter

Large Image :  MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5576THC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL intrinsic safety isolators temperature converter

,

MTL5576THC temperature converter

,

intrinsic safety barrier isolators

MTL5576THC MTL Intrinsic Safety Isolators Temperature Converter
Eaton Crouse-Hinds series MTL5500 temperature converter with 2-channel configuration, designed for temperature input applications. Features 20-35 Vdc power supply, 1.4W power dissipation, and 60mA current consumption. Accepts THC type input signals with -75mV to +75mV range and provides comprehensive LED status indication.
Product Name Eaton Crouse-Hinds series MTL5500 temperature converter
Catalog Number MTL5576-THC
Product Dimensions 109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight 150 g
Global Catalog MTL5576-THC
Product Type Temperature converter
Technical Specifications
Type mV/THC input
Area Classification Hazardous/Classified Locations
Standards Type IECEx/ATEX IEC
IECEx/ATEX Hazardous Rating Zone 0
Operating Temperature Range -20°C to 60°C
Storage Temperature Range -40°C to 80°C
Humidity 5-95% relative humidity
Signal Type Temperature input
Signal Range -75mV to +75mV
Response Time Configurable (500ms default)
Output Signal Range 4-20mA nominal into 300Ω max.
Number of Channels 2
Terminal Capacity Accepts conductors of up to 2.5mm² stranded or single-core
Mounting Method T-section 35mm DIN rail
EMC EN61326
Safety Drive on Sensor Failure Upscale, downscale, or off
Configuration Personal computer running MTL PCS45 software with PCL45USB serial interface
Cold Junction Compensation Error ≤1.0°C
Cold Junction Compensation Automatic or selectable
Common Mode Rejection 120 dB for 240V at 50 or 60 Hz
Series Mode Rejection 40 dB for 50 or 60 Hz
Electrical Connection Crimp ferrules
Power Supply 20-35 Vdc
Current Consumption 60mA
Galvanic Isolation 250V rms between safe-area circuits and power supply
Galvanic Separation Functional channel-channel isolation for safe and hazardous area circuits
LED Indication Yes
LED Colors Green (Power), Yellow (Status), Red (LFD)
Power Dissipation 1.4W
Input Signal THC types, mV
Maximum Load Resistance >10kΩ (safety drive disabled)
300Ω (safety drive enabled)
Transfer Accuracy ±16µA
Temperature Drift ±0.6µA/°C
Key Features
  • Dual-channel temperature converter with intrinsic safety isolation
  • Compatible with THC type input signals (-75mV to +75mV range)
  • Comprehensive LED status indication system
  • Robust safety features for hazardous area applications
  • Easy DIN rail mounting and configuration
  • Wide operating temperature and humidity range
  • Advanced cold junction compensation capabilities
