Panasonic Estun EMG-20APA22 2.0kW High Torque AC Servo Motor IP65 Rated for Industrial Applications

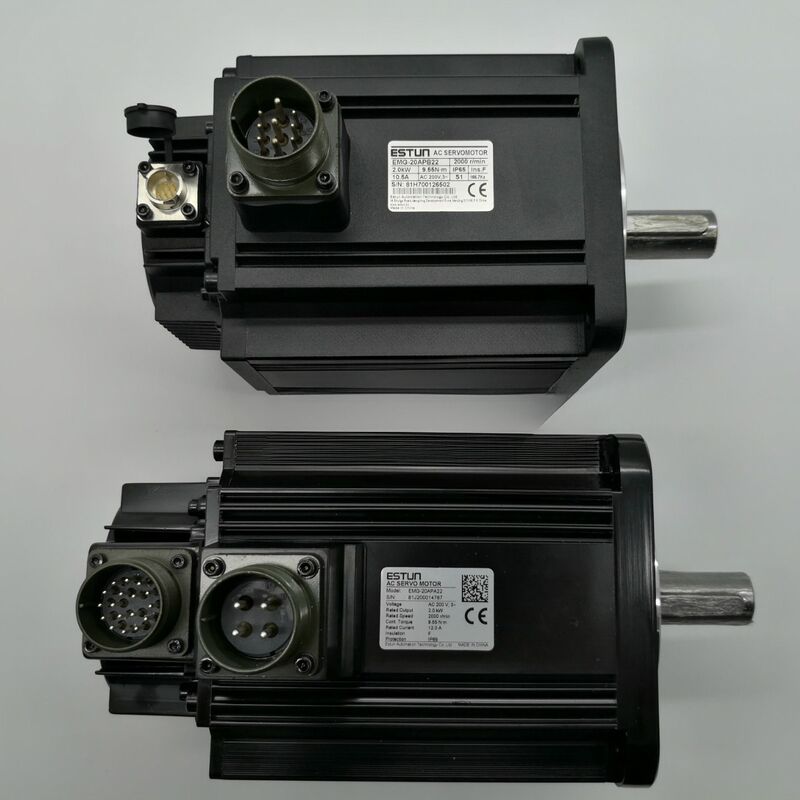

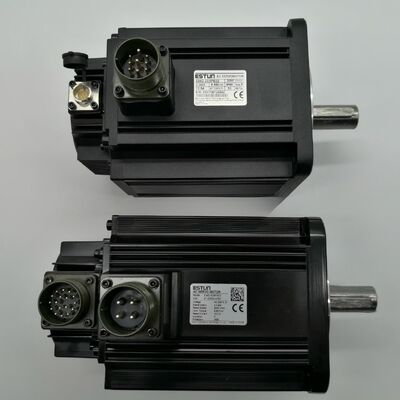

Large Image : Panasonic Estun EMG-20APA22 2.0kW High Torque AC Servo Motor IP65 Rated for Industrial Applications

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Certification:	CE UL ROSH
Model Number:	EMG-20APA22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Panasonic Estun EMG-20APA22 2.0kW High Torque AC Servo Motor IP65 Rated for Industrial Applications

Description

Condition:

Original Brand New

Warranty:

One Year

Highlight:

2KW AC servo motor

ESTUN AC servo motor

EMG-20APA22 servo motor

Panasonic Estun EMG-20APA22 2.0kW AC Servo Motor | High Torque 2000W

EMG-20APA22 | 2.0kW (2000W) High-Power AC Servo Motor

The EMG-20APA22 is a high-torque, industrial-grade AC Servo Motor designed for demanding high-power applications. Delivering a robust 2.0kW (2000W) output, this motor is engineered for precision control in heavy-duty environments. It is a cornerstone component for large CNC machine tools, industrial robots, and automated production lines that require consistent torque and high dynamic response.

Built with high-grade magnetic materials and a rugged enclosure, the EMG-20APA22 ensures long-term operational stability even under high-load conditions, making it the premier choice for both new system builds and critical legacy replacements.

Technical Specifications

Feature	Specification
Model Number	EMG-20APA22
Rated Output	2.0 kW (2000 W)
Rated Voltage	200 V - 220 V AC
Rated Torque	9.55 N*m (High Torque Output)
Peak Torque	28.6 N*m (300% Peak Capacity)
Rated Speed	2000 r/min (Optimized for Torque)
Max Speed	3000 r/min
Encoder Type	20-bit or 17-bit Absolute/Incremental
Protection Rating	IP65 (Dust-proof and water-resistant)
Inertia Type	Medium/High Inertia (Superior Load Matching)

Why Choose the EMG-20APA22?

Exceptional Torque Performance

With a rated torque of 9.55 N*m and a peak torque nearly triple that value, the EMG-20APA22 provides the raw power needed to move heavy mechanical loads with precision. It excels in vertical axis control and heavy milling applications.

Advanced Dynamic Response

Despite its high power, the EMG series is optimized for low cogging torque and high-speed frequency response. This allows for smooth motion at low speeds and rapid, vibration-free acceleration when performing complex interpolation.

Industrial-Grade Reliability (IP65)

Designed for the factory floor, the IP65 rating ensures the motor is protected against dust ingress and water splashes. Its robust internal insulation and thermal management systems allow for continuous 24/7 operation in harsh industrial climates.

High-Resolution Feedback

Equipped with a high-resolution encoder, the EMG-20APA22 offers precise positioning and speed control. This feedback loop is essential for maintaining sub-micron accuracy in CNC machining and synchronized multi-axis robotics.

Primary Industrial Applications

Large-Scale CNC Machinery: Milling, boring, and heavy-duty lathes
Industrial Robotics: High-payload robotic arms and palletizing systems
Material Handling: Large-scale gantry cranes and automated sorting systems
Plastic & Injection Molding: Precise clamp and ejector control
Metal Processing: Bending, shearing, and high-pressure pressing machines

Buy with Confidence

Condition: 100% Brand New & Original (Factory Sealed)
Shipping: Fast global logistics (DHL/FedEx/UPS). Heavy-duty export packaging included
Technical Support: Expert guidance for pairing with matching Servo Drives (e.g., EDB/EDC Series)
Warranty: Full manufacturer-backed warranty with serial number tracking
