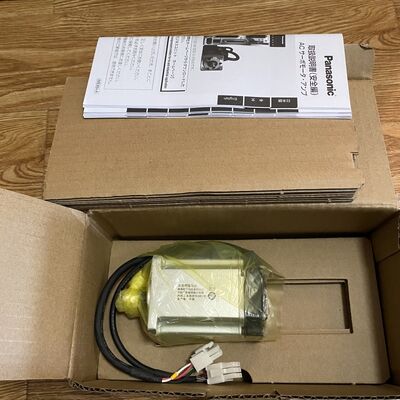

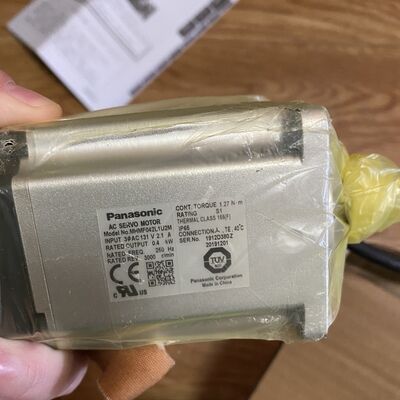

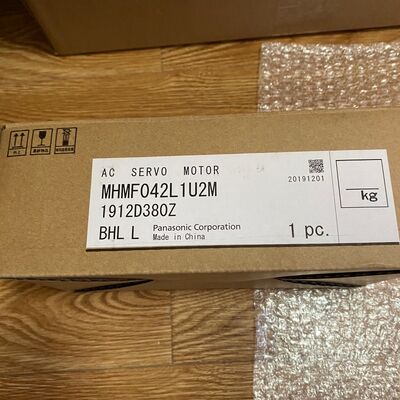

Panasonic MSMF042L1U2M 400W AC Servo Motor Kit with 23-bit Absolute Encoder and IP67-rated for CNC Robotics

Large Image : Panasonic MSMF042L1U2M 400W AC Servo Motor Kit with 23-bit Absolute Encoder and IP67-rated for CNC Robotics

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL
Model Number:	MSMF042L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/months

Contact Now Chat Now

Panasonic MSMF042L1U2M 400W AC Servo Motor Kit with 23-bit Absolute Encoder and IP67-rated for CNC Robotics

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MSMF042L1U2M Panasonic AC Servo Motor , Panasonic AC Servo Motor 400W , MINAS A6 Family Servo Motor

Panasonic MSMF042L1U2M 400W AC Servo Motor Kit 3000rpm 23bit Absolute Encoder for CNC Robotics

Product Overview

The Panasonic MSMF042L1U2M is a high-performance 400W AC Servo Motor designed for the MINAS A6 Series. Engineered for High Inertia applications, this motor provides exceptional motion stability and vibration suppression, making it the ideal choice for driving loads with fluctuating mass or high mechanical resonance.

Equipped with a 23-bit high-resolution encoder and a robust IP67-rated enclosure, the MSMF042L1U2M delivers the precision and durability required for modern, high-speed industrial environments.

Technical Specifications

Feature	Specification
Model Number	MSMF042L1U2M
Series	MINAS A6 (High Inertia Type)
Rated Output	400 W
Voltage	200 V
Rated Torque	1.27 Nm (Peak: 3.82 Nm)
Rated Speed	3000 r/min (Max: 6500 r/min)
Encoder Type	23-bit Absolute/Incremental (8,388,608 pulses/rev)
Shaft Detail	Keyway shaft
Oil Seal	Included (with protective lip)
Protection Rating	IP67 (Dust-tight and Waterproof)

Key Advantages

1. Superior High-Inertia Stability

The MSMF series is specifically tuned to handle larger load-to-motor inertia ratios. This prevents "hunting" and oscillations, ensuring that your machine achieves shorter settling times and smoother transitions during rapid start-stop cycles.

2. Industry-Leading 23-bit Feedback

With over 8 million pulses per revolution, the integrated optical encoder allows for sub-micron positioning. This high resolution significantly reduces torque ripple, resulting in quieter operation and ultra-smooth rotation even at low speeds.

3. Built for Harsh Environments (IP67)

Unlike standard motors, the IP67 rating combined with a high-quality oil seal ensures this motor is completely protected against dust ingress and powerful water/coolant jets. It is built to survive in the toughest CNC and machining conditions.

4. Compact "A6" Engineering

Panasonic has optimized the internal structure to make the A6 series smaller and lighter than the previous A5 generation, without sacrificing power. This allows for more compact machine designs and easier integration into tight spaces.

Common Industrial Applications

Electronic Assembly: High-speed pick-and-place and SMT equipment
Packaging Machinery: Form-fill-seal and labeling systems requiring stable torque
Semiconductor Tools: Precise wafer handling and positioning
CNC & Machine Tools: Feed axis control where stability under load is critical

Purchase Information

Condition: 100% New & Original Panasonic Factory Sealed
Availability: Large stock ready for immediate global dispatch
Technical Support: Expert guidance for pairing with drivers like the MADLT15SF
Global Shipping: Fast air freight options to North America, Europe, and Asia

Part Number	MSMF042L1U2M
Product	Servo Motor
Details	Low inertia, Lead wire type
Product Name	MINAS A6 Family Servo Motor
Features	50 W to 22 kW, Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V, 23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder, Frequency response 3.2 kHz
