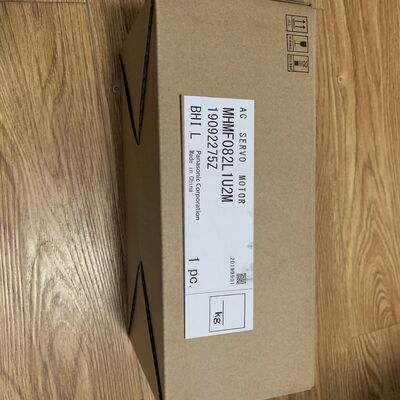

Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship

Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship
Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship
Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship

Large Image :  Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship

Product Details:
Place of Origin: Japan
Brand Name: Panasonic
Certification: CE UL
Model Number: MHMF082L1U2M
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

Original New MHMF082L1U2M Panasonic 0.75kW Servo Motor - Ready to Ship

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

750W Panasonic AC Servo Motor

,

Panasonic AC Servo Motor 3.2KHz

,

MHMF082L1U2M

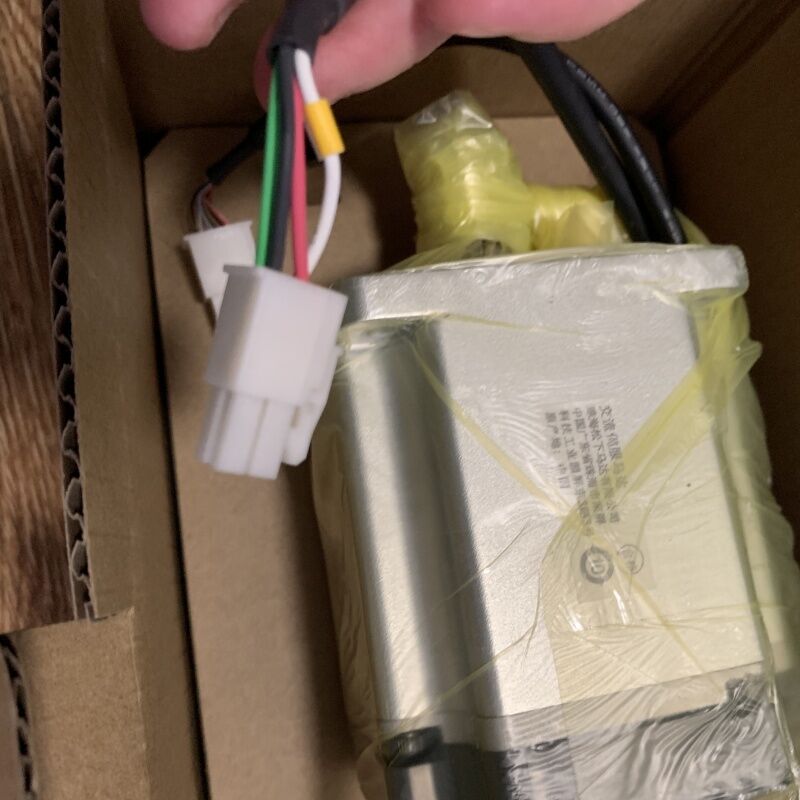

Panasonic MHMF082L1U2M AC Servo Motor | MINAS A6 Series 750W Middle Inertia
The Panasonic MHMF082L1U2M is a high-performance AC servo motor within the MINAS A6 series, specifically engineered for precision and reliability in industrial automation. With a 750W (0.75kW) rated output and a 23-bit absolute/incremental encoder, it offers ultra-fine positioning and superior motion control for applications requiring a balance of power and high-speed response.
Key Features & Benefits
  • High-Resolution 23-bit Encoder: Delivers 8.38 million pulses per revolution, ensuring exceptionally smooth motion and extreme positioning accuracy.
  • Middle Inertia Design: Optimized for stability in applications with fluctuating loads or higher mechanical resonance.
  • IP67 Protection & Oil Seal: Specifically built for harsh environments; the integrated oil seal and IP67 rating protect against dust and water ingress.
  • Compact & Powerful: Features a split-core structure that reduces size and weight while maintaining high torque density (2.39 N·m).
  • High-Speed Frequency Response: Achieving up to 3.2 kHz, significantly reducing settling time for fast-cycle machinery.
Typical Applications
  • Packaging Systems: High-speed labeling and filling control.
  • Textile Machinery: Precise tension and feed control.
  • Electronic Assembly: Pick-and-place robots and SMT machines.
  • Machine Tools: Small CNC milling and drilling axis.
Product Specifications
Item Specifications
Part Number MHMF082L1U2M
Product Details High inertia, Lead wire type
Family Name MINAS A6
Series MHMF Series
Type High inertia
Protection Class IP65
Flange Size 80 mm sq.
Motor Lead-out Configuration Lead wire
Rated Output 750 W
Rated Current 3.8 A rms
Holding Brake without
Mass 2.3 kg
Oil Seal with
Shaft Key-way, center tap
Rated Torque 2.39 N·m
Continuous Stall Torque 2.86 N·m
Momentary Max. Peak Torque 8.36 N·m
Max. Current 18.8 A 0-p
Rated Rotational Speed 3000 r/min
Max. Rotational Speed 6000 r/min
Inertia of Rotor 1.56 ×10⁻⁴ kg·m²
Recommended Inertia Ratio 20 times or less
Rotary Encoder 23-bit Absolute/Incremental system
Rotary Encoder Resolution 8,388,608
Permissible Load
Item Specifications
During Assembly: Radial Load P-direction 686 N
During Assembly: Thrust Load A-direction 294 N
During Assembly: Thrust Load B-direction 392 N
During Operation: Radial Load P-direction 392 N
During Operation: Thrust Load A, B-direction 147 N
Applicable Driver
Part Number Series Type I/F Classification Frame Supply Voltage
MCDLN35NE A6NE series RTEX, Ultra high-speed Network (Basic type) RTEX C-Frame Single/3-phase 200 V
MCDLN35SE A6SE series Position control type Pulse train only C-Frame Single/3-phase 200 V
MCDLN35SG A6SG series RS485/RS232 Communication type Pulse, Modbus (RS485 /RS232) C-Frame Single/3-phase 200 V
MCDLT35NF A6NF series RTEX, Ultra high-speed Network type (Multi type) RTEX C-Frame Single/3-phase 200 V
MCDLT35SF A6SF series Multifunction type Analog /Pulse, Modbus (RS485 /RS232) C-Frame Single/3-phase 200 V
Specifications and design of the products are subject to change without notice for product improvement.
