PEPPERL+FUCHS Resistance Repeater KCD2-RR2-Ex1 1-channel Isolated Barrier

Large Image : PEPPERL+FUCHS Resistance Repeater KCD2-RR2-Ex1 1-channel Isolated Barrier

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KCD2-RR2-Ex1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

PEPPERL+FUCHS Resistance Repeater KCD2-RR2-Ex1 1-channel Isolated Barrier

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries

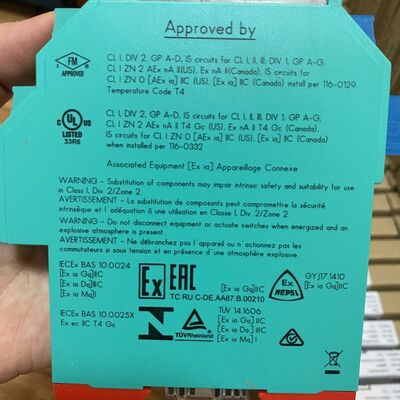

Certificate:	CE ISO TUV
Highlight:	1-channel isolated safety barrier , PEPPERL+FUCHS resistance repeater , KCD2-RR2-Ex1 intrinsic safety barrier

PEPPERL+FUCHS Resistance Repeater KCD2-RR2-Ex1 1-channel Isolated Barrier

Product Overview

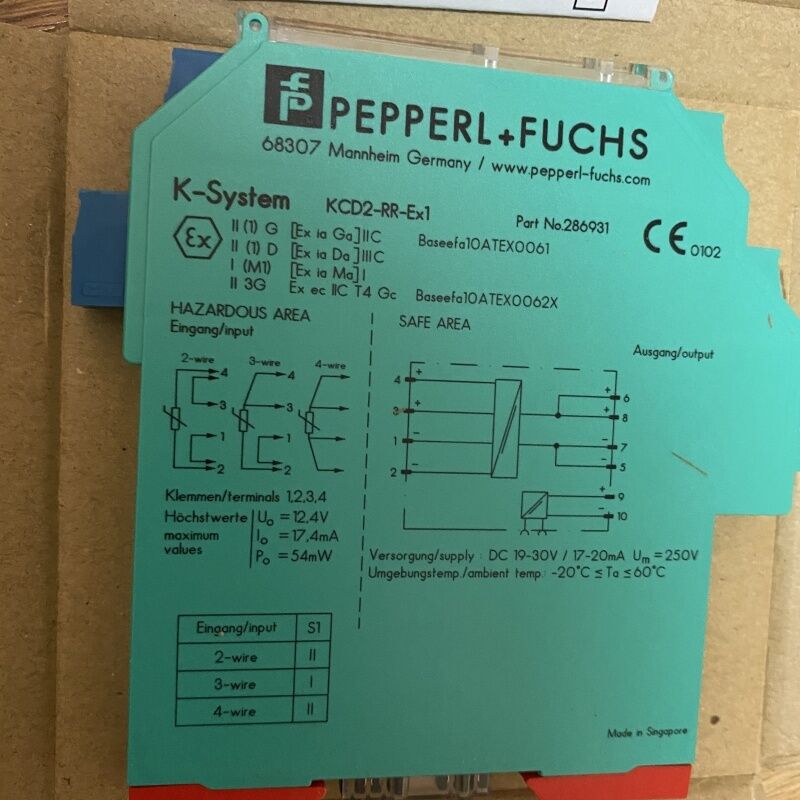

The Resistance Repeater KCD2-RR2-Ex1 is a 1-channel isolated barrier designed for intrinsic safety applications in hazardous areas. This precision instrument transfers resistance values from RTDs or potentiometers to safe areas with exceptional accuracy.

Key Specifications

24 V DC power supply via Power Rail
Resistance and RTD input (Pt100, Pt500, Pt1000)
Resistance output with 0.1% accuracy
Line fault detection (LFD) for Pt100 sensors
Compact housing width of 12.5 mm
Safety Integrity Level: Up to SIL 2 (SC 3) according to IEC/EN 61508

Functional Capabilities

This isolated barrier supports 2-, 3-, or 4-wire connection techniques depending on required accuracy levels. The input card of the control system measures the same load as if it were connected directly to the resistance in the hazardous area, ensuring reliable and accurate data transmission.
