KFD2-GUT-1.D P+F Safety Barrier Temperature Converter With Trip Values PEPPERL+FUCHS Zener Barrier

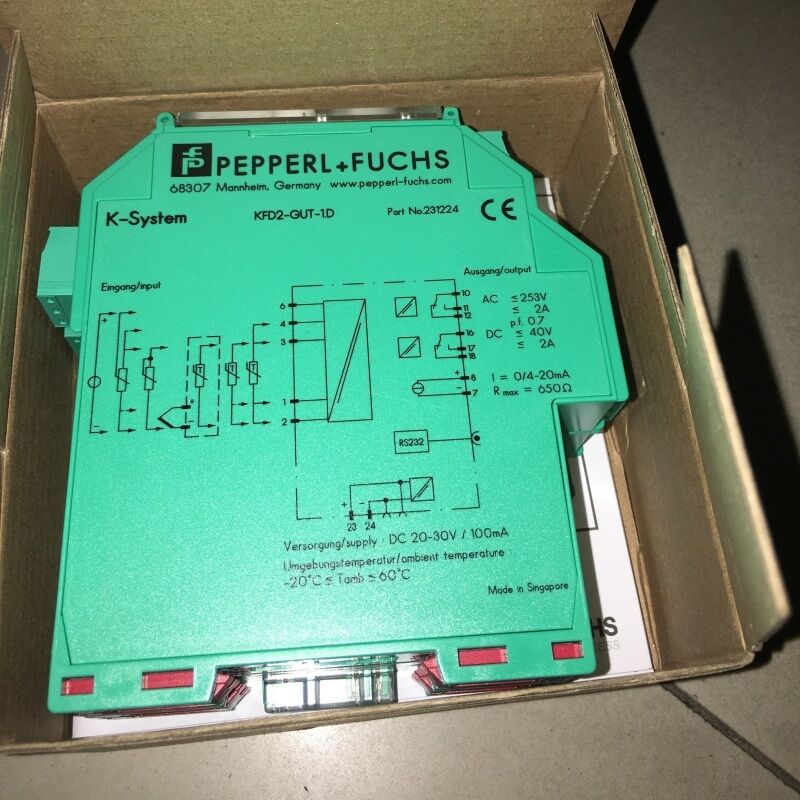

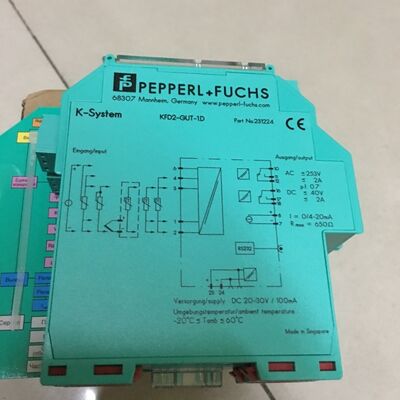

PEPPERL+FUCHS Temperature Converter with Trip Values KFD2-GUT-1.D

1-channel signal conditioner

24 V DC supply (Power Rail)

Thermocouple, RTD, potentiometer or voltage input

Redundant TC input

Current output 0/4 mA ... 20 mA

2 relay contact outputs

Configurable by PACTware or keypad

Line fault (LFD) and sensor burnout detection

Up to SIL 2 acc. to IEC 61508/IEC 61511

Function

This signal conditioner provides the galvanic isolation beetween field circuits and control circuits.

The device converts the signal of a resistance thermometer, thermocouple, potentiometer, or voltage source to a proportional output current. It also provides a relay trip value.

The removable terminal block K-CJC-** is available as an accessory for internal cold junction compensation of thermocouples.

A fault is signalized by LEDs acc. to NAMUR NE44 and a separate collective error message output.

The device is easily configured by the use of the PACTware configuration software.

For additional information, refer to the manual
