Tamagawa TS2610N171E64 Smartsyn Brushless Resolver, 1X-BRX, Size 10, 7Vrms 10kHz, ±10 arcmin Accuracy, for Servo Motor Feedback

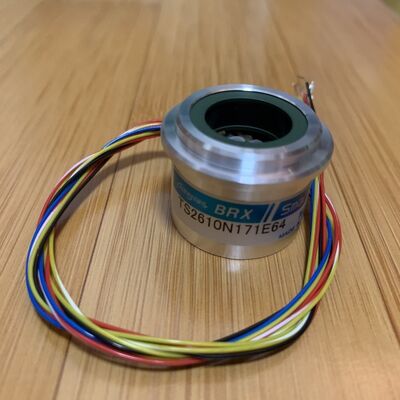

Large Image : Tamagawa TS2610N171E64 Smartsyn Brushless Resolver, 1X-BRX, Size 10, 7Vrms 10kHz, ±10 arcmin Accuracy, for Servo Motor Feedback

Product Details:

Place of Origin:	Japan
Brand Name:	Tamagawa
Certification:	UL CE ROSH
Model Number:	TS2610N171E64

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Tamagawa TS2610N171E64 Smartsyn Brushless Resolver, 1X-BRX, Size 10, 7Vrms 10kHz, ±10 arcmin Accuracy, for Servo Motor Feedback

Description

Shipping Way:

DHL FedEx Express

Application:

Automation Industries, Oil, Gas, Chemical Industries

Certificate:

CE ISO TUV

Highlight:

Brushless Smartsyn Resolver

Tamagawa Smartsyn Resolver

TS2610N171E64

Tamagawa TS2610N171E64 Smartsyn Brushless Resolver

Product Overview

The Tamagawa TS2610N171E64 is a high-precision brushless resolver from the Smartsyn series, manufactured by Tamagawa Seiki Co., Ltd. This Size 10, 1X-BRX type built-in resolver is designed for absolute position and speed sensing in servo motors, robotics, machine tools, and industrial automation equipment.

Key Specifications

Model	TS2610N171E64
Series	Smartsyn (Brushless Resolver)
Type	1X-BRX (1X multiplication factor)
Size	10 (Built-in type)
Input Voltage	AC 7Vrms
Input Frequency	10 kHz
Accuracy	±10 arcminutes Max
Max Rotation Speed	10,000 rpm
Operating Temperature	-55°C to +155°C
Mass	0.04 kg (40g)

Key Features

High Precision Position Sensing

±10 arcminutes accuracy for precise angular position feedback
1X-BRX type - one electrical cycle per mechanical revolution
Provides absolute angle detection without battery backup

Patented Smartsyn Technology

Innovative automatic winding method replaces traditional hand winding
Achieves high productivity, low cost, and consistent quality
Superior electrical properties compared to conventional resolvers

Exceptional Environmental Durability

Wide temperature range: -55°C to +155°C for extreme environments
High vibration resistance: 196 m/s² (20G) at 10-500Hz
High shock resistance: 981 m/s² (100G) for 6ms
Humidity resistance: 90% RH or above at 60°C

High Reliability & Maintenance-Free

Brushless design - no brushes means virtually unlimited life
No electrical or optical parts to wear out
Maintenance-free operation

Technical Specifications

Electrical Characteristics

Parameter	Value
Input Voltage	7 Vrms at 10 kHz
Transformation Ratio	0.5 ±5%
Electrical Error	±10 arcmin Max
Residual Voltage	20 mVrms Max
Phase Shift	+5° Nominal

Environmental Characteristics

Parameter	Rating
Operating Temperature	-55°C to +155°C
Vibration	196 m/s² (20G), 10-500Hz
Shock	981 m/s² (100G), 6ms
Dielectric Strength	AC 500Vrms / 1 minute

Applications

Industry	Application Examples
Servo Motors	Position and speed feedback for AC servo systems
Industrial Robotics	Joint angle sensing for welding robots, assembly robots
Machine Tools	Spindle positioning, CNC axis control
Aerospace	Actuator feedback, control systems
Medical Equipment	Precision positioning stages

Why Choose Smartsyn Resolvers?

High Reliability: Extremely long life assured by mechanical parts structure
Harsh Environment Ready: Withstands extreme temperatures, vibration, and shock
Absolute Position Output: No need for battery backup or homing routine
Noise Immunity: Robust against electrical noise for long-distance transmission
Compact Integration: Built-in type design minimizes motor housing size
Cost Effective: Automated winding process reduces cost while maintaining quality

Ordering Information

Manufacturer	Tamagawa Seiki Co., Ltd. (Japan)
Part Number	TS2610N171E64
Product Status	Active / Current Model
Country of Origin	Japan
