TS2650N11E78 Tamagawa Encoder Smartsyn Brushless Resolvers

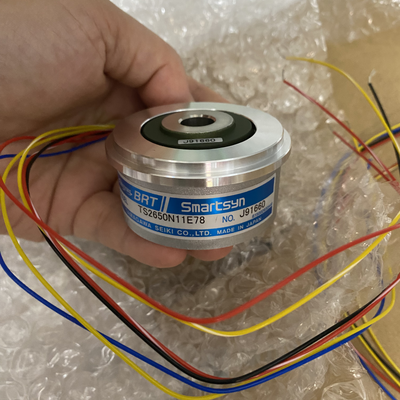

Large Image : TS2650N11E78 Tamagawa Encoder Smartsyn Brushless Resolvers

Product Details:

Model Number:	TS2650N11E78

Contact Now Chat Now

TS2650N11E78 Tamagawa Encoder Smartsyn Brushless Resolvers

Description

Shipping Way:

DHL FedEx Express

Application:

Automation Industries, Oil, Gas, Chemical Industries

Certificate:

CE ISO TUV

Highlight:

Tamagawa Encoder Smartsyn

TS2650N11E78 Tamagawa Encoder

Brushless resolvers (Smartsyn) TS2650N11E78

Features

● Wide temperature range
［Temperature Range -55 to +155℃ (※)］
※Built-in type only

● Superior environment resistance
・Vibration: 196 m/s2{20 G} at 10 Hz. 500 Hz, for 2 hours to each of three axes.
・Shock: 981 m/s2{100 G} for 6 ms, 3 times to each of 6 axes, 18 times in total

● High speed rotation

● High reliability
Does not use electrical parts, optical parts. Maintenance-free for its brush-less feature.

● Absolute position detection

● Long-distance transmission
Resistant to noise and long distance transmission is possible.

● Capable of compact incorporation
The use of built-in types of Smartsyn minimizes housings of motors. Best suited for compact design

● Small & Light Weight

● Multipolarization is possible by increasing the multiplication factor ofangle.

Specifications(Built-in types)

Size		06	08	10
Model		TS2603N21E64	TS2605N1E64	TS2610N171E64
Type		1X-BRX	1X-BRX	1X-BRX
Primary		R1-R2(Rotor)	R1-R2(Rotor)	R1-R2(Rotor)
Input voltage		AC 7 Vrms 10 kHz	AC 7 Vrms 10 kHz	AC 7 Vrms 10 kHz
Transformation ratio [K]		0.5±5 %	0.5±5 %	0.5±5 %
Electrical error (Accuracy)		±20' Max	±10' Max	±10' Max
Residual voltage		50 mVrms Max	20 mVrms Max	20 mVrms Max
Phase shift		＋20 °±10 °	＋10 ° Nom	+5 ° Nom
Input impedance	Zro	120 Ω±20 %	140 Ω±20 %	160 Ω Nom
Output impedance	Zso	―	―	160 Ω Nom
Output impedance	Zss	130 Ω±20 %	120 Ω±20 %	130 ΩNom
Allowable rotation speed		30,000min-1{rpm}	40,000 min-1{rpm}	10,000 min-1{rpm}
Operating temperature range		-55 ℃ to +155 ℃	-55 ℃ to +155 ℃	-55 ℃ to +155 ℃
Dielectric strength		AC250Vrms1 min	AC500 Vrms1 min	AC500 Vrms1 min
Insulation resistance		10 MΩMin	100 MΩ Min	10 MΩMin
Mass		0.015 kg Nom	0.03 kg Nom	0.04 kg Nom
Output voltage equation		+type	-type	-type

※Nom:Nominal value
　REF : Reference value

Size		15		21	34
Model		TS2620N21E11	TS2620N271E14	TS2640N321E64	TS2660N31E64
Type		1X-BRX	1X-BRX	1X-BRX	1X-BRX
Primary		R1-R2(Rotor)	R1-R2(Rotor)	R1-R2(Rotor)	R1-R2(Rotor)
Input voltage		AC7 Vrms 10 kHz	AC10 Vrms 4.5 kHz	AC7 Vrms 10 kHz	AC7 Vrms 10 kHz
Transformation ratio [K]		0.5±5 %	0.5±5 %	0.5±5 %	0.5±10 %
Electrical error (Accuracy)		±10' Max	±10' Max	±10' Max	±10' Max
Residual voltage		20 mVrms Max	20 mVrms Max	20 mVrms Max	―
Phase shift		0 ° REF	+8 ° Nom	-5 °±10 ° Nom	0 °±10 °
Input impedance	Zro	70+j100 Ω Nom	90+j180 Ω Nom	100+140 Ω±15 %	150 Ω REF
Output impedance	Zso	180+j300 Ω Nom	220+j350 Ω Nom	140+j270 Ω±15 %	―
Output impedance	Zss	175+j275 Ω Nom	210+j300 Ω Nom	120+j240 Ω±15 %	860 Ω REF
Allowable rotation speed		10,000 min-1{rpm}	10,000 min-1{rpm}	10,000 min-1{rpm}	6,000 min-1{rpm}
Operating temperature range		-55 ℃ to +155 ℃	-55 ℃ to +155 ℃	-55 ℃ to ＋150 ℃	-55 ℃ to ＋155 ℃
Dielectric strength		AC500 Vrms 1 min	AC500 Vrms 1 min	AC500 Vrms 1 min	AC500 Vrms 1 min
Insulation resistance		100 MΩ Min	100 MΩ Min	100 MΩ Min	100 MΩ Min
Mass		0.065 kg Max	0.18 kg Max	0.22 kg±0.1 kg	1.0 kg Max
Output voltage equation		+type	+type	+type	+type

※Nom:Nominal value
　REF : Reference value

Size		21	34
Model		TS2640N321E64	TS2660N31E64
Type		1x-BRX
Primary		R1-R2(Rotor)
Input voltage		AC7 Vrms 10 kHz	AC7 Vrms 10 kHz
Transformation ratio [K]		0.5±5 %	0.5±10 %
Electrical error (Accuracy)		±10' Max	±10' Max
Residual voltage		20 mVrms Max	―
Phase shift		+1 ° Nom	0 °±10 °
Input impedance	Zro	100+j140 Ω±15 %	150 Ω REF
Output impedance	Zso	140+j270 Ω±15 %	―
Output impedance	Zss	120+j240 Ω±15 %	860 Ω REF
Allowable rotation speed		10000 min-1{rpm}	6000 min-1{rpm}
Operating temperature range		-55 °C∼+150 °C	-55 °C∼+155 °C
Dielectric strength		500 V AC rms for one minute	500V AC rms for one minute
Insulation resistance		100 MΩ Min	100 MΩ Min
Mass		0.28 kg Nom	1.0 kg Max
Output voltage equation		+type	+type

※Nom:Nominal value
　REF : Reference value

Outline(Built-in types)
