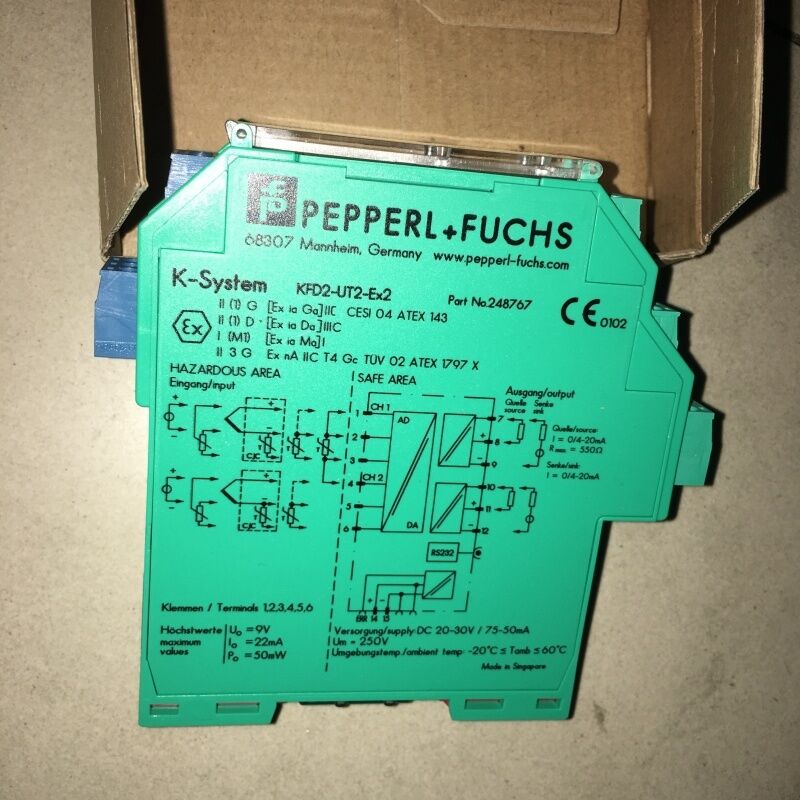

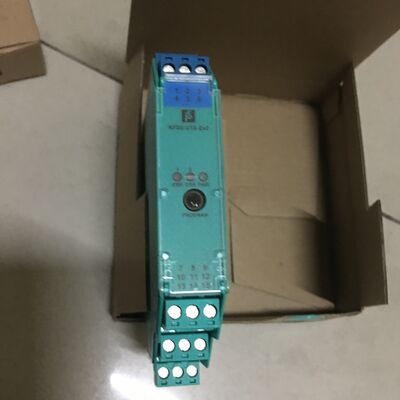

KFD2-UT2-Ex2 PEPPERL+FUCHS Safety Barrier Universal Temperature Converter

Universal Temperature Converter KFD2-UT2-Ex2

2-channel isolated barrier

24 V DC supply (Power Rail)

Thermocouple, RTD, potentiometer or voltage input

Usable as signal splitter (1 input and 2 outputs)

Current output 0/4 mA ... 20 mA

Sink or source mode

Configurable by PACTware

Line fault (LFD) and sensor burnout detection

Up to SIL 2 acc. to IEC/EN 61508 / IEC/EN 61511

This isolated barrier is used for intrinsic safety applications.

The device converts the signal of a resistance thermometer, thermocouple, or potentiometer to a proportional output current. The device can also be configured as a signal splitter.

The removable terminal block K-CJC-** is available as an accessory for internal cold junction compensation of thermocouples. A fault is signalized by LEDs acc. to NAMUR NE44 and a separate collective error message output.

The device is easily configured by the use of the PACTware configuration software.
