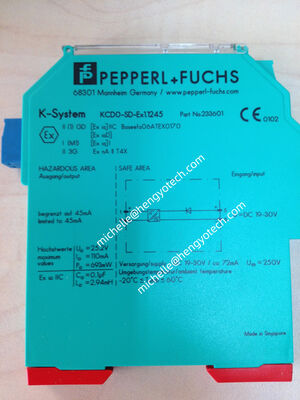

P+F Safety Barrier Solenoid Driver KCD0-SD-Ex1.1245

Large Image : P+F Safety Barrier Solenoid Driver KCD0-SD-Ex1.1245

Product Details:

Place of Origin:	Singapore
Brand Name:	PEPPERL+FUCHS
Model Number:	KCD0-SD-Ex1.1245

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

P+F Safety Barrier Solenoid Driver KCD0-SD-Ex1.1245

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	P+F safety barrier solenoid driver , explosion-proof solenoid driver , KCD0-SD-Ex1.1245 surge protection

P+F Safety Barrier Solenoid Driver KCD0-SD-Ex1.1245

Product Overview

The PEPPERL+FUCHS Solenoid Driver KCD0-SD-Ex1.1245 is a specialized isolated barrier designed for intrinsic safety applications in hazardous areas.

1-channel isolated barrier for safety applications
24 V DC loop-powered supply
Current limit: 45 mA at 12 V DC
Compact housing width: 12.5 mm
Certified up to SIL 3 according to IEC/EN 61508

Functional Description

This isolated barrier provides safe power distribution to solenoids, LEDs, and audible alarms located in hazardous areas. The device operates as a loop-powered system, where the output energy is derived directly from the input signal.

The output signal features a resistive characteristic, meaning both output voltage and current are dynamically dependent on the connected load and input voltage conditions. At maximum capacity, the device delivers 12 V at 45 mA for hazardous area applications.

Product Type	Solenoid Driver / Isolated Barrier
Channels	1-channel isolated
Power Supply	24 V DC (loop powered)
Output Capacity	45 mA at 12 V DC
Safety Certification	SIL 3 (IEC/EN 61508)
Housing Dimensions	12.5 mm width
