Estun EMG-15APA22 1.5kW 200V AC Servo Motor with IP65 Protection and Medium Inertia

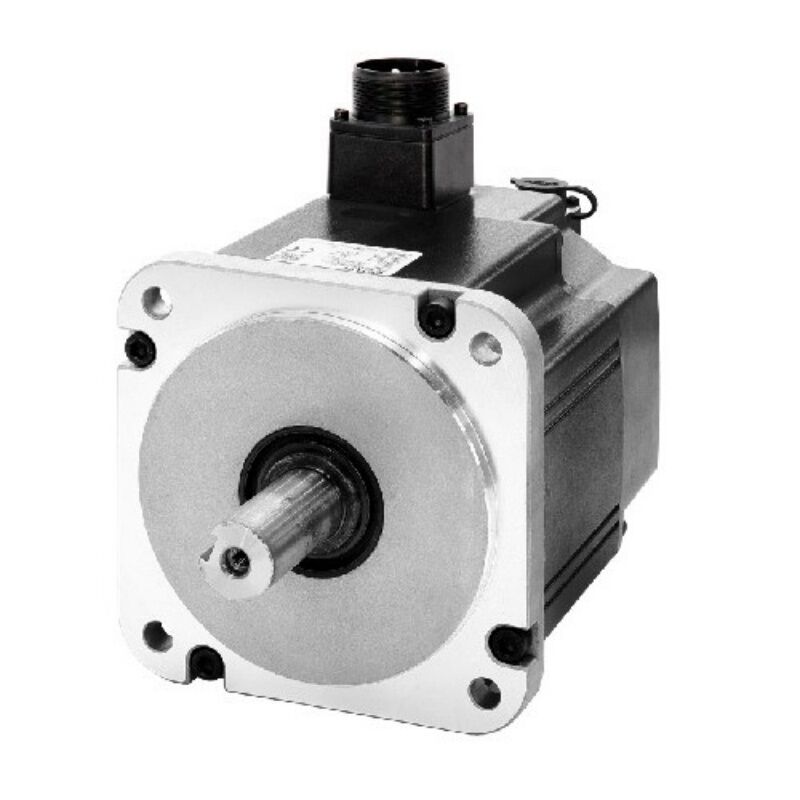

Large Image : Estun EMG-15APA22 1.5kW 200V AC Servo Motor with IP65 Protection and Medium Inertia

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	EMG-15APA22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

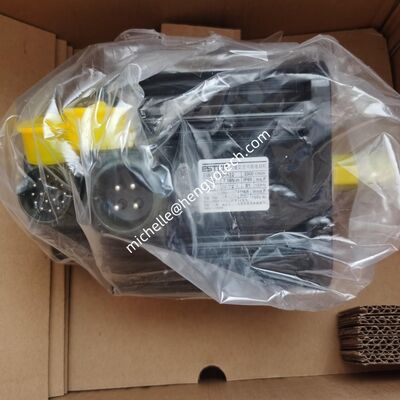

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Estun EMG-15APA22 1.5kW 200V AC Servo Motor with IP65 Protection and Medium Inertia

Description

Condition:	Original Brand New	Warranty:	One Year
Protection Grade:	IP65/IP67	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	EMG-15APA22 , AC Servo Motor Driver ESTUN , 1.5KW AC Servo Motor Driver

Estun EMG-15APA22 1.5kW AC Servo Motor

Product Overview

The Estun EMG-15APA22 is a high-performance AC servo motor from Estun's renowned EMG series. This 1.5kW (1500W) model features a medium inertia rotor design, making it particularly suitable for high-speed driving of mechanical feed axes in demanding industrial environments.

Key Differentiators:

UL Certified under file number E466402 - simplifies North American market entry
IP65 protection as standard configuration - suitable for harsh environments
Medium inertia design - optimized for high-speed feed axis applications
300% overload capacity - handles demanding acceleration requirements

Technical Specifications

General Specifications
Manufacturer	Estun Automation Co., Ltd.
Series	EMG Series - Medium Inertia
Product Type	AC Servo Motor
Certifications	UL Certified (File E466402), CE Certified
Protection Class	IP65 (standard configuration)
Flange Size	130mm square
Cooling Method	Fully enclosed, self-cooled
Insulation Class	Class F

Power & Torque
Rated Power	1.5 kW (1500W)
Rated Torque	7.16 N·m
Peak Torque (Momentary Max.)	21.5 N·m (300% overload capacity)
Rated Speed	2000 r/min (RPM)
Maximum Speed	3000 r/min (RPM)

Electrical Specifications
Voltage Rating	200 VAC
Encoder Type	2500 P/R wire-saving incremental encoder (standard)
Optional Encoders	17-bit absolute, 20-bit absolute, resolver

Environmental Specifications
Operating Temperature	0°C to +40°C
Storage Temperature	-20°C to +80°C
Operating/Storage Humidity	5% to 95% RH (with no condensation)
Vibration Resistance	4.9 m/s²
Impact Resistance	19.6 m/s²
Altitude	1000m or less

Core Features & Benefits

Medium Inertia Design

Optimized for high-speed driving of mechanical feed axes with enhanced stability and reduced settling time.

300% Overload Capacity

21.5 N·m peak torque handles demanding acceleration requirements and sudden load fluctuations.

High-Speed Operation

3000 RPM maximum speed supports high-speed machining and fast positioning applications.

IP65 Environmental Protection

Protected against dust ingress and low-pressure water jets for harsh industrial environments.

Multiple Feedback Options

Standard 2500 P/R incremental encoder with optional 17/20-bit absolute encoders and resolver.

UL Certification

UL certified under file E466402 for North American market compliance.

Applications

Primary Applications:

Machine Tools - Feed axis drives for milling machines, lathes, grinding machines, and CNC equipment
Material Handling - Conveyor systems, palletizers, and automated storage/retrieval systems
Food Processing Machinery - IP65-rated construction suitable for wash-down environments
Textile Machinery - High-speed winding, spinning, and yarn tension control systems

Additional Applications:

Packaging Machinery - Wrapping, filling, and labeling equipment
General Automation - Assembly line indexers and positioning stages
Press Brakes - Servo motor applications in metal forming equipment
Robotics - Medium-sized robot arms and articulated joints
Semiconductor Equipment - Wafer handling and inspection systems

Compatible Servo Drives

Driver Series	Model	Description
EDB Series	EDB-15APA	Standard drive for EMG series
ProNet Series	ProNet-15AMA	High-performance drive
ProNet-E Series	ProNet-E-15A	Cost-effective pulse train control

Frequently Asked Questions

Q: What is the difference between EMG-15APA22 and EMG-15ADA22?
A: The EMG-15APA22 features a 2500 P/R incremental encoder (standard), while the EMG-15ADA22 features an absolute encoder.

Q: Does this motor have a holding brake?
A: No, the EMG-15APA22 is without holding brake. For brake-equipped version, refer to EMG-15AFB22.

Q: What driver is compatible with EMG-15APA22?
A: Compatible drivers include EDB-15APA (standard), ProNet-15AMA (high-performance), and ProNet-E-15A (cost-effective pulse train).

Q: Is the motor IP65 rated?
A: Yes, IP65 protection rating is standard configuration for the EMG series.

For complete technical specifications and detailed application guidance, please refer to the official Estun datasheet.
