Estun EMJ-04APB22 400W AC Servo Motor with 3000 RPM and 2500 CPR Incremental Encoder for CNC and Packaging Machines

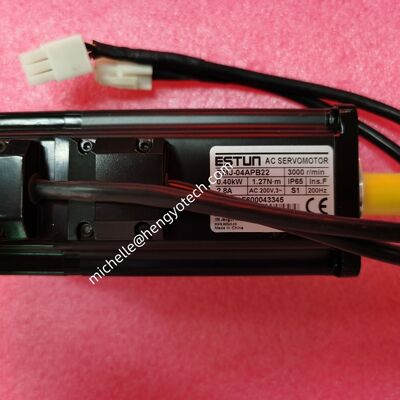

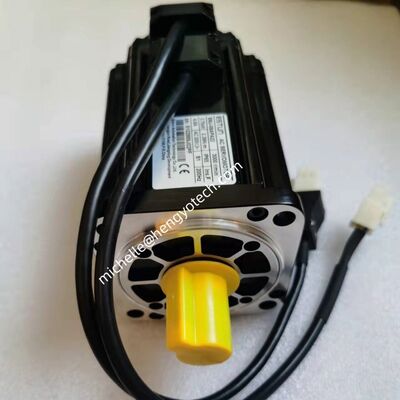

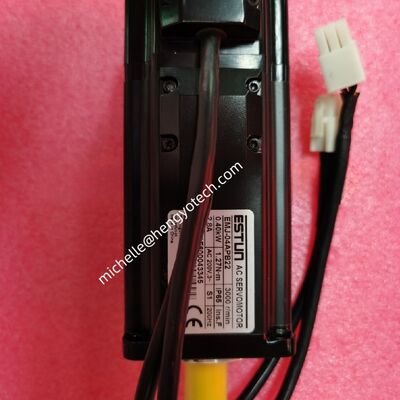

Large Image : Estun EMJ-04APB22 400W AC Servo Motor with 3000 RPM and 2500 CPR Incremental Encoder for CNC and Packaging Machines

Product Details:

Place of Origin:	CHINA
Brand Name:	ESTUN
Model Number:	EMJ-04APB22

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Estun EMJ-04APB22 400W AC Servo Motor with 3000 RPM and 2500 CPR Incremental Encoder for CNC and Packaging Machines

Description

Condition:

Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine

Highlight:

400W AC Servo Motor

7000r/min Estun Servo Motor

IP65 Protection AC Servo Motor

Estun EMJ-04APB22 400W AC Servo Motor - 3000 RPM 200V 2500 CPR Incremental Encoder

The Estun EMJ-04APB22 is a high-performance AC servo motor from Estun's EMJ Series, designed for industrial automation applications requiring precise speed and position control. With a rated output of 400W and 200V AC voltage specifications, this permanent magnet synchronous motor (PMSM) delivers reliable torque density and responsive control in compact automation systems.

Key Features & Benefits

High-Resolution Incremental Encoder - Equipped with a 2500 CPR (13-bit resolution, 4096 PPR) incremental encoder with A/B/Z three-phase signal output, providing precise positional feedback for accurate motion control
3000 RPM Rated Speed - Rated speed of 3000 RPM with maximum speed up to 4500 RPM, offering flexibility for various application requirements. The motor has 4 pole pairs, giving an electrical frequency of 200Hz at rated speed
400W Power Output at 200V - Rated current of 2.7A, optimized for light-to-medium duty automation tasks with balanced power efficiency and performance
High Torque Output - Rated torque of 1.27 N*m (180 oz-in), providing sufficient torque for a wide range of positioning and motion control applications
Compact Frame Size - 60mm flange design with lightweight construction, ideal for space-constrained automation equipment
PMSM Technology - As a permanent magnet synchronous motor, it delivers high efficiency, excellent dynamic response, and smooth operation across the speed range
Electrical Parameters Pre-Characterized - Factory-characterized stator resistance (Rs = 2.20Ω) and inductance (Ls = 8.72 mH) enable quick setup with compatible servo drives

Technical Specifications

Parameter	Specification
Brand	Estun
Series	EMJ Series
Part Number	EMJ-04APB22
Motor Type	AC Servo Motor (PMSM)
Rated Output	400 W
Rated Voltage	200 V AC
Rated Current	2.7 A
Rated Speed	3000 RPM
Maximum Speed	4500 RPM
Rated Torque	1.27 N*m (180 oz-in)
Number of Poles	8 poles (4 pole pairs)
Electrical Frequency (Rated)	200 Hz @ 3000 RPM
Stator Resistance (Rs)	2.20 Ω
Stator Inductance (Ls)	8.72 mH
Encoder Type	Incremental Encoder
Encoder Resolution	2500 CPR (13-bit, 4096 PPR)
Rotor Inertia	0.00028 kg*m²
Flange Size	60 mm × 60 mm
Protection Rating	IP65 (typical for EMJ series)
Connector Type	10-pin M12 aviation connector
Pin Assignment	IEC 60034-7 compliant (L1/L2/L3/U/V/W, PE, encoder A/B/Z/VCC/GND)
Operating Temperature	0°C - 40°C
Insulation Class	Class F
Winding Thermal Resistance	0.68 K/W

Compatible Drivers

Driver Part Number	Series	Description
EDC-04APE	EDC Series	400W driver, incremental encoder input
EDB-04APA	EDB Series	400W driver, incremental encoder input
ProNet-04AMA	ProNet Series	400W driver, high-performance series

Third-Party Drive Compatibility

The motor uses a 10-pin M12 aviation connector with pin assignment compliant with IEC 60034-7, allowing integration with third-party drives from manufacturers including Panasonic (MINAS A4/A5/A6 Series), Mitsubishi, Inovance (Huichuan), and other drives supporting 2500 PPR incremental encoder input.

Typical Applications

Pick-and-Place Machines - Rapid acceleration/deceleration cycles for high-speed component placement
Packaging Machinery - Labeling, sealing, cartoning, and bagging equipment
Electronic Assembly - Surface mount technology (SMT) and PCB assembly systems
Small Robotics - SCARA robots and articulated arms requiring low-inertia control
Labeling Machines - Precise position control for label dispensing and application
Conveyor Systems - Indexing conveyors and belt-driven positioning systems
Textile Machinery - Yarn feeding and tension control applications
Food Processing Machinery - Portioning, slicing, and filling equipment

EMJ Series Overview

Model	Power	Torque	Speed (Rated/Max)	Compatible Driver
EMJ-02APA22	200W	0.64 N*m	3000/4500	EDC-02APE / EDB-02APA
EMJ-04APB22	400W	*1.27 Nm**	3000/4500	EDC-04APE / EDB-04APA
EMJ-08APA22	750W	2.39 N*m	3000/4500	EDC-08APE / EDB-08APA
EMJ-10APA22	1.0kW	3.18 N*m	3000/4500	EDB-10APA

Important Notes

Genuine Estun Product - All units are authentic Estun (埃斯顿) industrial automation products
Encoder Type - This model uses an incremental encoder (13-bit, 2500 CPR), not an absolute encoder. Please verify application compatibility before ordering
Third-Party Integration - When using with non-Estun drives, parameter P0-01 must be set to pulse control mode (value = 1) and encoder resolution (P1-10) to 4096
New/Factory Sealed - Units are new, factory-sealed products unless otherwise specified
Image Notice - Product image is representative; actual product may vary

Why Choose the Estun EMJ-04APB22?

Engineered for reliability and performance, the EMJ-04APB22 delivers consistent operation in demanding industrial environments. Its low-inertia rotor design minimizes settling time, enabling faster cycle rates and increased production output. The 2500 CPR incremental encoder provides accurate positional feedback for precise motion control applications.
