Panasonic MSMA102P1G 1kW Low Inertia AC Servo Motor with 2500 PPR Encoder - MINAS A4 Series

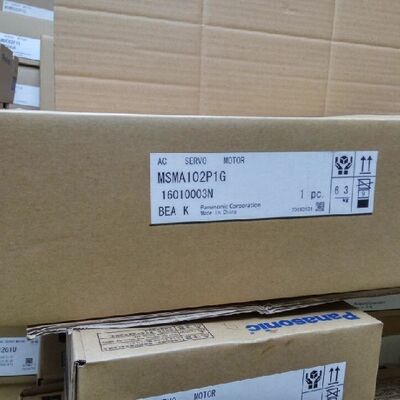

Large Image : Panasonic MSMA102P1G 1kW Low Inertia AC Servo Motor with 2500 PPR Encoder - MINAS A4 Series

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMA102P1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately upon payment received
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

Panasonic MSMA102P1G 1kW Low Inertia AC Servo Motor with 2500 PPR Encoder - MINAS A4 Series

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Application:

CNC Machine, Packaging Machine

Shipping Way:

DHL FedEx

Highlight:

1KW AC Servo Motor

Low inertia MINAS A4 Family Servo Motor

IP65 Panasonic Servo Motor

Panasonic MSMA102P1G 1kW AC Servo Motor - MINAS A4 Low Inertia 3000 RPM 2500 PPR Encoder IP65

Product Overview

The Panasonic MSMA102P1G is a high-performance AC servo motor from the MINAS A4 Family, specifically designed for low-inertia applications requiring rapid acceleration and precise positioning. With a rated output of 1000 W (1.0 kW) and 200V AC voltage specifications, this low-inertia motor delivers exceptional responsiveness and efficiency in demanding industrial automation systems.

Key Features & Benefits

Low-Inertia Design - Rotor inertia of 1.69 × 10⁻⁴ kg*m² provides rapid acceleration and deceleration capabilities, ideal for high-cycle applications
High Torque Output - Rated torque of 3.18 N*m (450.3 oz-in) with momentary peak torque up to 9.5 N*m (1345 oz-in)
2500 PPR Incremental Encoder - High-resolution encoder providing precise positional feedback for accurate motion control
3000 RPM Rated Speed - Maximum speed up to 5000 RPM with optimal torque output
Rugged IP65 Protection - Protects against dust and water jets for reliable operation in harsh industrial environments
Key-way Shaft with Oil Seal - Secure torque transmission with protection against lubricant leakage and contamination
200V Power Class - Rated current of 7.2A rms with maximum current of 30.0 A o-p
No Holding Brake - Suitable for applications where vertical axis holding is not required

Technical Specifications

Parameter	Specification
Brand	Panasonic
Family	MINAS A4 Family
Series	MSMA Series (Low Inertia)
Part Number	MSMA102P1G
Product Type	AC Servo Motor
Inertia Type	Low Inertia
Rated Output	1000 W (1.0 kW)
Voltage Specifications	200 V
Rated Current	7.2 A rms
Maximum Current	30.0 A o-p
Rated Speed	3000 r/min
Maximum Speed	5000 r/min
Rated Torque	3.18 N*m (450.3 oz-in)
Momentary Max. Peak Torque	9.5 N*m (1345 oz-in)
Rotor Inertia	1.69 × 10⁻⁴ kg*m²
Encoder Type	Incremental Encoder
Encoder Resolution	2500 PPR
Protection Class	IP65
Shaft Type	Key-way
Oil Seal	With
Holding Brake	Without
Mass	4.5 kg (9.9 lbs)
Flange Dimension	90 mm × 90 mm (3.543" × 3.543")
Shaft Diameter	19 mm (0.748")
Shaft Length	55 mm (2.165")
Mounting Hole Spacing	100 mm (3.937")
Operating Temperature	0 - 40°C
Storage Temperature	-20 - 60°C
Operating Humidity	20% - 85% RH (non-condensing)
Storage Humidity	20% - 85% RH (non-condensing)
Recommended Inertia Ratio	15 times or less
Regenerative Brake Frequency	No limit (within rated torque)
RoHS Compliance	EU RoHS Compliant

Product Status: Discontinued (October 31, 2018)

Permissible Load Ratings

Load Type	During Assembly	During Operation
Radial Load (P-direction)	686 N	392 N
Thrust Load (A-direction)	392 N	147 N
Thrust Load (B-direction)	490 N	147 N

Note: Exceeding these limits may result in bearing failure or reduced motor life.

Part Number Decoding (MSMA Series - Low Inertia)

Digit	Position	Meaning	MSMA102P1G Example
1-4	Series	MSMA (Low Inertia, 200V class)	MSMA
5-6	Rated Output	10 = 1000W (1.0 kW)	10
7	Power Supply	2 = 200V	2
8	Specifications	P = Round shaft, incremental encoder	P
9	Encoder Resolution	1 = 2500 PPR incremental	1
10	Additional Options	G = Without brake, with oil seal	G

Source: Panasonic part number nomenclature

Compatible Drivers (MINAS A4 Series)

Driver Part Number	Series	Type	Description
MBDDT2210	A4 Series	Analog/Pulse	200V, 1kW compatible driver
MCDDT3520	A4 Series	Analog/Pulse	200V, higher power capacity

Please verify driver compatibility with official documentation before ordering. For new designs requiring active products, consider MINAS A5 or A6 Series equivalents.

Typical Applications

Pick-and-Place Machines - High-speed component placement requiring rapid acceleration/deceleration cycles
Surface Mount Technology (SMT) - PCB assembly systems and component mounters
Electronic Assembly Equipment - Precision positioning for circuit board manufacturing
Packaging Machinery - Labeling machines, carton erectors, and bagging equipment
Small Robotics - SCARA robots and articulated arms requiring low-inertia control
CNC Engraving Machines - Precision positioning for small-format machining
Laboratory Automation - Precision fluid handling and sample processing equipment
Conveyor Systems - Indexing conveyors and belt-driven positioning systems
Textile Machinery - Yarn feeding and tension control applications

MINAS A4 Series Overview

Feature	MINAS A4 Advantage
Frequency Response	Up to 1.0 kHz for rapid command tracking
Encoder Resolution	2500 PPR incremental (standard) with 16x multiplication for 16000 PPR effective resolution
Vibration Suppression	Adaptive filtering for minimized settling time
Auto Gain Tuning	Simplified setup with automatic adjustment based on load characteristics
Compact Design	Reduced footprint compared to MINAS A Series
IP65 Protection	Standard on MSMA series for harsh environment operation
