Panasonic MINAS A4 MHMA202P1G 2kW High Inertia Servo Motor 2000 RPM Key-way Shaft With Oil Seal

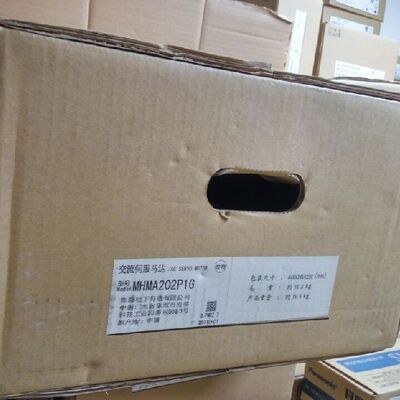

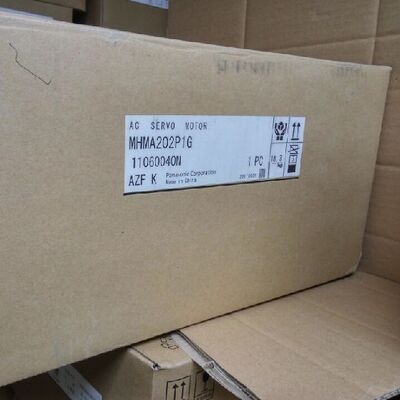

Large Image : Panasonic MINAS A4 MHMA202P1G 2kW High Inertia Servo Motor 2000 RPM Key-way Shaft With Oil Seal

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMA202P1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	ship out immediately after payment received
Payment Terms:	T/T,Western Union
Supply Ability:	50pcs/month

Contact Now Chat Now

Panasonic MINAS A4 MHMA202P1G 2kW High Inertia Servo Motor 2000 RPM Key-way Shaft With Oil Seal

Description

Condition:

Panasonic Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

CNC Machine, Packaging Machine

Highlight:

Panasonic AC servo motor 2KW

AC servo motor for packaging machine

2KW servo motor with warranty

Panasonic MINAS A4 MHMA202P1G 2kW High Inertia Servo Motor

Product Overview

The Panasonic MHMA202P1G is a high-performance AC servo motor from the MINAS A4 Family, specifically designed for high-inertia applications requiring exceptional torque output and stable control. With a rated output of 2000 W (2.0 kW) and 200V AC voltage specifications, this high-inertia motor delivers outstanding torque density and precision positioning in demanding industrial automation systems.

Key Features & Benefits

High-Inertia Design - Rotor inertia of 62.0 × 10⁻⁴ kg*m² provides exceptional load handling capability for applications with large moment of inertia
High Torque Output - Rated torque of 9.54 N*m with momentary peak torque up to 28.5 N*m (3x rated torque)
2500 PPR Incremental Encoder - High-resolution encoder delivering precise positional feedback
2000 RPM Rated Speed - Maximum speed up to 3000 RPM with optimal torque output
Rugged IP65 Protection - Protects against dust and water jets in harsh industrial environments
Key-way Shaft with Oil Seal - Secure torque transmission with lubricant leakage prevention
200V Power Class - Optimized for standard industrial 200V power systems
No Holding Brake - Suitable for applications where vertical axis holding is not required

Technical Specifications

Brand	Panasonic
Family	MINAS A4 Family
Part Number	MHMA202P1G
Rated Output	2000 W (2.0 kW)
Voltage	200 V
Rated Speed	2000 r/min
Maximum Speed	3000 r/min
Rated Torque	9.54 N*m
Peak Torque	28.5 N*m
Rotor Inertia	62.0 × 10⁻⁴ kg*m²
Encoder Resolution	2500 PPR
Protection Class	IP65
Shaft Type	Key-way (Straight shaft)
Mass	16.0 kg

Permissible Load Ratings

Load Type	During Assembly	During Operation
Radial Load (P-direction)	1666 N	784 N
Thrust Load (A-direction)	196 N	196 N
Thrust Load (B-direction)	196 N	196 N

Note: Exceeding these limits may result in bearing failure or reduced motor life.

Compatible Drivers

The MHMA202P1G servo motor is designed for use with Panasonic MINAS A4 Series drivers. Verified compatible driver models include:

Driver Part Number	Type	Description
MBDDT2210	Analog/Pulse	200V, 2000W compatible driver
MCDDT3520	Analog/Pulse	200V, higher power capacity

Please verify driver compatibility with official documentation before ordering. For new designs requiring active products, consider MINAS A5 or A6 Series equivalents.

Typical Applications

Indexing Tables
Large Conveyor Systems
CNC Machine Tools
Injection Molding Machines
Press Machines
Material Handling Equipment
Packaging Machinery
Textile Machinery
Woodworking Equipment
Rubber & Plastics Machinery

Product Status Notice: This product was discontinued on October 31, 2018. For new designs requiring active products, consider MINAS A5 or A6 Series equivalents.
