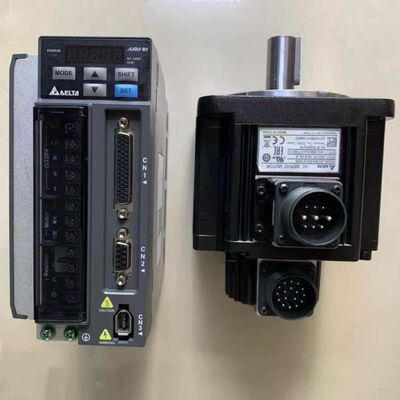

Delta AC Servo Drive & Motor 1.5KW ASDA-B3 Series ASD-B3-1521-L + ECM-B3M-E21315RS1

Large Image : Delta AC Servo Drive & Motor 1.5KW ASDA-B3 Series ASD-B3-1521-L + ECM-B3M-E21315RS1

Product Details:

Place of Origin:	Taiwan
Brand Name:	Delta
Certification:	CE UL
Model Number:	ASD-B3-1521-L + ECM-B3M-E21315RS1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	negotiable
Packaging Details:	Delta original package
Delivery Time:	In stock
Payment Terms:	T/T,Western Union
Supply Ability:	200pcs/month

Contact Now Chat Now

Delta AC Servo Drive & Motor 1.5KW ASDA-B3 Series ASD-B3-1521-L + ECM-B3M-E21315RS1

Description

Condition:

Delta Original Brand New

Warranty:

One Year

Shipping Way:

DHL FedEx

Application:

Winding Machine Etc.

Highlight:

Delta AC servo motor 1.5KW

ASDA-B3 servo drive with warranty

ECM-B3M servo motor 1.5KW

Delta ASDA-B3 Series 1.5kW Servo System

The Delta ASD-B3-1521-L Servo Drive combined with the ECM-B3M-E21315RS1 Servo Motor forms a high-performance 1.5kW servo system designed for precision motion control applications. As Delta's latest generation servo system, the ASDA-B3 series delivers exceptional responsiveness, high-precision positioning, and robust reliability—making it the ideal solution for demanding industrial automation environments.

System Specifications

ASD-B3-1521-L Servo Drive

Parameter	Specification
Model	ASD-B3-1521-L
Rated Output Power	1.5 kW
Supply Voltage	200-240V AC
Input Phase	1-Phase or 3-Phase
Input Current (1-Phase)	11.7 Arms
Input Current (3-Phase)	6.33 Arms
Continuous Output Current	8.3 Arms
Instantaneous Max Output Current	24.3 Arms
Encoder Resolution Support	24-bit (16,777,216 pulses/revolution)
Control Bandwidth	3.1 kHz
Cooling System	Fan cooling
Protection Rating	IP20
Regenerative Resistor	Built-in
Safe Torque Off (STO)	Complies with IEC/EN 61800-5-2, SIL2 Level

ECM-B3M-E21315RS1 Servo Motor

Parameter	Specification
Model	ECM-B3M-E21315RS1
Rated Power	1.5 kW
Rated Voltage	220V AC
Rated Speed	2000 RPM
Maximum Speed	Up to 5000 RPM
Rated Torque	7.16 Nm
Maximum Torque (Momentary)	21.48 Nm (3042 oz-in)
Rated Current	8.17 Arms
Instantaneous Max Current	26.82 Arms
Encoder Type	24-bit Incremental Optical Encoder
Encoder Resolution	16,777,216 pulses/revolution
Motor Type	AC Servomotor, Positional Rotation
Inertia Type	Medium Inertia
Flange Size	130 mm x 130 mm
Shaft Diameter	22 mm (0.866")
Shaft Length	55 mm (2.165")
Mounting Hole Spacing	145 mm (5.709")
Termination	Cable with Connector
Features	Keyway, Oil Seal
Brake	No brake (standard)
Cooling Method	Air cooling
Operating Temperature	-20°C to +60°C
Approvals	CE, cURus

Key Features & Advantages

24-bit High-Resolution Encoder: Exceptional positioning precision with 16,777,216 pulses per revolution for ultra-smooth motion and precise positioning
High Response Bandwidth: 3.1 kHz speed response bandwidth with 40% reduced settling time compared to previous models
Advanced Auto-Tuning & Vibration Suppression: Automatic calibration of drive parameters and optimized dynamic response
Low Cogging Torque: 50% reduction for enhanced smoothness during constant speed operation
High Overload Capacity: 3.5 times torque overload ratio for demanding load conditions
Safe Torque Off (STO) Function: Built-in safety function compliant with IEC/EN 61800-5-2 SIL2 standards
Energy Regeneration Capability: Built-in regenerative energy utilization improves system efficiency
Built-in PID Control: On-board PID controller enables precise closed-loop control

Applications

Machine Tools

Packaging Machinery

Robotics

Electronics Manufacturing

Semiconductor Equipment

Printing Machinery

Textile Machinery

Warehousing & Logistics

Medical Equipment

System Integration Guide

Required Cables

Cable Type	Recommended Model
Power Cable	ACS3-CAPW3203
Encoder Cable	ACS3-CAEN2703

Wiring & Installation

Use shielded motor and encoder cables to minimize electromagnetic interference (EMI)
Ensure proper grounding of both drive and motor for safety and optimal performance
Install in well-ventilated area with adequate clearance for heat dissipation
Operating temperature range: 0°C to 55°C for drive, -20°C to 60°C for motor

Protection Features

Protection Type	Description
Overcurrent Protection	Shuts down when output current exceeds rated limits
Overvoltage Protection	Protects against excessive DC bus voltage
Undervoltage Protection	Prevents operation during insufficient voltage conditions
Overtemperature Protection	Monitors internal temperature; triggers fault if exceeding limits
Overload Protection	Protects motor from extended overload conditions
STO (Safe Torque Off)	Safety function for personnel protection

Why Choose Delta ASDA-B3 Series?

The ASDA-B3 series represents Delta's commitment to delivering high-performance motion control solutions for modern industrial automation. With features including 24-bit high-resolution feedback, 3.1 kHz bandwidth, advanced auto-tuning, versatile communication options, and robust reliability, this 1.5kW servo system provides exceptional value for manufacturers seeking to enhance equipment efficiency, precision, and overall productivity.

Key Differentiators

Settling time reduced by 40% compared to previous generation
50% lower cogging torque for smoother operation
3.5x torque overload capacity for demanding applications
Built-in STO function for enhanced safety
Energy regeneration for improved efficiency
