SD32T3 MTL Surge Protection Device Surge Arrestor 22 Vac 32 Vdc 5kA Surge Current

Large Image : SD32T3 MTL Surge Protection Device Surge Arrestor 22 Vac 32 Vdc 5kA Surge Current

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SD32T3

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SD32T3 MTL Surge Protection Device Surge Arrestor 22 Vac 32 Vdc 5kA Surge Current

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Surge Protection Device 22 Vac , Surge Protection Device 32 Vdc

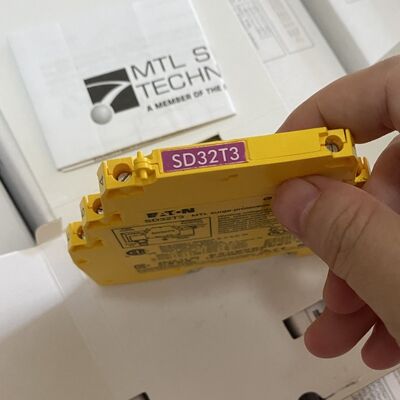

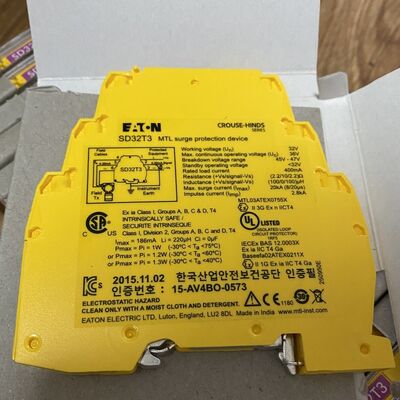

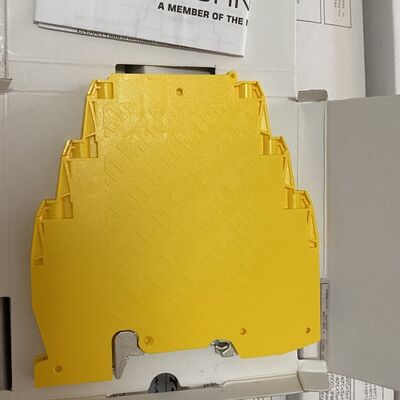

SD32T3 MTL Surge Protection Device Surge Arrestor

Eaton Crouse-Hinds series MTL SD surge protector, 22 Vac, 32 Vdc, 5kA surge current, 400mA, T-section DIN rail, <45V voltage protection level, 12 AWG, 3 terminal, 75V residual voltage

Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Catalog Number	SD32T3
Product Length/Depth	99 mm
Product Height	101.3 mm
Product Width	7 mm
Product Weight	70 g
Global Catalog	SD32T3
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	IEC IECEx/ATEX NEC/CEC
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP54
Mounting Method	T-section DIN rail
Special features	3 terminal
Frequency	720 kHz
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For protecting electronic equipment and systems against surges on signal and I/O cabling
Nominal Voltage AC	22V
Nominal Voltage DC	32V
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	2.8 kA
Nominal Load Current	400mA
Voltage Protection Level at In	75V
Voltage Protection Level at 1kV/µS	<45V
Series Resistance (Ω/Line)	2.2Ω
Max. Leakage Current	5µA
Max. Continuous Voltage AC	36V
IEC	IEC/EN 61643-21

SD32T3 MTL Surge Protection Device Surge Arrestor 22 Vac 32 Vdc 5kA Surge Current 0

SD32T3 MTL Surge Protection Device Surge Arrestor 22 Vac 32 Vdc 5kA Surge Current 1
