IP65 Panasonic 750W AC Servo Motor MHMJ082G1V High Inertia Lead Wire Type

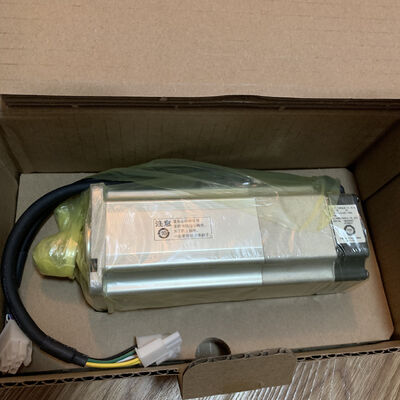

Large Image : IP65 Panasonic 750W AC Servo Motor MHMJ082G1V High Inertia Lead Wire Type

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMJ082G1U

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	100pcs/month

Contact Now Chat Now

IP65 Panasonic 750W AC Servo Motor MHMJ082G1V High Inertia Lead Wire Type

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	IP65 750W AC Servo Motor , Panasonic 750W AC Servo Motor , MHMJ082G1V

Panasonic MHMJ082G1V IP65 750W AC Servo Motor

Product Overview

Part Number	MHMJ082G1U
Product Family	MINAS A5 Family Servo Motor
Series	MHMJ Series
Motor Type	High inertia, Lead wire type, IP65 rated

Key Features

Power range: 10 W to 7.5 kW
Driver input power supply: DC 24 V/48 V or AC 100 V/200 V/400 V
High-resolution encoder: 20-bit incremental / 17-bit Absolute/Incremental
High frequency response: 2.3 kHz
IP65 protection rating (excluding rotating shaft and leadwire end)

Technical Specifications

Motor Performance

Rated Output	750 W
Rated Torque	2.4 N⋅m
Peak Torque	7.1 N⋅m
Rated Current	4.0 A rms
Max Current	17.0 A 0-p
Rated Speed	3000 r/min
Max Speed	4500 r/min

Mechanical Specifications

Flange Size	80 mm square
Motor Weight	2.5 kg
Rotor Inertia	1.51 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	20 times or less
Shaft Configuration	Key-way with center tap
Oil Seal	Included
Holding Brake	Not included

Encoder Specifications

Encoder Type	20-bit Incremental system
Resolution	1,048,576 pulses/rev

Permissible Load Specifications

During Assembly - Radial Load (P-direction)	686 N
During Assembly - Thrust Load (A-direction)	294 N
During Assembly - Thrust Load (B-direction)	392 N
During Operation - Radial Load (P-direction)	392 N
During Operation - Thrust Load (A/B-direction)	147 N

For detailed permissible load specifications, refer to the Motor Specification Description documentation.

Additional Information

Power Supply Capacity	1.3 kVA
Voltage Specifications	200 V
Regenerative Brake	No limit (without option) No limit (with option DV0P4283)

Special Order Notice: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.
