Panasonic MINAS A6 Low Inertia Servo Motor Lead Wire Type MSMF022L1U2M

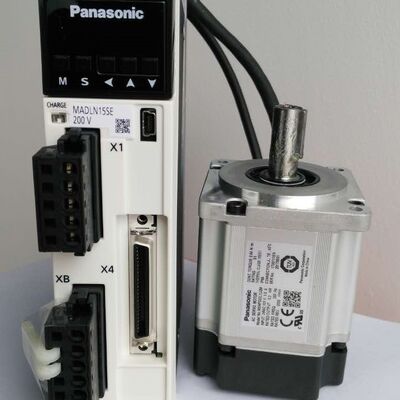

Large Image : Panasonic MINAS A6 Low Inertia Servo Motor Lead Wire Type MSMF022L1U2M

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MSMF022L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic MINAS A6 Low Inertia Servo Motor Lead Wire Type MSMF022L1U2M

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MINAS A6 Low Inertia Servo Motor , Panasonic Low Inertia Servo Motor , MSMF022L1U2M

Panasonic MINAS A6 Low Inertia Servo Motor - MSMF022L1U2M

High-performance servo motor featuring low inertia design and lead wire configuration for precision industrial automation applications.

Key Features

Power range: 50 W to 22 kW
Input power supply: DC 24V/48V or AC 100V/200V/400V
23-bit Absolute/Incremental encoder system
Battery-less absolute/incremental operation
High frequency response: 3.2 kHz
IP65 protection rating

Technical Specifications

Parameter	Specification
Part Number	MSMF022L1U2M
Rated Output	200 W
Rated Torque	0.64 N⋅m
Rated Rotational Speed	3000 r/min
Max Rotational Speed	6000 r/min
Rated Current	1.5 A rms
Max Current	6.5 A 0-p
Rotor Inertia	0.14 ×10⁻⁴ kg⋅m²
Flange Size	60 mm sq.
Mass	0.82 kg
Shaft Configuration	Key-way, center tap
Encoder Resolution	8,388,608 (23-bit)

Permissible Load Ratings

Load Type	During Assembly	During Operation
Radial Load (P-direction)	392 N	245 N
Thrust Load (A-direction)	147 N	98.0 N
Thrust Load (B-direction)	196 N	98.0 N

Compatible Drivers

Part Number	Series	Type	Interface	Supply Voltage
MADLN15NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	Single/3-phase 200V
MADLN15SE	A6SE series	Position control type	Pulse train only	Single/3-phase 200V
MADLN15SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485/RS232)	Single/3-phase 200V
MADLT15NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	Single/3-phase 200V
MADLT15SF	A6SF series	Multifunction type	Analog/Pulse, Modbus (RS485/RS232)	Single/3-phase 200V

Important Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. Specifications and design are subject to change without notice for product improvement.
