MHMF022L1U2M IP65 Panasonic Servo Motor Drive 200W High Inertia Lead Wire Type

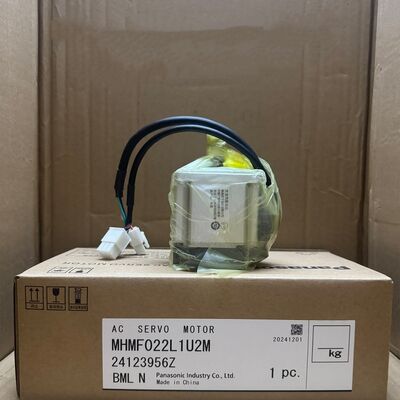

Large Image : MHMF022L1U2M IP65 Panasonic Servo Motor Drive 200W High Inertia Lead Wire Type

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Model Number:	MHMF022L1U2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MHMF022L1U2M IP65 Panasonic Servo Motor Drive 200W High Inertia Lead Wire Type

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic Servo Motor Drive 200W , IP65 Panasonic Servo Motor Drive , MHMF022L1U2M

MHMF022L1U2M IP65 Panasonic Servo Motor Drive 200W High Inertia Lead Wire Type

The MHMF022L1U2M is a high-performance servo motor from Panasonic's MINAS A6 family, featuring 200W rated output, high inertia design, and IP65 protection rating for demanding industrial applications.

Product Overview

Part Number	MHMF022L1U2M
Product Type	Servo Motor
Product Family	MINAS A6
Series	MHMF Series
Motor Type	High inertia, Lead wire type
Protection Class	IP65 (except rotating portion of output shaft and leadwire end)

Key Features

Power range: 50W to 22kW
Input power supply for Driver: DC 24V/48V or AC 100V/200V/400V
23-bit Absolute/Incremental battery-less Absolute/Incremental encoder
High frequency response: 3.2 kHz
Flange size: 60mm square
Motor lead-out configuration: Lead wire

Performance Specifications

Rated Output	200 W
Voltage Specifications	200 V
Power Supply Capacity	0.5 kVA
Rated Current (Reference value)	1.4 A rms
Rated Torque	0.64 N⋅m
Continuous Stall Torque	0.76 N⋅m
Momentary Max. Peak Torque	2.23 N⋅m
Max. Current (Reference value)	6.9 A 0-p
Rated Rotational Speed	3000 r/min
Max. Rotational Speed	6500 r/min

Mechanical Specifications

Mass	0.78 kg
Inertia of Rotor	0.29 × 10⁻⁴ kg⋅m²
Recommended Inertia Ratio	30 times or less
Shaft Configuration	Key-way, center tap
Oil Seal	with
Holding Brake	without

Load Specifications

During Assembly - Radial Load P-direction	392 N
During Assembly - Thrust Load A-direction	147 N
During Assembly - Thrust Load B-direction	196 N
During Operation - Radial Load P-direction	245 N
During Operation - Thrust Load A, B-direction	98 N

Encoder Specifications

Encoder Type	23-bit Absolute/Incremental system
Resolution	8,388,608

Special Order Notice: Please avoid distributing this motor, or equipment containing this motor, to Japan or other regions through Japan.

Encoder Usage Notice: When using the rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder.

Regenerative Brake: Without option: No limit. With option: No limit. Option (External regenerative resistor) Part No.: DV0P4283

For detailed information about environmental conditions, regenerative brake frequency, recommended moment of inertia ratio, and permissible load specifications, please refer to the official instruction manual and Motor Specification Description documentation.
