SD16R MTLSD16R MTL Surge Protection Device 400mA T Section DIN Rail

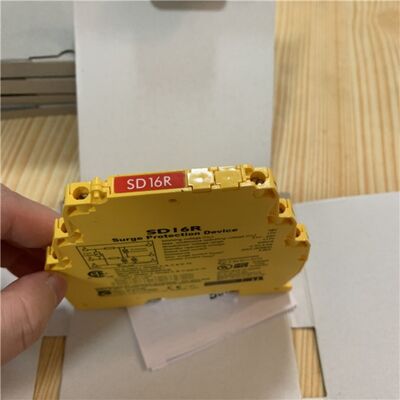

Large Image : SD16R MTLSD16R MTL Surge Protection Device 400mA T Section DIN Rail

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SD16R

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SD16R MTLSD16R MTL Surge Protection Device 400mA T Section DIN Rail

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	Surge Protection Device 400mA , MTLSD16R Surge Protection Device

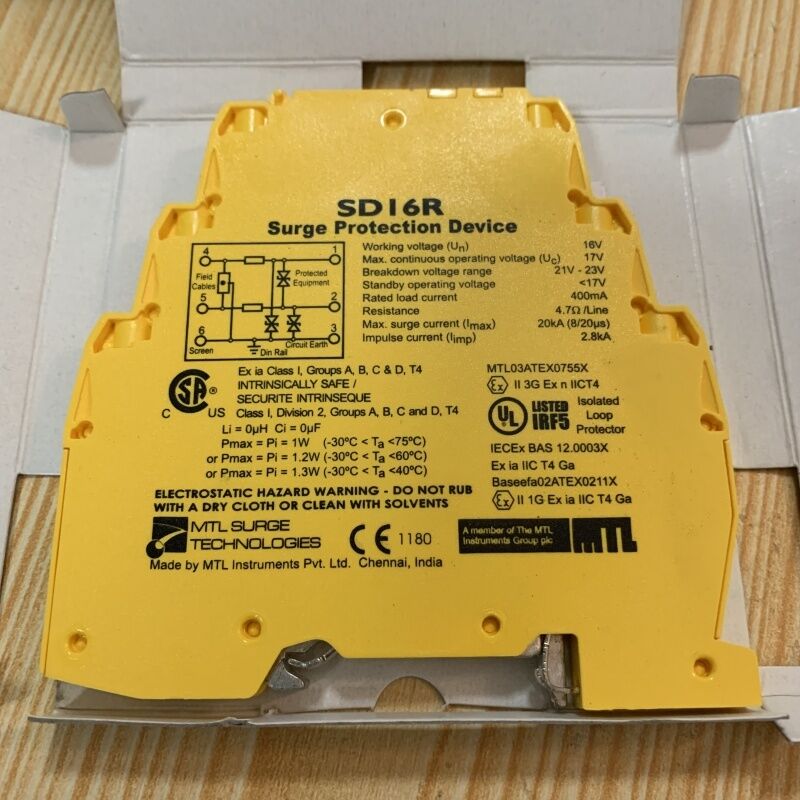

SD16R MTLSD16R MTL Surge Protection Device

Eaton Crouse-Hinds series MTL SD surge protector, 11 Vac, 16 Vdc, 5kA surge current, 400mA, T-section DIN rail, <25V voltage protection level, 12 AWG, High bandwidth

Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Catalog Number	SD16R
Product Length/Depth	99 mm
Product Height	101.3 mm
Product Width	7 mm
Product Weight	70 g
Global Catalog	SD16R
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	IECEx/ATEX NEC/CEC IEC
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP54
Mounting Method	T-section DIN rail
Special features	High bandwidth
Frequency	50 MHz
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For protecting electronic equipment and systems against surges on signal and I/O cabling
Nominal Voltage AC	11V
Nominal Voltage DC	16V
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	2.8 kA
Nominal Load Current	400mA
Voltage Protection Level at In	40V
Voltage Protection Level at 1kV/µS	<25V
Series Resistance (Ω/Line)	4.7Ω
Max. Leakage Current	5µA
Max. Continuous Voltage AC	17V

SD16R MTLSD16R MTL Surge Protection Device 400mA T Section DIN Rail 0
