SD150X Surge Protection Device 120V MTL Surge Arrestor

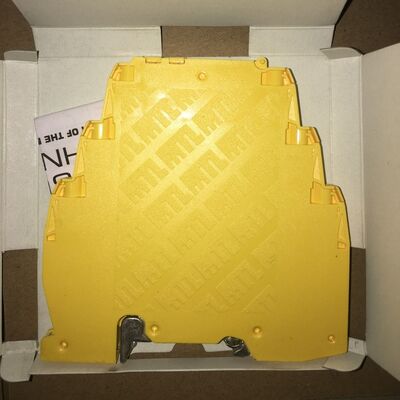

Large Image : SD150X Surge Protection Device 120V MTL Surge Arrestor

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SD150X

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SD150X Surge Protection Device 120V MTL Surge Arrestor

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	SD150X Surge Protection Device , Surge Protection Device MTL , 120V MTL Surge Arrestor

SD150X MTL Surge Protection Device Surge Arrestor

Eaton Crouse-Hinds series MTL SD surge protector, 120 Vac, 150 Vdc, 5kA surge current, 3A, T-section DIN rail, <400V voltage protection level, 12 AWG, High current

Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Product Name	Eaton Crouse-Hinds series MTL SD surge protector
Catalog Number	SD150X
Product Length/Depth	99 mm
Product Height	101.3 mm
Product Width	7 mm
Product Weight	70 g
Global Catalog	SD150X
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	IEC NEC/CEC IECEx/ATEX
IECEx/ATEX hazardous rating	Zone 2
Ingress protection (IP) ratings	IP54
Mounting Method	T-section DIN rail
Special features	High current
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For protecting electronic equipment and systems against surges on signal and I/O cabling
Nominal Voltage AC	120V
Nominal Voltage DC	150V
Nominal Discharge Surge Current (8/20)	5 kA
Lightning Impulse Current (10/350 µs)	1 kA
Nominal Load Current	3A
Voltage Protection Level at In	450V
Voltage Protection Level at 1kV/µS	<400V
Series Resistance (Ω/Line)	0.1Ω
Max. Leakage Current	50µA
Max. Continuous Voltage AC	130V
Max. Continuous Voltage DC	170V
