SLP16D MTL Surge Protection Device IP20 For Two Loops Per SLP

Large Image : SLP16D MTL Surge Protection Device IP20 For Two Loops Per SLP

Product Details:

Place of Origin:	India
Brand Name:	MTL
Model Number:	SLP16D

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

SLP16D MTL Surge Protection Device IP20 For Two Loops Per SLP

Description

Condition:	Original Brand New	Warranty:	One Year
Series:	Eaton Crouse-Hinds Series	Shipping Way:	DHL FedEx Express
Application:	Automation Industries, Oil, Gas, Chemical Industries	Certificate:	CE ISO TUV
Highlight:	SLP16D Surge Protection Device , Surge Protection Device IP20

Eaton Crouse-Hinds series MTL SLP surge protector, 16V, 10kA surge current, 1.5A, T-section DIN rail, <18V voltage protection level, Plug/header screw terminal strip, 12 AWG

Product Name	Eaton Crouse-Hinds series MTL SLP surge protector
Product Name	Eaton Crouse-Hinds series MTL SLP surge protector
Catalog Number	SLP16D
Product Length/Depth	90 mm
Product Height	90 mm
Product Width	12 mm
Product Weight	140 g
Global Catalog	SLP16D
Product Type	Surge protector

Area classification	Hazardous/Classified Locations
Standards type	NEC/CEC IECEx/ATEX IEC
Ingress protection (IP) ratings	IP20
Mounting Method	T-section DIN rail
Frequency	50 MHz
Response Time	<1ns
Category Tested Acc. IEC 61643-21	A2, B2, C1, C2, C3, D1
Connection Details	Plug/header screw terminal strip
Conductor Cross-section AWG	12 AWG
Minimum Ambient Operating Temperature	-40 °C
Maximum Ambient Operating Temperature	80 °C
Minimum Ambient Storage Temperature	-40 °C
Maximum Ambient Storage Temperature	80 °C
Humidity	5-95% RH (non-condensing)
Modes of Protection	For digital and analogue I/O
Nominal Voltage DC	16V
Nominal Discharge Surge Current (8/20)	10 kA
Lightning Impulse Current (10/350 µs)	2.5 kA
Nominal Load Current	1.5A
Voltage Protection Level at In	23V
Voltage Protection Level at 1kV/µS	<18V
Series Resistance (Ω/Line)	1.0Ω
Max. Leakage Current	<1µA
Max. Continuous Voltage DC	18V
IEC	IEC61643-21

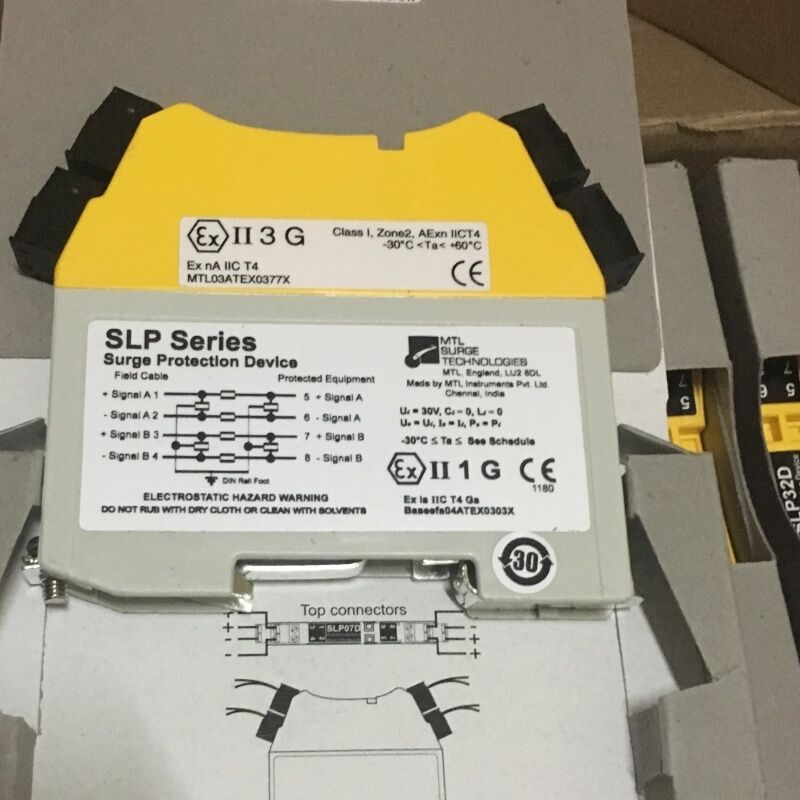

SLP16D MTL Surge Protection Device IP20 For Two Loops Per SLP 0

SLP16D MTL Surge Protection Device IP20 For Two Loops Per SLP 1
