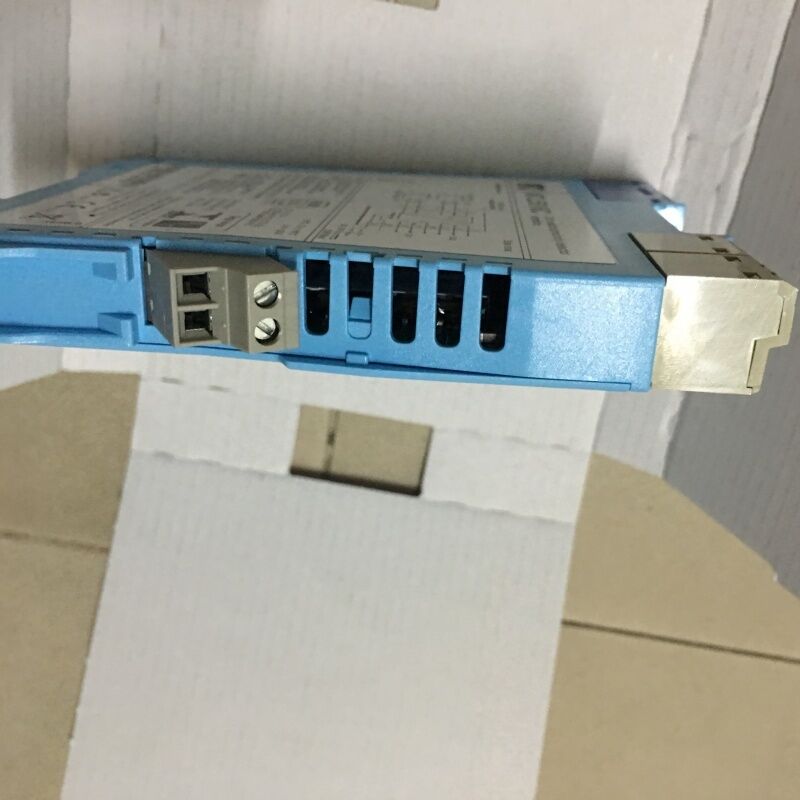

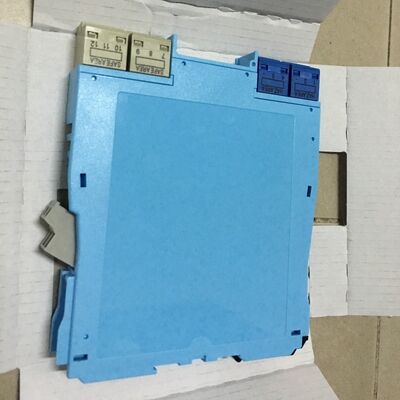

MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers

MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers
MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers

Large Image :  MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers

Product Details:
Place of Origin: India
Brand Name: MTL
Model Number: MTL5517
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL5517 safety barrier

,

Zener barrier isolator

,

intrinsic safety isolator

MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers
Eaton Crouse-Hinds series MTL5500 isolator featuring 2-channel digital input with comprehensive safety features including phase reversal protection and multi-color LED status indication. Designed for hazardous location applications with SIL2 and SIL3 safety integrity levels.
Product Specifications
Product Name Eaton Crouse-Hinds series MTL5500 isolator
Catalog Number MTL5517 - FSM ASSESSED
EAN 3066227675833
Product Type Isolator
Dimensions 109.8 mm (L) × 118.8 mm (H) × 15.8 mm (W)
Weight 150 g
Technical Features
Type Switch/proximity detector interface
Area Classification Hazardous/Classified Locations
Standards IEC, IECEx/ATEX
Hazardous Rating Zone 0
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Electrical Specifications
Signal Type Digital input
Number of Channels 2
Response Time 10ms maximum
Power Supply 20-35 Vdc
Current Consumption 35mA at 24V
Power Dissipation 0.84W at 24V
Sensor Voltage 7-9 Vdc from 1kΩ ±10%
Galvanic Isolation 250V rms between safe-area circuits and power supply
Safety & Control Features
  • Safety Integrity Level: SIL2 and SIL3 according to IEC61508
  • Line Fault Detection: User-selectable via switches on the side of the unit
  • Phase Reversal Protection: Yes
  • Hysteresis: 200µA (650Ω) nominal
  • Relay Characteristics: Contact rating (Zone 2): 35V, 2A, 100VA
  • Terminal Capacity: Accepts conductors up to 2.5mm² stranded or single-core
  • Mounting Method: T-section 35mm DIN rail
  • Electrical Connection: Crimp ferrules
  • EMC Compliance: EN61326
LED Status Indication
  • Green LED: Power status
  • Yellow LED: Operational status
  • Red LED: Line Fault Detection (LFD)
Output Characteristics
  • Outputs closed if input > 2.1mA (< 2kΩ in input circuit)
  • Outputs open if input < 1.2mA (> 10kΩ in input circuit)
MTL5517 MTL Safety Barrier Safe Isolators Zener Barriers 0
