MTL5531 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Vibration Transducer Interface, 1 channel, Pulse and Vibration

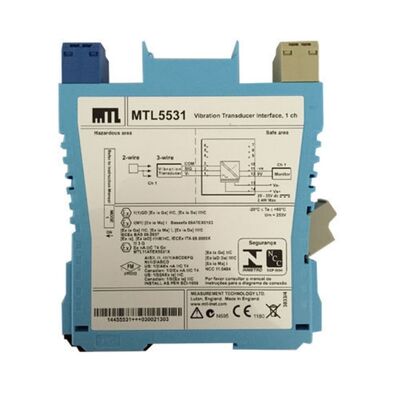

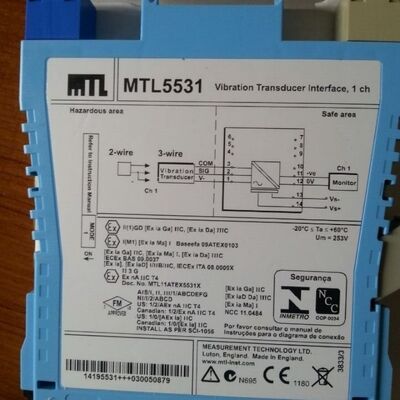

Large Image : MTL5531 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Vibration Transducer Interface, 1 channel, Pulse and Vibration

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5531

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5531 MTL Safety Barrier Eaton Crouse-Hinds series MTL5500 Vibration Transducer Interface, 1 channel, Pulse and Vibration

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL5500 safety barrier vibration transducer , Eaton Crouse-Hinds intrinsic safety barrier , MTL5531 pulse vibration interface

MTL5531 MTL Safety Barrier - Vibration Transducer Interface

The Eaton Crouse-Hinds series MTL5500 vibration transducer interface provides reliable signal conditioning for pulse and vibration monitoring in hazardous locations. This single-channel safety barrier offers robust performance with comprehensive safety certifications.

Product Overview

Product Name	Eaton Crouse-Hinds series MTL5500 vibration transducer interface
Catalog Number	MTL5531
Product Type	Vibration transducer interface
Global Catalog	MTL5531

Physical Specifications

Dimensions (L x H x W)	109.8 mm × 118.8 mm × 15.8 mm
Weight	150 g

Technical Specifications

Signal Type	Pulse and vibration
Number of Channels	1
Signal Range	Minimum: -20V, Maximum: -0.5V
Input Impedance	10kΩ
Power Supply	20-35 Vdc
Current Consumption	65mA at 24V
Power Dissipation	1.33W
Switching Frequency	-3 dB at 47 kHz (typical)
Transfer Accuracy	<±50mV (DC)

Safety & Environmental Ratings

Area Classification	Hazardous/Classified Locations
Standards	IEC, IECEx/ATEX
Hazardous Rating	Zone 0
Safety Integrity Level	SIL2 (IEC61508)
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Humidity	5-95% relative humidity
EMC Compliance	EN61326

Installation & Connectivity

Mounting Method	T-section 35mm DIN rail
Electrical Connection	Crimp ferrules
Terminal Capacity	Accepts conductors up to 2.5mm² stranded or single-core
Wiring Configuration	2- or 3-wire
Galvanic Isolation	250V rms between safe-area circuits and power supply
LED Indication	Green power indicator
