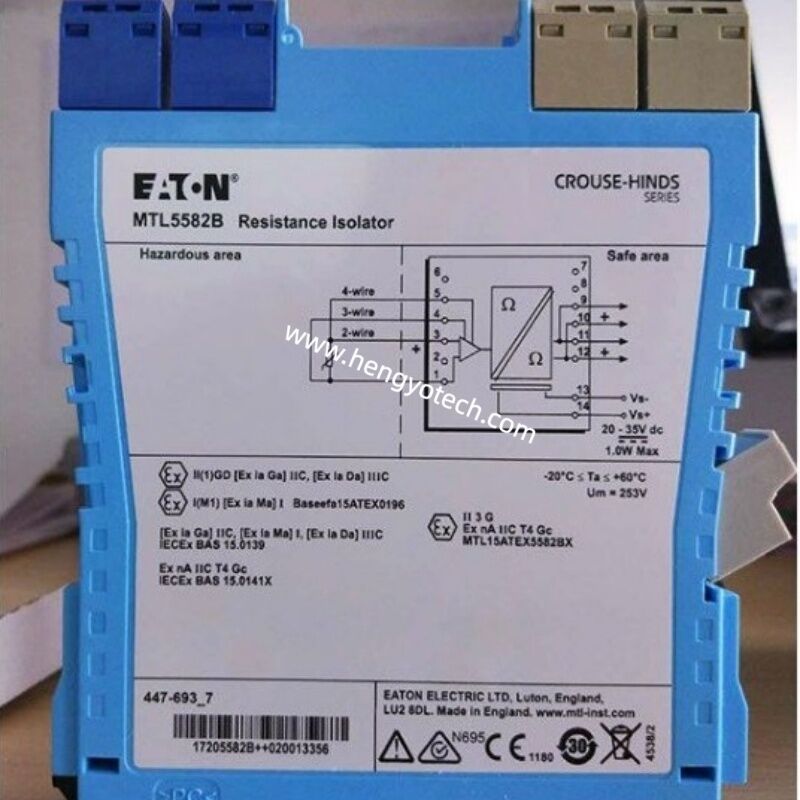

MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator

MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator
MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator

Large Image :  MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator

Product Details:
Place of Origin: England
Brand Name: MTL
Model Number: MTL5582B
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: original package
Delivery Time: 3 working days
Payment Terms: T/T,Western Union
Supply Ability: 500pcs/month
Contact Now Chat Now

MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator

Description
Condition: Original Brand New Warranty: One Year
Shipping Way: DHL FedEx Express Application: Automation Industries, Oil, Gas, Chemical Industries
Certificate: CE ISO TUV
Highlight:

MTL Safe Barrier intrinsic safety isolator

,

MTL5582B resistance isolator

,

intrinsic safety barrier with warranty

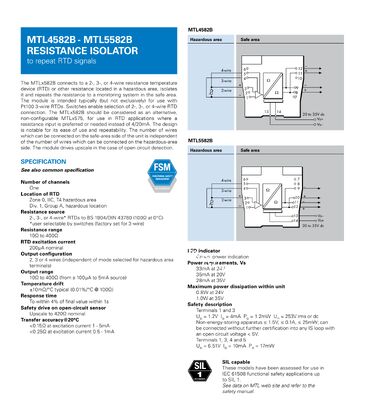

MTL5582B MTL Safe Barrier Intrinsic Safety Isolators Resistance Isolator
Eaton Crouse-Hinds series MTL5500 resistance isolator designed for temperature input applications. Features 1 channel operation with 20-35 Vdc power supply and comprehensive safety certifications for hazardous locations.
Product Overview
Product Name Eaton Crouse-Hinds series MTL5500 resistance isolator
Catalog Number MTL5582B
Product Dimensions 109.8 mm (Length/Depth) × 118.8 mm (Height) × 15.8 mm (Width)
Product Weight 150 g
Global Catalog MTL5582B
Product Type Resistance isolator
Key Features
  • Designed for 2-, 3-, or 4-wire RTDs to BS 1904/DIN 43760 standards
  • Green LED power indication
  • RTD signal repetition capability
  • Safety drive on sensor failure (upscale to 420Ω nominal)
  • Galvanic isolation: 250V rms between safe-area circuits and power supply
Technical Specifications
Type To repeat RTD signals
Area Classification Hazardous/Classified Locations
Standards Compliance IEC, IECEx/ATEX
Hazardous Rating Zone 0
Operating Temperature -20°C to 60°C
Storage Temperature -40°C to 80°C
Humidity 5-95% relative humidity
Signal Type Temperature input
Response Time To within 4% of final value within 1s
Load Resistance 10-400Ω
Output Signal Range 10Ω to 400Ω
Number of Channels 1
Terminal Capacity Accepts conductors up to 2.5mm² stranded or single-core
Mounting Method T-section 35mm DIN rail
EMC Compliance EN61326
Configuration 2, 3 or 4 wires (independent of mode selected for hazardous area terminals)
Electrical Connection Crimp ferrules
Power Supply 20-35 Vdc
Electrical Specifications 2-, 3-, or 4-wire RTDs to BS 1904/DIN 43760
RTD Excitation Current 200µA
Power Dissipation 1.0W at 35V, 0.8W at 24V
Transfer Accuracy <0.15Ω at excitation current 1-5mA
<0.25Ω at excitation current 0.5-1mA
Temperature Drift ±10mΩ/°C
