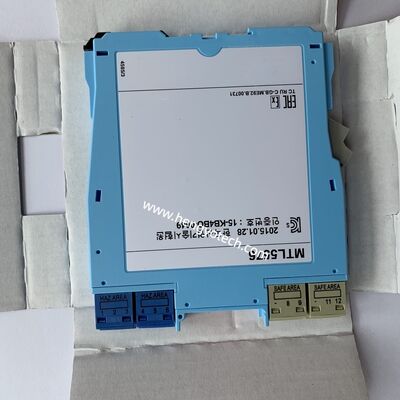

MTL5576-RTD MTL Safety Barrier Resistance Temperature Detectors

Large Image : MTL5576-RTD MTL Safety Barrier Resistance Temperature Detectors

Product Details:

Place of Origin:	England
Brand Name:	MTL
Model Number:	MTL5576-RTD

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

MTL5576-RTD MTL Safety Barrier Resistance Temperature Detectors

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	MTL safety barrier RTD detector , intrinsic safety barrier temperature sensor , MTL5576 resistance temperature detector

MTL5576-RTD Safety Barrier Resistance Temperature Detectors

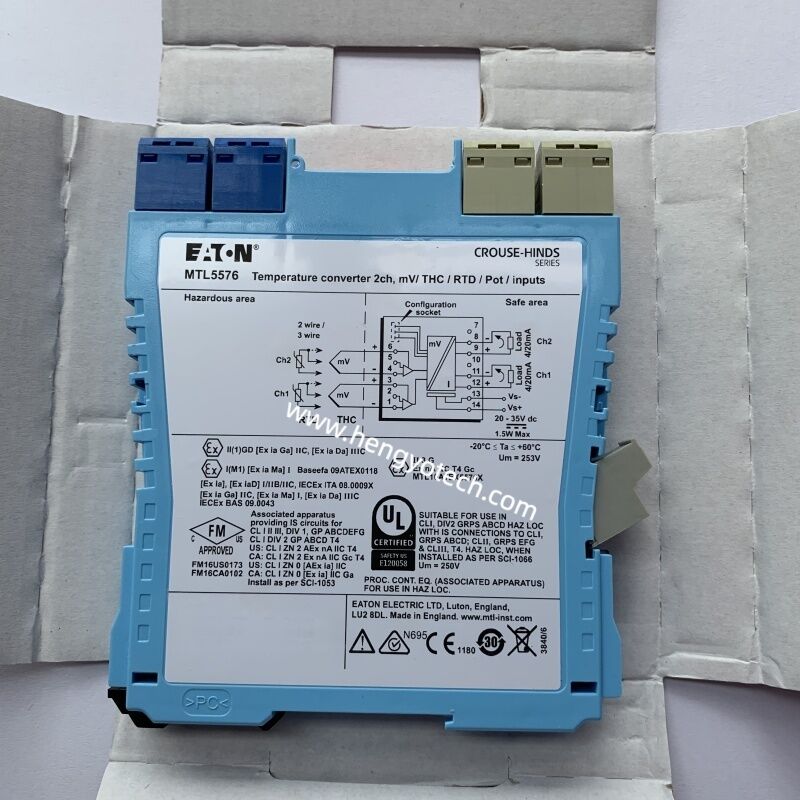

The Eaton Crouse-Hinds series MTL5500 temperature converter is a 2-channel safety barrier designed for hazardous locations. This robust device accepts 2- or 3-wire RTD inputs with a 0-400 ohms signal range and provides comprehensive LED status indication.

Product Overview

Product Name	Eaton Crouse-Hinds series MTL5500 temperature converter
Catalog Number	MTL5576-RTD
Product Type	Temperature converter
Dimensions (L x H x W)	109.8 mm × 118.8 mm × 15.8 mm
Product Weight	150 g

Key Features

2-channel RTD/potentiometer input with 0-400Ω signal range
Hazardous location certified for Zone 0 applications
Functional channel-channel isolation for enhanced safety
Comprehensive LED status indication (Green=power, Yellow=status, Red=LFD)
Configurable response time with 500ms default setting
Safety drive options on sensor failure (upscale, downscale, or off)

Technical Specifications

Input Signal	2-, 3-wire RTDs
Signal Range	0-400Ω
Output Signal Range	4-20mA nominal into 300Ω max.
Number of Channels	2
Power Supply	20-35 Vdc
Current Consumption	60mA
Power Dissipation	1.4W
RTD Excitation Current	200µA
Transfer Accuracy	±16µA
Temperature Drift	±0.6µA/°C
Response Time	Configurable (500ms default)
Operating Temperature	-20°C to 60°C
Storage Temperature	-40°C to 80°C
Humidity	5-95% relative humidity
Common Mode Rejection	120 dB for 240V at 50 or 60 Hz
Series Mode Rejection	40 dB for 50 or 60 Hz
Mounting Method	T-section 35mm DIN rail
Terminal Capacity	Accepts conductors up to 2.5mm² stranded or single-core
Electrical Connection	Crimp ferrules
Configuration	Personal computer running MTL PCS45 software with PCL45USB serial interface

Safety & Certification

Area Classification	Hazardous/Classified Locations
Standards Type	IEC, IECEx/ATEX
Hazardous Rating	Zone 0
Galvanic Isolation	250V rms between safe-area circuits and power supply
EMC Compliance	EN61326
