Panasonic 750W Low Inertia IP65 AC Servo Motor MINAS A6 Family for Industrial Automation

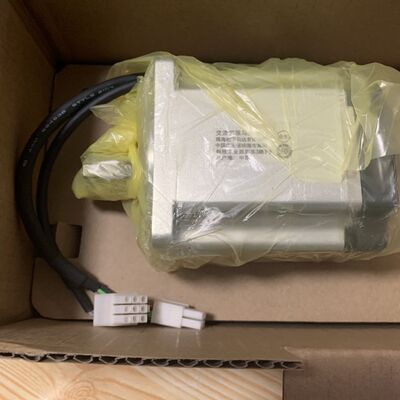

Large Image : Panasonic 750W Low Inertia IP65 AC Servo Motor MINAS A6 Family for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL
Model Number:	MSMF082L1V2M

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic 750W Low Inertia IP65 AC Servo Motor MINAS A6 Family for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 750W AC servo motor , Panasonic AC servo motor driver , 750W servo motor with warranty

MSMF082L1V2M Panasonic 750W AC Servo Motor

Product Overview

Part of the MINAS A6 Family, this low inertia servo motor with lead wire type configuration delivers reliable performance for industrial applications.

Part Number	MSMF082L1V2M
Product Type	Servo Motor
Configuration	Low inertia, Lead wire type
Family Name	MINAS A6
Series	MSMF Series

Key Features

Power range: 50 W to 22 kW
Input power supply for Driver: Voltage DC 24 V/48 V・AC 100 V/200 V/400 V
23 bit Absolute/Incremental・battery-less Absolute/Incremental encoder
Frequency response 3.2 kHz
Protection class: IP65 (except rotating portion of output shaft and leadwire end)

Technical Specifications

Flange size	80 mm sq.
Power supply capacity	1.8 kVA
Voltage specifications	200 V
Rated output	750 W
Rated current [Reference value]	4.1 A rms
Holding brake	with
Mass	3.1 kg
Oil seal	with
Shaft	Key-way, center tap
Rated torque	2.39 N⋅m
Continuous stall torque	2.39 N⋅m
Momentary Max. peak torque	7.16 N⋅m
Max. current [Reference value]	17.4 A 0-p
Rated rotational speed	3000 r/min
Max. rotational speed	6000 r/min
Inertia of rotor	1.06 x10⁻⁴ kg⋅m²
Recommended inertia ratio	20 times or less
Rotary encoder specifications	23-bit Absolute/Incremental system
Rotary encoder resolution	8388608

Brake Specifications

Static friction torque	2.45 N⋅m or more
Engaging time	70 ms or less
Releasing time	20 ms or less
Exciting current (DC)	0.42 A
Releasing voltage (DC)	1 V or more
Exciting voltage (DC)	24 ± 1.2 V

Note: This brake will be released when it is energized. Do not use this for braking the motor in motion.

Permissible Load

During assembly: Radial load P-direction	686 N
During assembly: Thrust load A-direction	294 N
During assembly: Thrust load B-direction	392 N
During operation: Radial load P-direction	392 N
During operation: Thrust load A, B-direction	147 N

Applicable Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply voltage
MCDLN35NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	C-Frame	Single/3-phase 200 V
MCDLN35SE	A6SE series	Position control type	Pulse train only	C-Frame	Single/3-phase 200 V
MCDLN35SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	C-Frame	Single/3-phase 200 V
MCDLT35NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	C-Frame	Single/3-phase 200 V
MCDLT35SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	C-Frame	Single/3-phase 200 V

Important Notice: Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan.

Product Improvement: Specifications and design of the products are subject to change without notice for product improvement.
