Panasonic MINAS A6 1.5kW High Inertia Servo Motor with IP67 Rating and MDDLT55SF Servo Amplifier

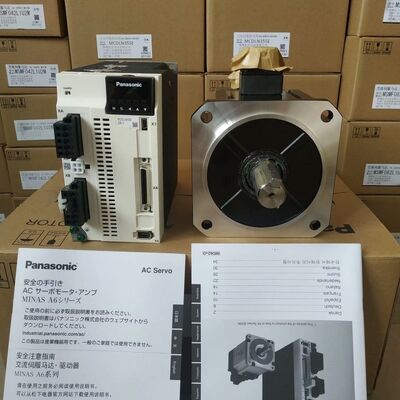

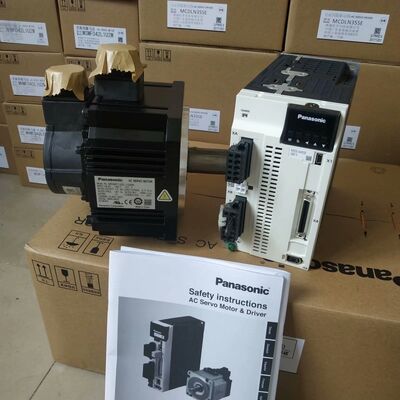

Large Image : Panasonic MINAS A6 1.5kW High Inertia Servo Motor with IP67 Rating and MDDLT55SF Servo Amplifier

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL
Model Number:	MSMF152L1G6M+MDDLT55SF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	500pcs/month

Contact Now Chat Now

Panasonic MINAS A6 1.5kW High Inertia Servo Motor with IP67 Rating and MDDLT55SF Servo Amplifier

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	1.5KW AC Servo Motor Driver , MSMF152L1G6M , MDDLT55SF

Panasonic MSMF152L1G6M 1.5kW MINAS A6 High Inertia Servo Motor with MDDLT55SF Servo Amplifier

MSMF152L1G6M | Panasonic MINAS A6 Servo Motor

The MSMF152L1G6M is a high-performance AC Servo Motor from the Panasonic MINAS A6 family. Specifically designed for applications requiring high inertia, it provides exceptional stability and precision for heavy-load movements.

Key Specifications

Series: MINAS A6 Family
Type: High Inertia / Small Type
Rated Output: 1.5 kW
Voltage: 200 V
Rated Torque: 7.16 N·m (Peak: 21.5 N·m)
Rated Speed: 2000 r/min (Max: 3000 r/min)
Encoder: 23-bit Absolute/Incremental (High Resolution)
Oil Seal: Included (with Protective Lip)
Shaft Detail: Key-way shaft
IP Rating: IP67 (Dust-proof and Waterproof)

MDDLT55SF | Panasonic MINAS A6 Servo Driver

The MDDLT55SF is the companion Multi-function Servo Amplifier designed to drive 1.5kW motors with precision. It features advanced vibration suppression filters and high-speed response frequency, ensuring smooth and rapid machine operation.

Key Specifications

Series: MINAS A6 Series (L-Frame)
Input Voltage: 3-Phase 200V - 240V
Supported Motor Power: 1.5 kW
Control Mode: Position, Speed, and Torque control (Support for Modbus/Pulse Train)
Frequency Response: 3.2 kHz (Ultra-high speed)
Safety Function: STO (Safe Torque Off) integrated
Interface: Analog/Pulse or Comms-based control
Dimensions: Compact B-frame design for space-saving cabinet installation

Applications

Perfect for industrial machinery, packaging equipment, textile machines, and large-scale automation where high load-to-motor inertia ratios are critical.

Detailed Motor Specifications

Item	Specifications
Part Number	MSMF152L1G6M
Product Details	Low inertia, Connector type
Family Name	MINAS A6
Protection Class	IP67
Flange Size	100 mm sq.
Rated Output	1500 W
Rated Current	8.2 A rms
Mass	4.6 kg
Rated Torque	4.77 N·m
Continuous Stall Torque	5.72 N·m
Momentary Max. Peak Torque	14.3 N·m
Rated Rotational Speed	3000 r/min
Max. Rotational Speed	5000 r/min
Inertia of Rotor	3.10 × 10⁻⁴ kg·m²
Rotary Encoder	23-bit Absolute/Incremental system
Encoder Resolution	8,388,608

Permissible Load

Item	Specifications
During Assembly: Radial Load P-direction	980 N
During Assembly: Thrust Load A-direction	588 N
During Assembly: Thrust Load B-direction	686 N
During Operation: Radial Load P-direction	490 N
During Operation: Thrust Load A, B-direction	196 N

Applicable Drivers

Part Number	Series	Type	I/F Classification	Frame	Supply Voltage
MDDLN55NE	A6NE series	RTEX, Ultra high-speed Network (Basic type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLN55SE	A6SE series	Position control type	Pulse train only	D-Frame	Single/3-phase 200 V
MDDLN55SG	A6SG series	RS485/RS232 Communication type	Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V
MDDLT55NF	A6NF series	RTEX, Ultra high-speed Network type (Multi type)	RTEX	D-Frame	Single/3-phase 200 V
MDDLT55SF	A6SF series	Multifunction type	Analog /Pulse, Modbus (RS485 /RS232)	D-Frame	Single/3-phase 200 V

Specifications and design of the products are subject to change without notice for product improvement.
