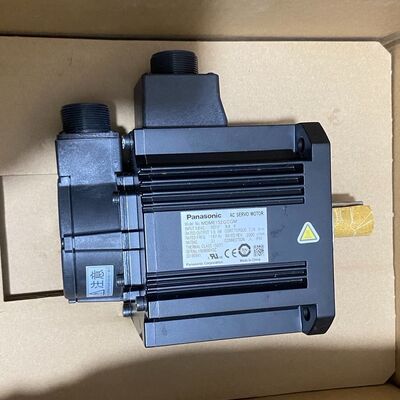

Panasonic MDMF402L1G6M MINAS A6 Servo Motor 4.0kW 200V 2000rpm

Panasonic MDMF402L1G6M MINAS A6 High Inertia Servo Motor | 4.0kW, 200V

The Panasonic MDMF402L1G6M is a high-capacity, high-inertia AC brushless servo motor from the flagship MINAS A6 series. Delivering a powerful 4000W (4.0kW) output, this motor is specifically engineered for large-scale industrial machinery that requires maximum stability and consistent torque under heavy loads. With its industry-leading 23-bit absolute encoder and rugged IP67 construction, the MDMF402L1G6M provides the ultimate solution for heavy-duty automation where precision and reliability are critical.

Key Performance Advantages

• Superior High Inertia Control: Optimized to handle high-mass mechanical loads with exceptional stability, virtually eliminating resonance and vibration in large-scale systems.
• Ultra-High 23-bit Resolution: Equipped with a 23-bit absolute/incremental encoder (8,388,608 pulses/rev) for incredibly smooth rotation and sub-micron positioning accuracy.
• Flagship A6 Response: Features a 3.2 kHz frequency response bandwidth, allowing for rapid command following and significantly reduced settling times.
• Industrial-Grade IP67 Protection: Fully sealed against dust and water, including a high-durability oil seal for operation in the most demanding factory environments.
• High-Torque Performance: Provides 19.1 N·m of rated torque, with a massive peak stall torque of 57.3 N·m for heavy acceleration cycles.

Technical Specifications (Quick Reference)

MDMF402L1G6M Part Number Breakdown

Ensure this configuration matches your exact engineering requirements:

1. MDMF: High Inertia Type (Large Capacity A6 Series).
2. 40: 4.0 kW (4000W) Rated Power Output.
3. 2: 200V AC Input Voltage.
4. L: 23-bit Absolute/Incremental Encoder.
5. 1: Standard Design Sequence.
6. G6M: Specific technical suffix indicating the shaft end (keyway), high-durability oil seal, and hardware variant.

Targeted Industrial Applications

The raw power and stability of the MDMF402L1G6M make it ideal for:

• Large-Scale CNC Machining: Heavy milling, boring, and large-format lathe axes.
• Metal Processing: High-torque press feeders, bending machines, and shearing lines.
• Injection Molding: Precise screw and clamp control in plastic machinery.
• Heavy Robotics: High-payload palletizing robots and heavy-duty gantry systems.
