Panasonic MDMA102A1G MINAS A Series AC Servo Motor 1kW Middle Inertia IP65 for Industrial Automation

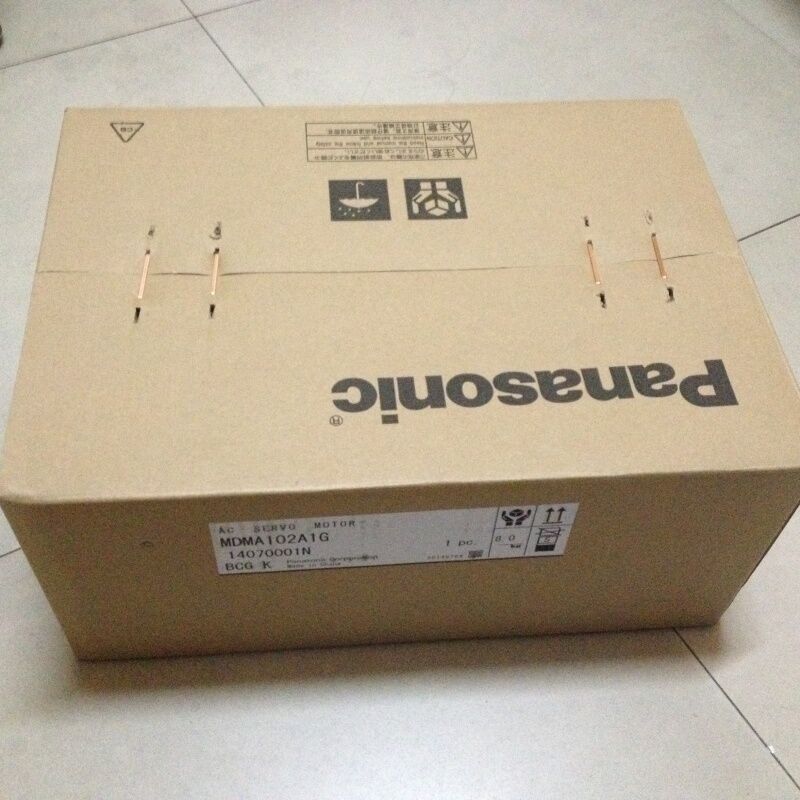

Large Image : Panasonic MDMA102A1G MINAS A Series AC Servo Motor 1kW Middle Inertia IP65 for Industrial Automation

Product Details:

Place of Origin:	Japan
Brand Name:	Panasonic
Certification:	CE UL ROSH
Model Number:	MDMA102A1G

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable

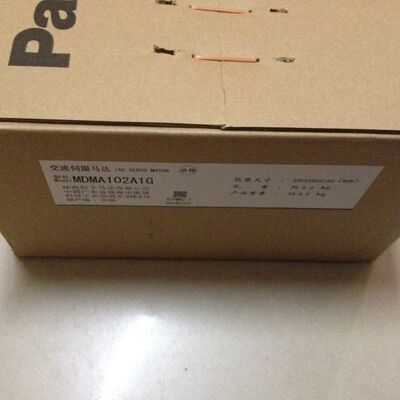

Packaging Details:	original package
Delivery Time:	3 working days
Payment Terms:	T/T,Western Union
Supply Ability:	10pcs/month

Contact Now Chat Now

Panasonic MDMA102A1G MINAS A Series AC Servo Motor 1kW Middle Inertia IP65 for Industrial Automation

Description

Condition:	Original Brand New	Warranty:	One Year
Shipping Way:	DHL FedEx Express	Application:	Automation Industries, Oil, Gas, Chemical Industries
Certificate:	CE ISO TUV
Highlight:	Panasonic 1KW servo motor , MINAS A Series AC servo motor , 1KW servo motor with warranty

Panasonic MDMA102A1G MINAS A Series AC Servo Motor

The Panasonic MDMA102A1G is a high-performance AC servo motor from Panasonic's legacy MINAS A Series. This 1kW (1000W) model features a middle inertia rotor design, making it particularly suitable for general-purpose industrial automation applications requiring balanced performance between rapid acceleration and stable load handling.

Technical Specifications

Parameter	Value
Manufacturer	Panasonic
Series	MINAS A Series
Part Status	Discontinued (September 30, 2011)
Product Type	AC Servo Motor
Inertia Type	Middle Inertia
Flange Size	130mm square
Motor Lead-out Configuration	Connector type

Power & Torque

Parameter	Value
Rated Power	1.0 kW (1000W)
Rated Torque	4.8 N*m
Peak Torque (Momentary Max.)	14.4 N*m (300% overload capacity)
Rated Speed	2000 RPM
Maximum Speed	3000 RPM
Power Supply Capacity	Approx. 2.0 kVA

Electrical Specifications

Parameter	Value
Voltage Rating	200 VAC
Encoder Type	2500 P/R incremental encoder (standard)
Optional Encoders	17-bit incremental / 17-bit absolute encoder

Mechanical Specifications

Parameter	Value
Rotor Inertia (Without Brake)	26.0 × 10⁻⁴ kg*m²
Holding Brake	Without ("G" suffix indicates no brake)
Oil Seal	With oil seal
Shaft Type	Key-way
Protection Class	IP65 (must use oil-resistant cylindrical connector)

Core Features & Benefits

High-Speed Frequency Response

The MINAS A Series incorporates Panasonic's unique algorithm, achieving a 500 Hz speed frequency response - twice that of previous products. Positioning settling time is shortened to 1/4 of conventional models.

Middle Inertia Design

The MDMA102A1G features a middle inertia rotor (26.0 × 10⁻⁴ kg*m²), specifically optimized for general-purpose automation applications requiring balanced performance between rapid acceleration and stable load handling.

300% Overload Capacity

With a peak torque of 14.4 N*m (300% of rated torque), this motor handles demanding acceleration requirements and sudden load fluctuations without stalling.

Resonance Suppression & Vibration Control: Advanced functions compensate for mechanical rigidity deficiencies, enabling high-speed positioning even with less rigid mechanical systems.
Full Closed-Loop Control Capability: By connecting an external high-precision linear scale, the system can be configured for full closed-loop control, further improving positioning accuracy.
Built-in FFT Frequency Analysis: The built-in FFT (Fast Fourier Transform) function detects mechanical resonance points, facilitating system adjustment and tuning.
Auto-Tuning Functions: Two auto-tuning methods available: standard auto-tuning for general applications and real-time auto-tuning for continuous gain adjustment.
Multi-Axis Communication: Equipped with RS485 and RS232C communication ports, enabling control of up to 16 axes simultaneously.
IP65 Environmental Protection: Rated IP65 (with oil-resistant cylindrical connectors), protected against dust ingress and low-pressure water jets.
Multiple Encoder Options: Supports various encoder types including standard 2500 P/R incremental, high-precision 17-bit incremental, and 17-bit absolute encoder.

Applications

General Automation Machinery: Assembly lines, pick-and-place systems, and indexing drives
Material Handling: Conveyor systems, palletizers, and automated storage/retrieval systems
Packaging Machinery: Wrapping, filling, and labeling equipment requiring precise torque control
Textile Machinery: Spinning, winding, and yarn tension control systems
Machine Tools: Feed axis drives for milling, turning, and grinding equipment
Robotics: Medium-sized robot arms and articulated joints
Semiconductor Equipment: Wafer handling and inspection systems
CNC Machinery: Routers, engraving machines, and plasma cutters

Replacement & Upgrade Options

Note: The MDMA102A1G has been discontinued (September 30, 2011). Panasonic recommends checking the "AC Servo Motors (Discontinued Products)" page for recommended substitutes.

Consideration	Recommendation
For New Designs	Upgrade to MINAS A6 or A7 series (23-bit/32-bit absolute encoders, EtherCAT/RTEX communication)
For Legacy System Repair	Source new old stock (NOS) or refurbished MDMA102A1G units
For Retrofit Projects	Consult Panasonic technical support for application-specific replacement guidance

Key Differences with Newer Series

A6/A7 series offer up to 27-bit/32-bit encoder resolution (vs. 2500 P/R incremental)
Enhanced vibration suppression and auto-tuning capabilities
STO (Safe Torque Off) safety function available
EtherCAT and RTEX network communication options
PANATERM software support for setup and tuning
